Symbols
Europe
The following symbols may be important for the operation of your power tool. Please take note of these symbols and their meaning. Correctly interpreting the symbols will help you to operate the power tool more effectively and safely.
Symbols and their meaning | |
|---|---|
| Class 1 |
| Keep hands away from the cutting area while the power tool is running. Contact with the saw blade can lead to injuries. |
| Wear a dust mask. |
| Wear safety goggles. |
| Wear hearing protection. Exposure to noise can cause hearing loss. |
| Danger area! Keep hands, fingers and arms away from this area. |
| The adjustable fence must be pulled outward when sawing mitre/bevel angles. |

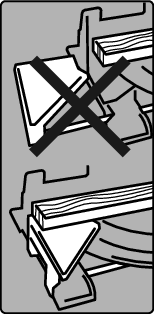

| The free end of workpieces must be supported with saw table extensions. |
|
|
Take note of the dimensions of the saw blade. The hole diameter must fit the tool spindle without play. If it is necessary to use reducers, ensure that the dimensions of the reducer are suitable for the base blade thickness and the saw blade hole diameter, as well as the tool spindle diameter. Wherever possible, use the reducers provided with the saw blade. The saw blade diameter must match the information specified on the symbol. |
| Clamping lever closed: Clamping lever open: |
Asia/Africa
The following symbols may be important for the operation of your power tool. Please take note of these symbols and their meaning. Correctly interpreting the symbols will help you to operate the power tool more effectively and safely.
Symbols and their meaning | |
|---|---|
| CLASS 1 LASER PRODUCT |
| Keep hands away from the cutting area while the power tool is running. Contact with the saw blade can lead to injuries. |
| Wear a dust mask. |
| Wear safety goggles. |
| Wear hearing protection. Exposure to noise can cause hearing loss. |
| Danger area! Keep hands, fingers and arms away from this area. |
| The adjustable fence must be pulled outward when sawing mitre/bevel angles. |
| The free end of workpieces must be supported with saw table extensions. |
|
|
Take note of the dimensions of the saw blade. The hole diameter must fit the tool spindle without play. If it is necessary to use reducers, ensure that the dimensions of the reducer are suitable for the base blade thickness and the saw blade hole diameter, as well as the tool spindle diameter. Wherever possible, use the reducers provided with the saw blade. The saw blade diameter must match the information specified on the symbol. |
| Clamping lever closed: Clamping lever open: |
