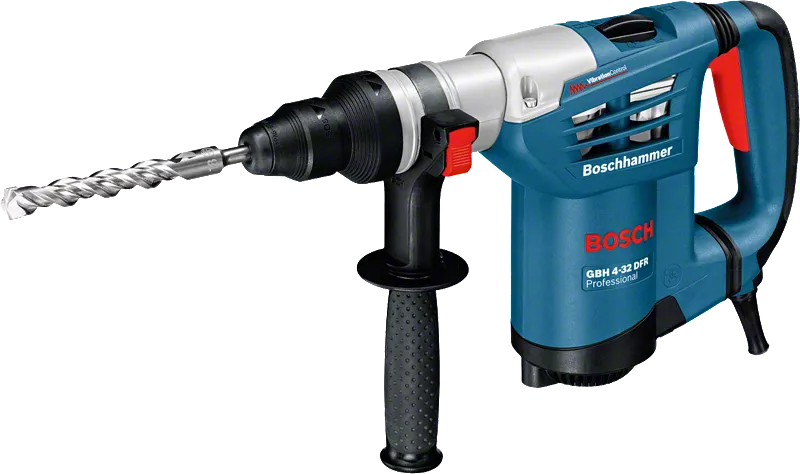

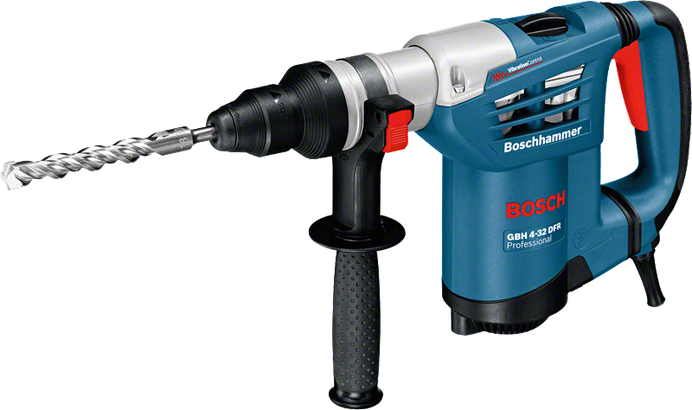

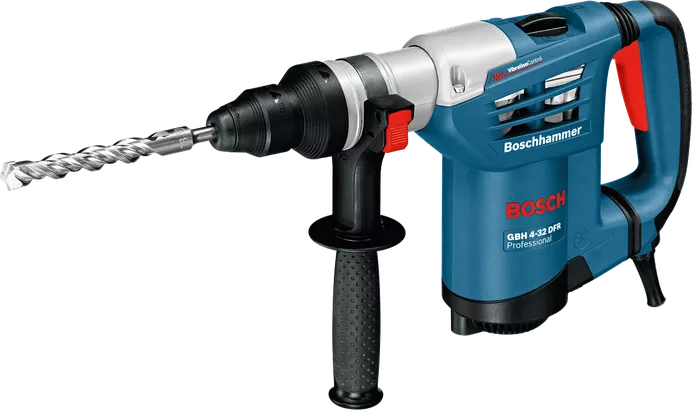

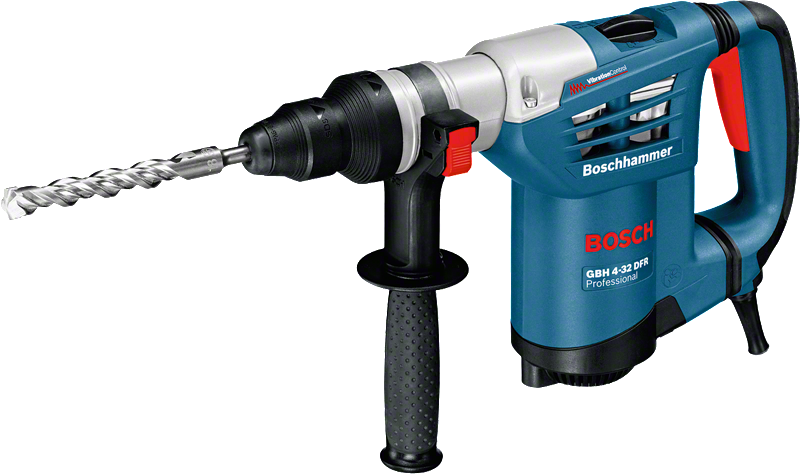

Rotary Hammer with SDS plus

GBH 4-32 DFR Professional

Technical data
Additional data
Rated input power* 900 W
Impact energy* 4,2 J
Impact rate at rated speed 0 – 3.600 bpm
Rated speed 0 – 800 rpm
Weight 4.7 kg
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 6 – 32 mm
Opt. appl. range concrete, hammer drill bits 14 – 25 mm
Max. drilling diameter masonry, core cutters 90 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 32 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 12 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 9 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 104 dB(A). Uncertainty K= 2 dB.

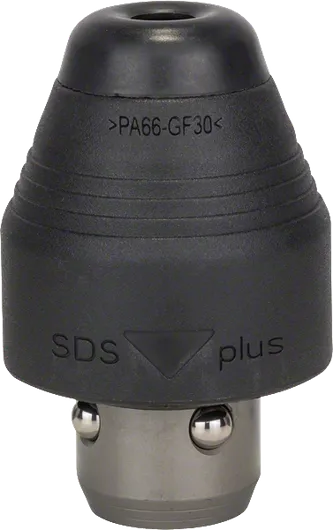

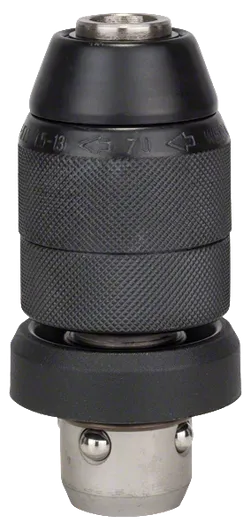

What’s Included in this Package
GBH 4-32 DFR Professional
GBH 4-32 DFR Professional
Order number: 0 611 332 1L0
Product variations (2)

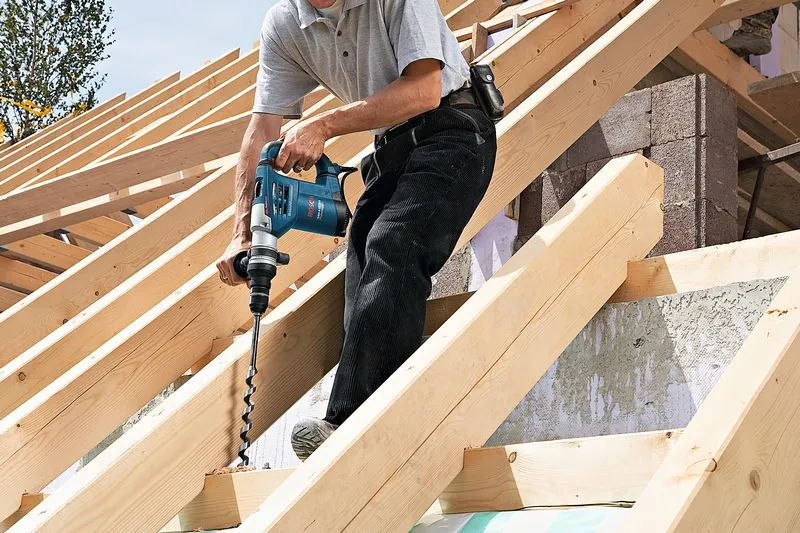

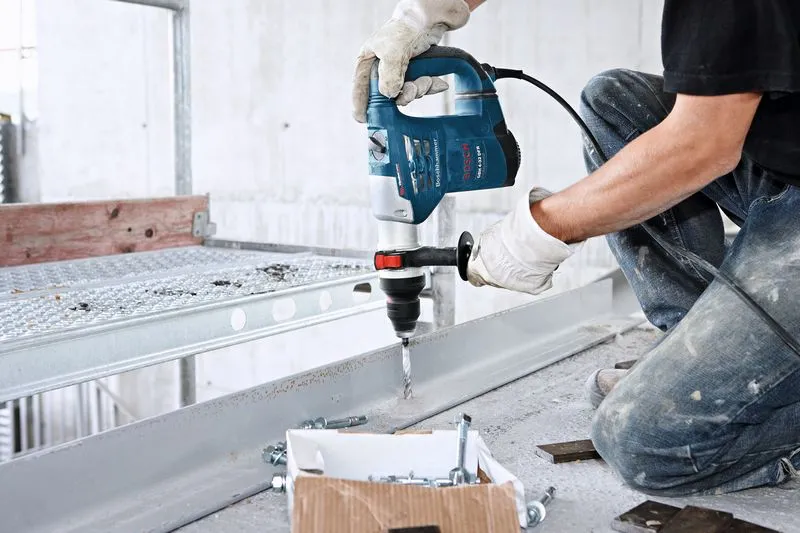

The GBH 4-32 DFR in action!
