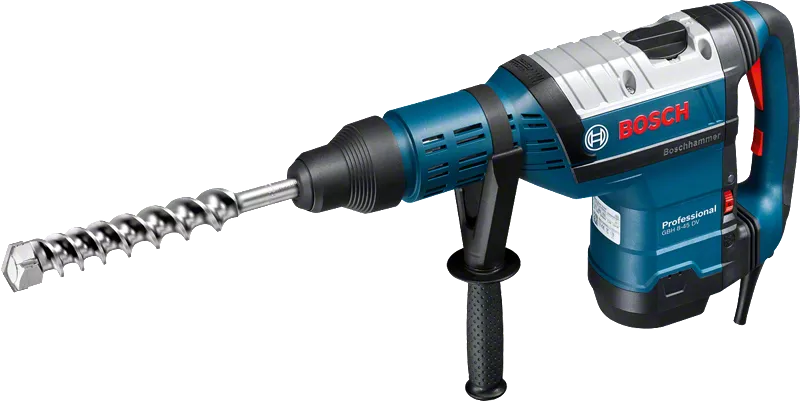

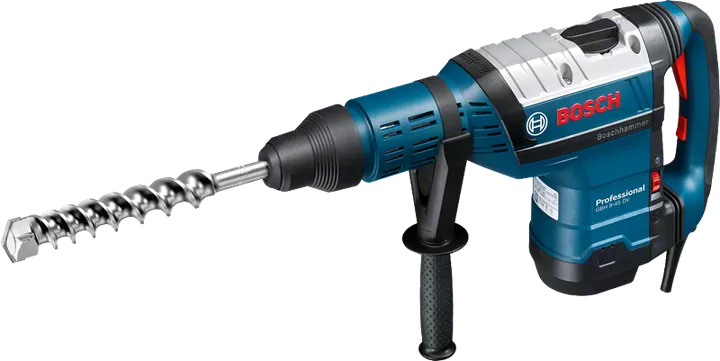

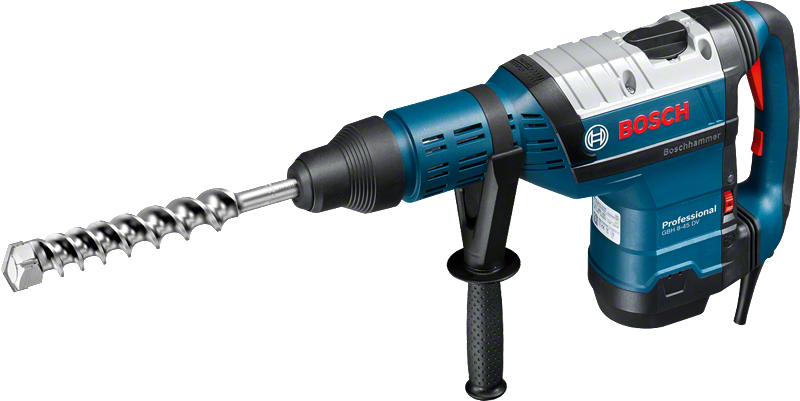

Rotary Hammer with SDS max

GBH 8-45 DV Professional

Technical data
Additional data
Rated input power* 1,500 W
Impact energy* 12,5 J
Impact rate at rated speed 1.380 – 2.760 bpm
Rated speed 0 – 305 rpm
Weight 8.9 kg

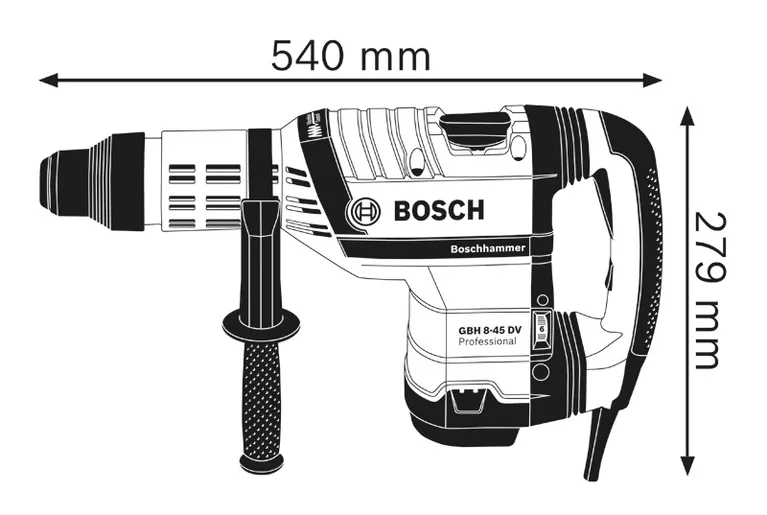

Tool dimensions (width) 116 mm
Tool dimensions (length) 540 mm
Tool dimensions (height) 310 mm
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits* 12 – 45 mm
Drilling dia. concrete, breakthrough drill bits 80 mm
Drilling diameter in concrete with core cutters 125 mm
Opt. appl. range concrete, hammer drill bits 20 – 40 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 8 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 7 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 96 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.

What’s Included in this Package
with Grease tube (spare part number 1 615 430 010)
with Grease tube (spare part number 1 615 430 010)
Order number: 0 611 265 0L0
  • Grease tube (spare part number 1 615 430 010)
  • Cleaning cloth 1 619 200 413
  • Adhesive label
  • Carrying case 1 615 438 704
  • Sticker
  • Operating instructions
Product variations (2)
The GBH 8-45 DV in action!
