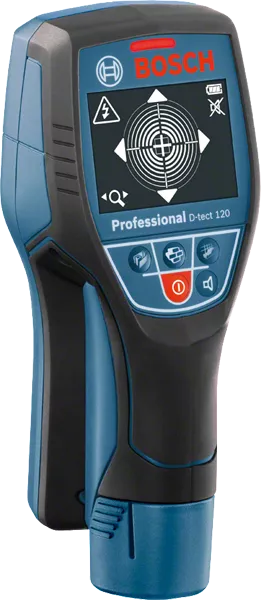

D-tect 120 Professional
Detector
Intuitive radar scanner for almost all materials
- Spot measurement provides accurate detection on narrow surfaces
- Centre finder offers visual guidance, to clearly identify the precise location of the object's centre

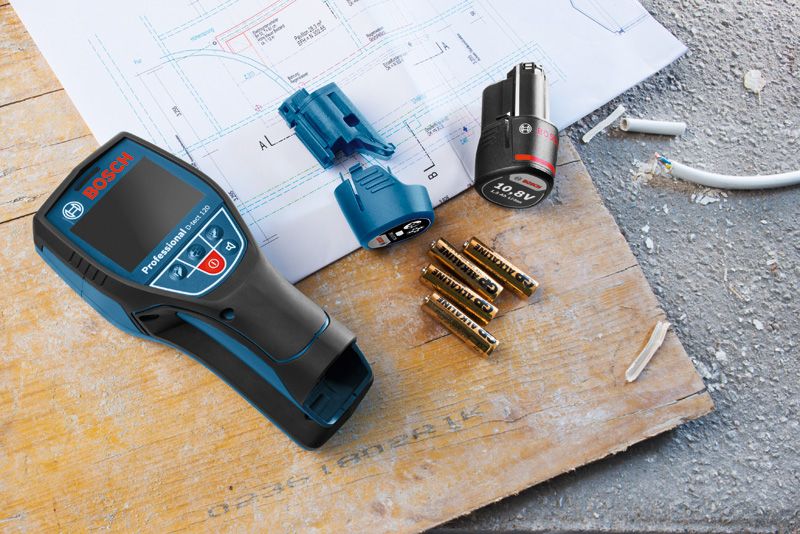

- Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries
Functions & key features
D-tect 120 Professional
Your Selection
Technical data
Additional data |
|
|---|---|
| Battery voltage | 12 |
| Bosch Radar Technology | yes |
| Max. detection depth | 120 mm |
| Detectable objects | magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures |
| Detection depth, magnetic metal, max. | 120 mm |
| Detection depth, non-magnetic metal, max. | 120 mm |
| Detection depth, live cables, max. | 60 mm |
| Detection depth, wooden substructures, max. | 38 mm |
| Accuracy | ± 10 mm* (*plus use-dependent deviation) |
| Views | Spot view |
| Wall types | Concrete, Drywall, Universal |
| Material identification | Live cable |
| Power supply | 12 V Li-ion or 4 x 1.5 V LR6 (AA) |
| Automatic deactivation, approx. | 5 minutes |
| Weight, approx. | 0.5 kg |
| Additional function | Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator |
D-tect 120 Professional: Further information
Product Highlights
The detector D-tect 120 Professional is an intuitive radar scanner developed for almost all materials. Spot measurement provides accurate detection on narrow surfaces, while the centre finder shows the precise location of an object's centre. Additionally, Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries.
Equipment & Application

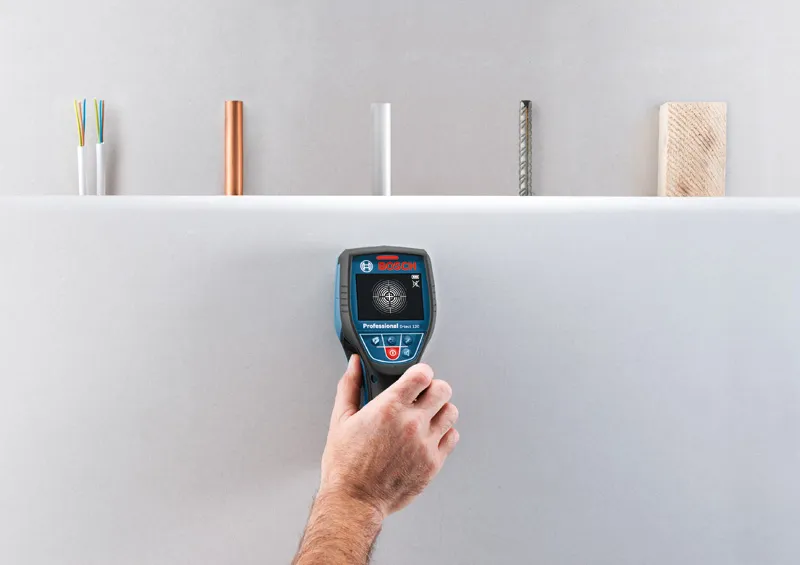

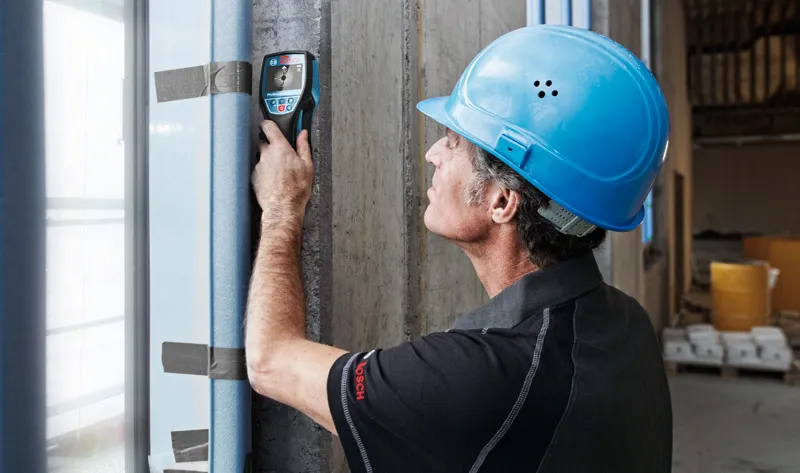

It is suitable for a range of craftsmanship disciplines to locate pipes filled with water and cables as well as to avoid drilling mishaps when performing carpentry, plumbing, electrical, and HVAC applications.
Additional Information
The D-tect 120 Professional offers a simple user interface with three self-explanatory selection buttons for adjusting to various applications and it is able to detect objects at depths of up to 12 cm. Audio and visual signals notify the user when objects are detected in the wall.
