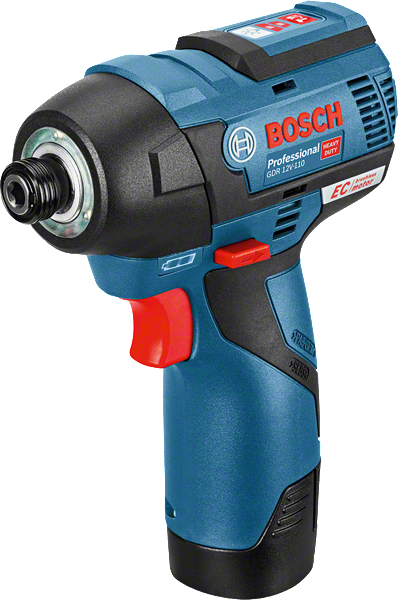

Cordless Impact Driver GDR 12 V-EC Professional

More lifetime and higher precision while being as compact as ever

Technical data
Additional data
Battery voltage* 12 V
Torque, max.* 110 Nm
No-load speed (1st level) 0-1,200 rpm
No-load speed (2nd level) 2,600 rpm
Torque settings 2
Impact rate 0-3,100 bpm
Tool holder 1/4" internal hexagon
Screw diameter
Screw diameter* M 4 – M 12
Total vibration values (Tightening screws and nuts of maximum permitted size)
Vibration emission value ah 10 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 87 dB(A); Sound power level 100 dB(A). Uncertainty K= 3 dB.

Advantages

More lifetime and higher precision while being as compact as ever

  • 100% longer lifetime due to brushless EC motor technology and an optimised impact mechanism
  • Greater accuracy when screwdriving: 2-stage PowerControl to prevent overtightening of small screws and a max. Torque of 110 Nm
  • Longer runtime due to 2.5 Ah battery packs

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Longer motor life - more runtime - more power thanks to brushless motor
High precision with torque pre-selection preventing overtightening & damaging screw heads and threads
Illuminating of the work area with bright LED light
Battery charge level indicator shows the level of remaining battery charge
Long motor lifetime Long motor lifetime because motor shuts off when overloaded, overheated or blocked
Easy and precise control of the RPM thanks to variable speed
Comfortable handling of the tool thanks to softgrip
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology
Convenient hanging of the tool
Ergonomic handling thanks to low weight and compact design
Long battery lifetime Protects the battery against overload, overheating and deep discharge
Voltage 12 Volt
10.8 & 12 Volt 100% compatible All Bosch Professional 10.8 V tools, batteries & chargers are 100% compatible with all Bosch Professional 12 V tools, batteries & chargers
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection for applications requiring material-specific speed
What’s Included in this Package
in carrying case with 2 x 2.0 Ah Li-ion battery
in carrying case with 2 x 2.0 Ah Li-ion battery
Order number: 0 601 9E0 0L2
  • Carrying case
  • 2 x 2.0 Ah Li-ion battery
  • Quick charger GAL 1230 CV 1 600 A00 R44
