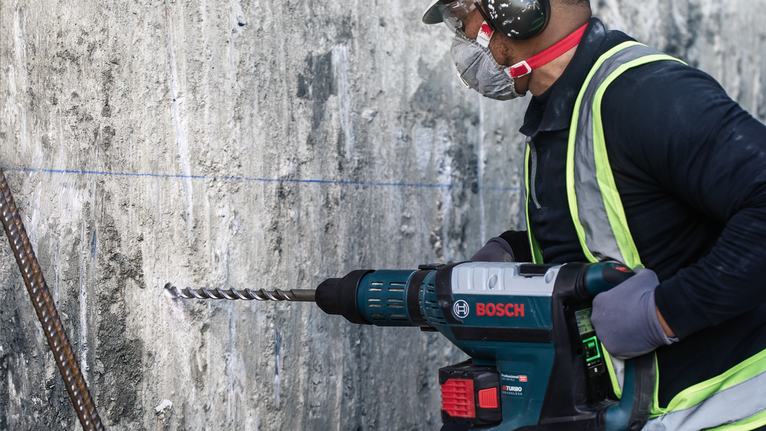

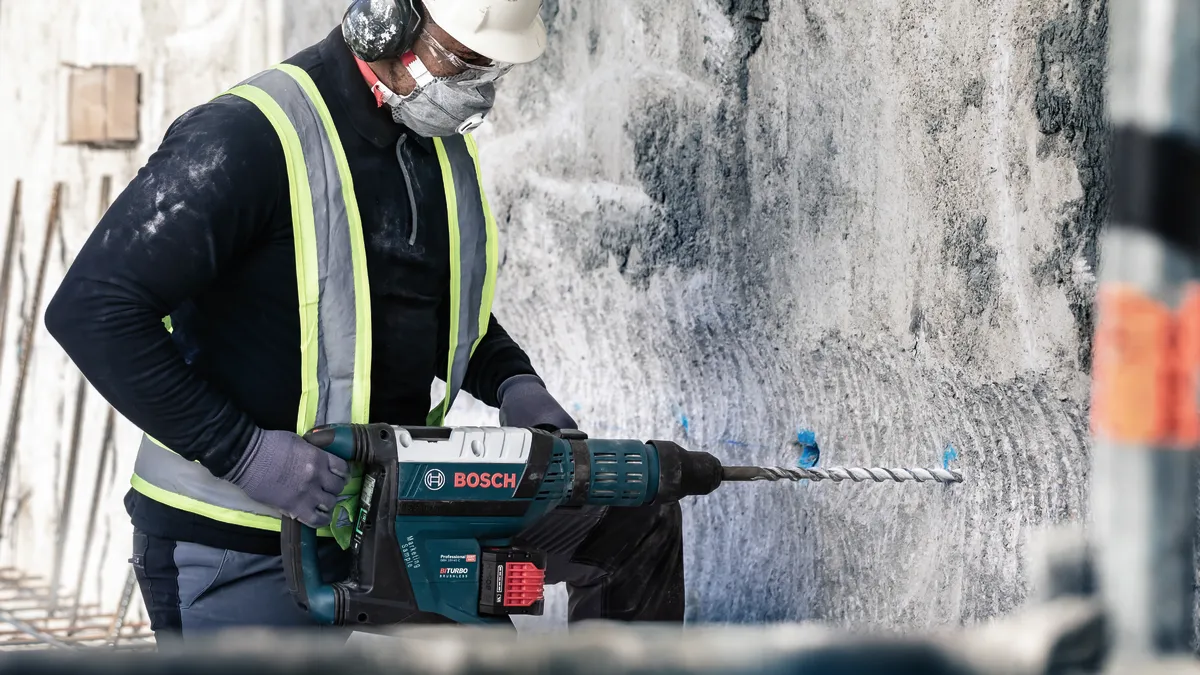

A person wearing safety equipment drills into concrete with a rotary hammer.

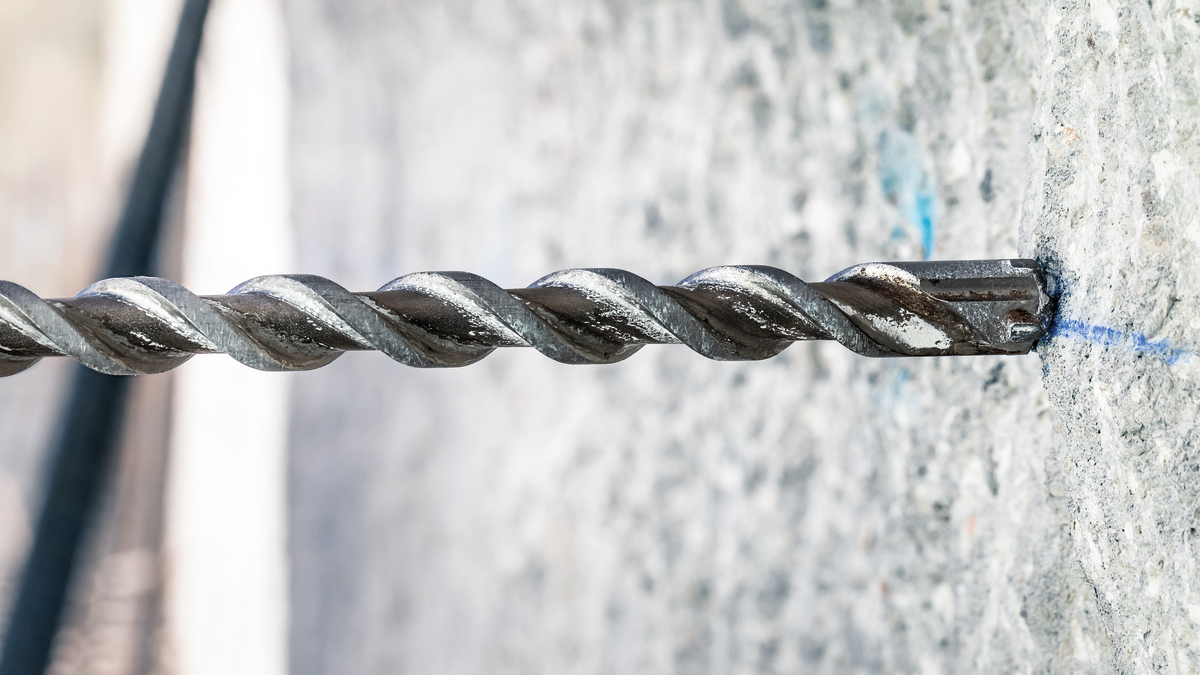

Rotary hammer drill bit making a hole in a concrete wall.
A person wearing safety equipment drills into a concrete wall with a power tool.

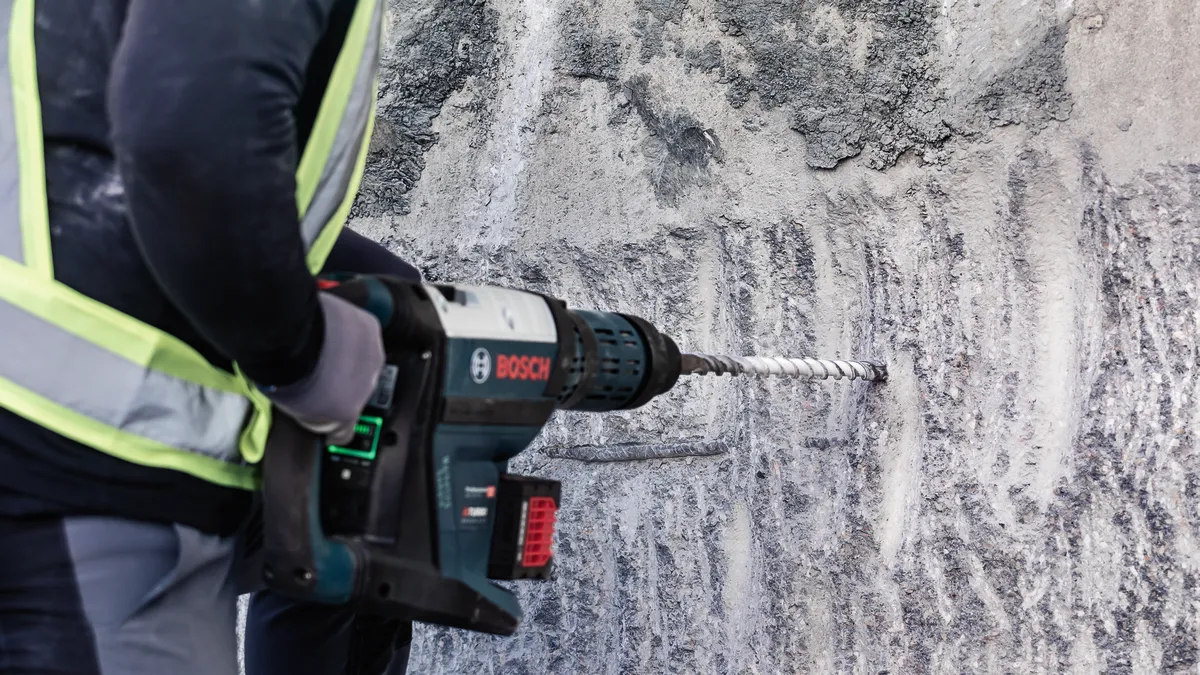

Rotary hammer drilling into a concrete wall.
A person wearing safety equipment drills into a concrete wall.

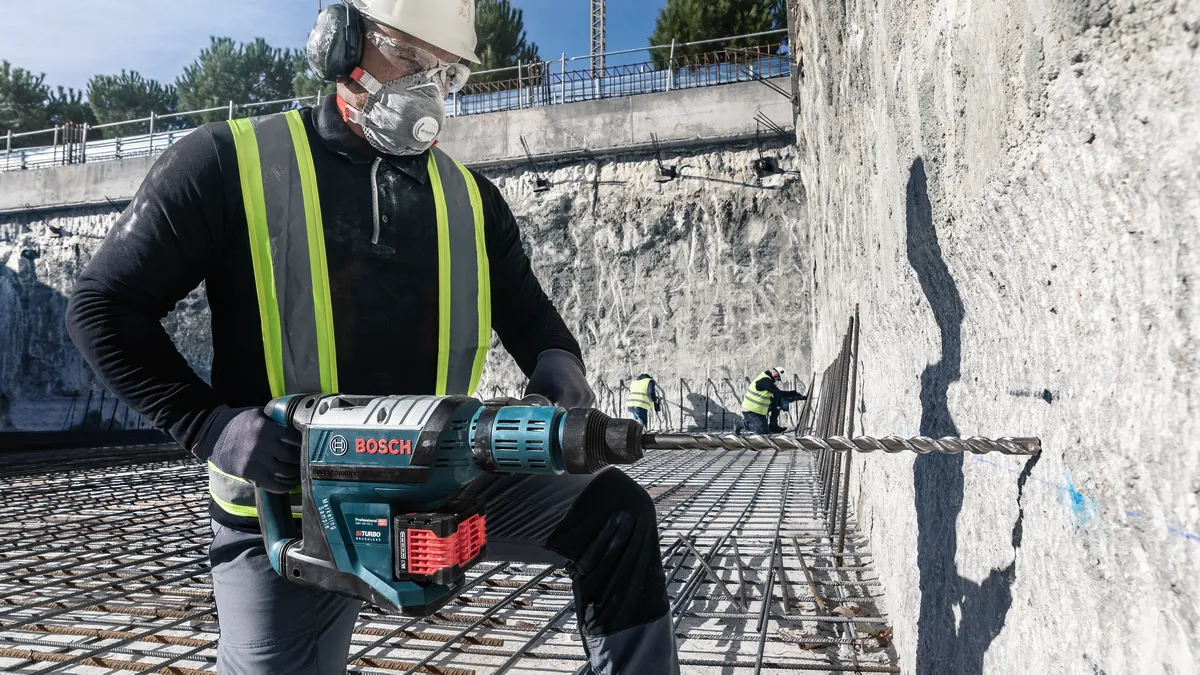

A person wearing safety equipment drills into a concrete wall at a construction site.
Bosch PRO SDS max-4 Hammer Drill Bit 20x400x520 mm.
Bosch PRO SDS max-4 20×400×520 mm hammer drill bit.
A person wearing safety equipment drills into concrete with a rotary hammer.

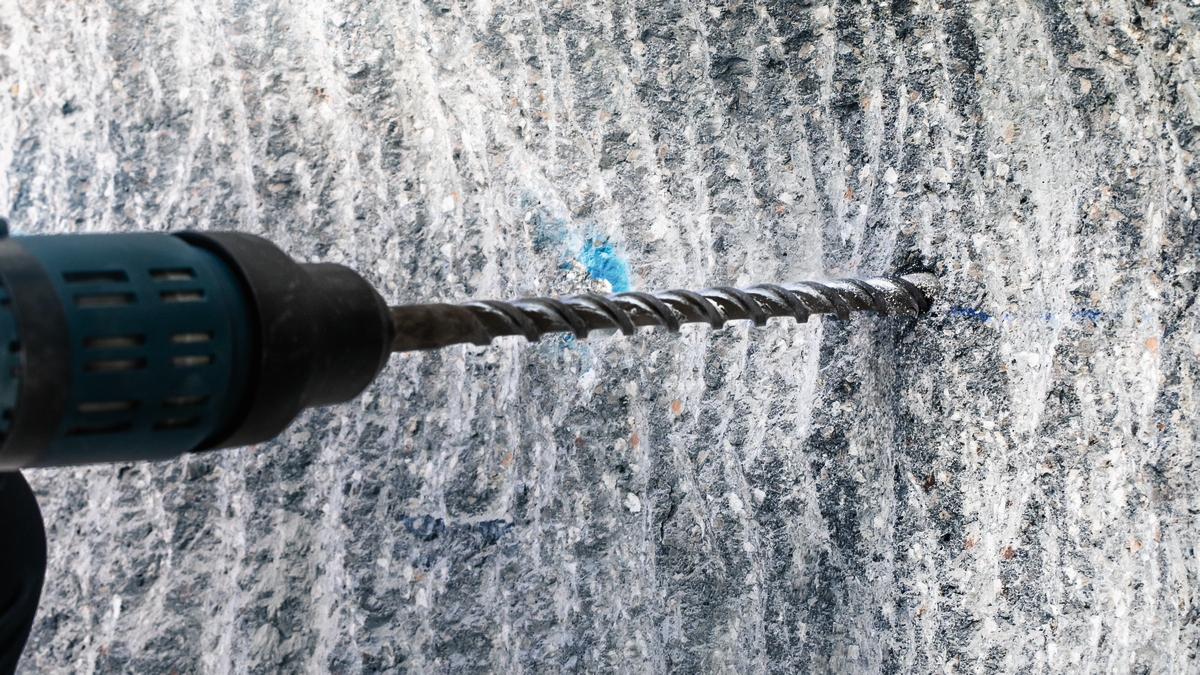

Rotary hammer drill bit making a hole in a concrete wall.
A person wearing safety equipment drills into a concrete wall with a power tool.
Rotary hammer drilling into a concrete wall.
A person wearing safety equipment drills into a concrete wall.
A person wearing safety equipment drills into a concrete wall at a construction site.
PRO SDS max-4

PRO SDS max-4 Hammer Drill Bit

For rotary hammer drills

Long life 1.5x.

Lasts up to 1.5x longer than a Bosch SDS max-2 Drill Bit

Test results
  • Long Life drilling in reinforced concrete
  • High-quality, tough tungsten carbide ensures strength and durability
  • 4-cutter head doesn't jam or break when you hit rebar
  • Deep channels remove dust effectively
  • Fits all SDS max rotary hammers
View more View less

Materials

Reinforced concrete.
Concrete building block.
Lime sand brick.
Solid brick.

Select options

Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 14 options

Working length mm 2 options

Total length mm 4 options

Choose a pack size 1 Pcs

Available product options (24)

from

206.00 MYR

Recommended retail price excluding VAT

PRO SDS max-4 Hammer Drill Bit

from

206.00 MYR

Recommended retail price excluding VAT

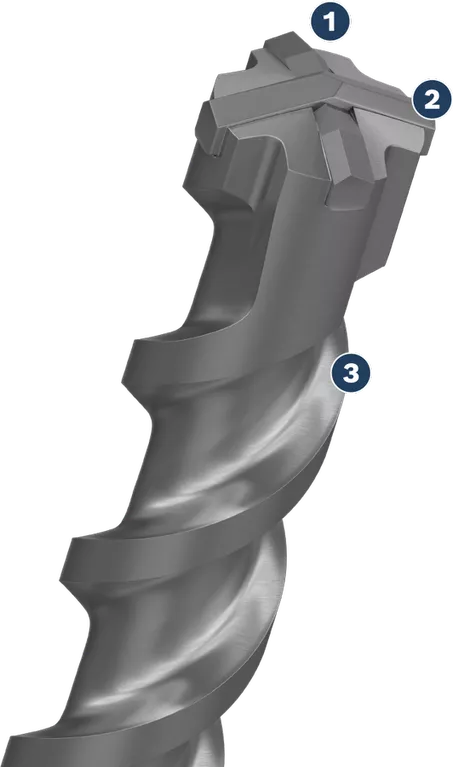

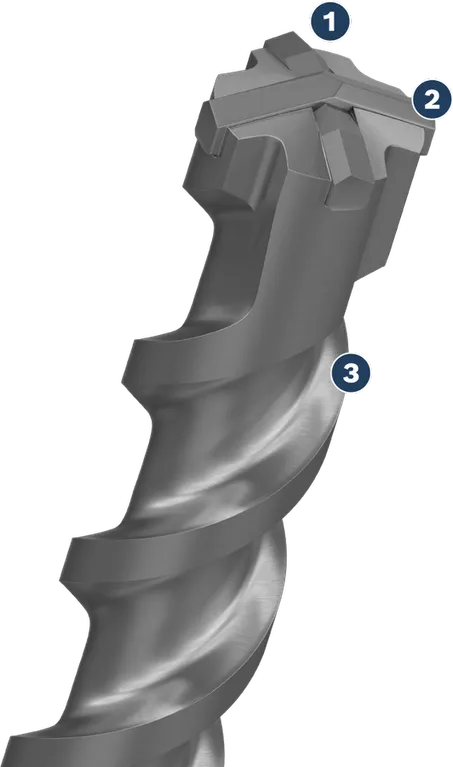

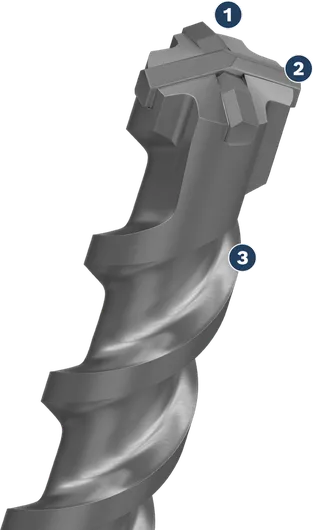

Long Life drilling in reinforced concrete

Bosch SDS plus-7X drill bit with carbide tip.
  • 1

    High-quality, tough tungsten carbide ensures strength and durability

  • 2

    4-cutter head doesn't jam or break when you hit rebar

  • 3

    Deep channels remove dust effectively

Advantage

PRO SDS max-4 Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

PRO SDS max-4 Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

Reinforced concrete is a common material in infrastructure, commercial, and domestic construction. We made PRO SDS max-4 Hammer Drill Bits to help construction workers drill in it. The drill bits have a hardy 4-cutter design that prevents them from jamming or breaking when you hit rebar.

View more

Product Options

Available product options: 24

Expand Part number Diameter (D) mm Working length mm Total length mm Pack quantity Price Availability
2 608 706 774 12.00 200 340 1 Pcs Find a local dealer
2 608 706 775 12.00 400 540 1 Pcs Find a local dealer
2 608 706 776 14.00 200 340 1 Pcs Find a local dealer
2 608 706 777 14.00 400 540 1 Pcs Find a local dealer
2 608 706 778 16.00 200 340 1 Pcs 206.00 MYR Find a local dealer
2 608 706 779 16.00 400 540 1 Pcs 241.50 MYR Find a local dealer
2 608 706 780 18.00 200 340 1 Pcs 215.00 MYR Find a local dealer
2 608 706 781 18.00 400 540 1 Pcs 255.00 MYR Find a local dealer
2 608 706 783 20.00 200 320 1 Pcs 223.50 MYR Find a local dealer
2 608 706 784 20.00 400 520 1 Pcs 258.50 MYR Find a local dealer
2 608 706 786 22.00 200 320 1 Pcs 243.00 MYR Find a local dealer
2 608 706 787 22.00 400 520 1 Pcs 274.00 MYR Find a local dealer
2 608 706 791 25.00 200 320 1 Pcs 260.00 MYR Find a local dealer
2 608 706 792 25.00 400 520 1 Pcs 306.00 MYR Find a local dealer
2 608 706 794 26.00 400 520 1 Pcs Find a local dealer
2 608 706 795 28.00 200 320 1 Pcs 300.50 MYR Find a local dealer
2 608 706 796 28.00 400 520 1 Pcs 345.50 MYR Find a local dealer
2 608 706 798 30.00 200 320 1 Pcs 309.50 MYR Find a local dealer
2 608 706 799 30.00 400 520 1 Pcs 373.50 MYR Find a local dealer
2 608 706 800 32.00 200 320 1 Pcs 342.00 MYR Find a local dealer
2 608 706 801 32.00 400 520 1 Pcs 404.00 MYR Find a local dealer
2 608 706 803 35.00 400 520 1 Pcs 448.50 MYR Find a local dealer
2 608 706 805 38.00 400 520 1 Pcs Find a local dealer
2 608 706 806 40.00 400 520 1 Pcs 646.50 MYR Find a local dealer
