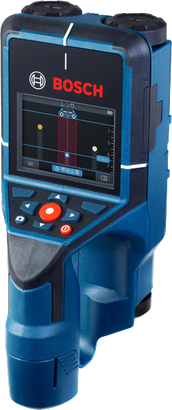

D-tect 200 C Professional

Detector

Order number 0.601.081.6K0

  • More depth for better safety - Increased maximum detection depth to 200mm with object depth indication

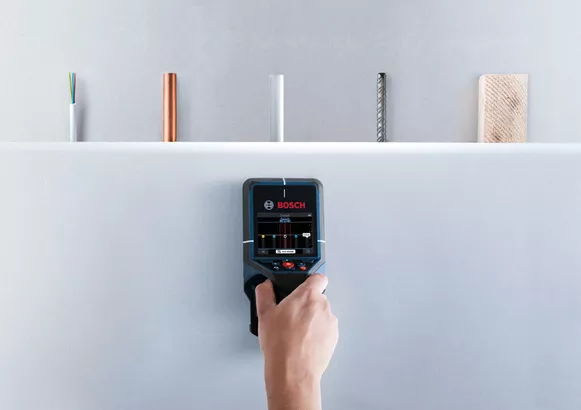

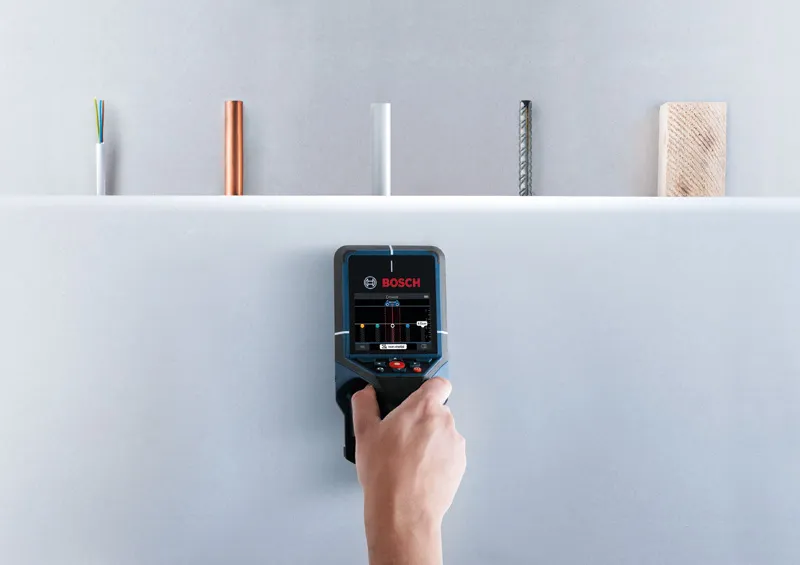

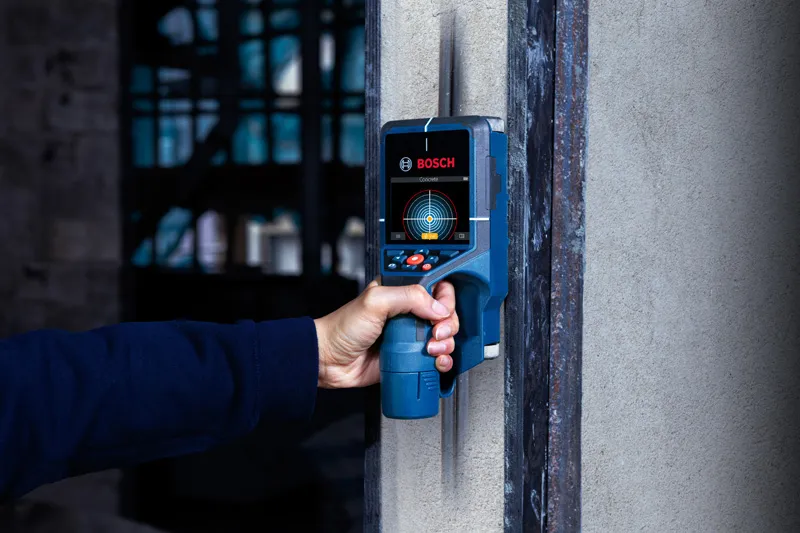

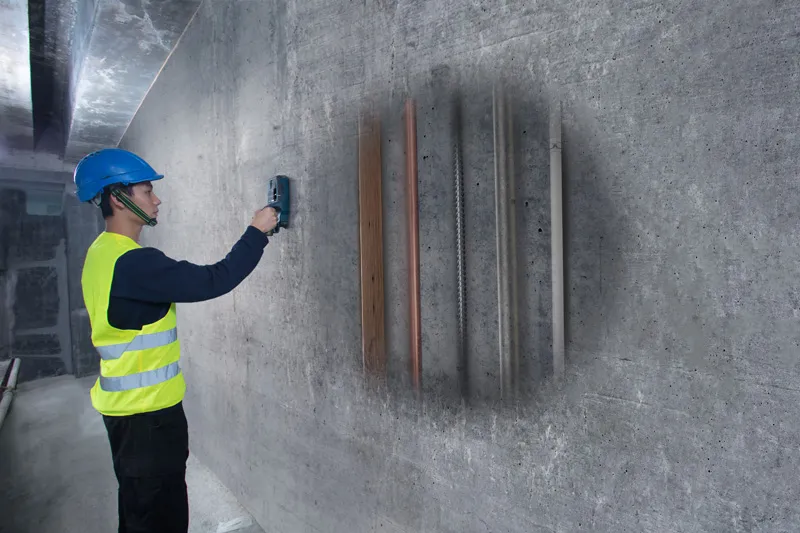

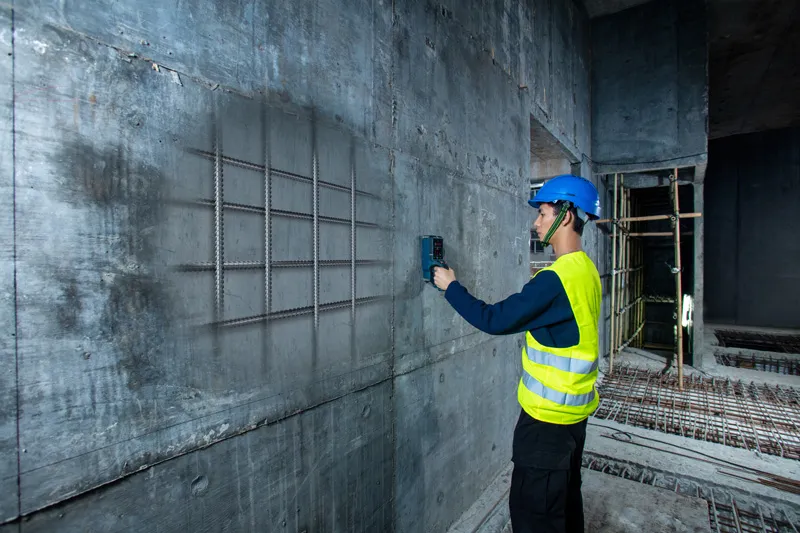

  • All-round detection - Detection of all common objects, even in narrow spots with the unique spot mode

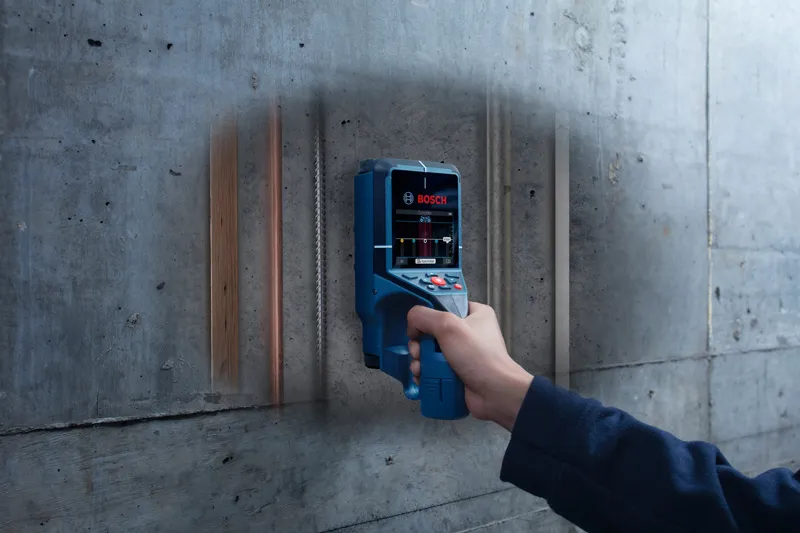

  • See the unseen - Clear visualisation of detected objects including the new leakage detection function through the intuitive HMI
View more
12V system

in cardboard box with 4 x battery (AA), adapter 0 601 081 6K0

D-tect 200 C Professional

Your Selection

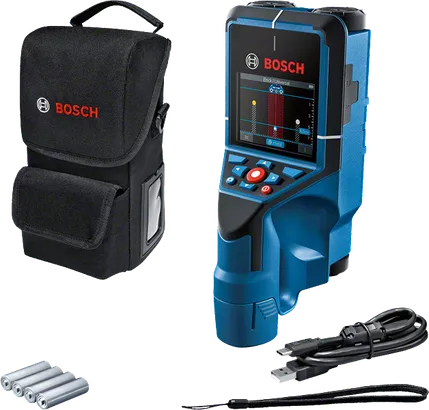

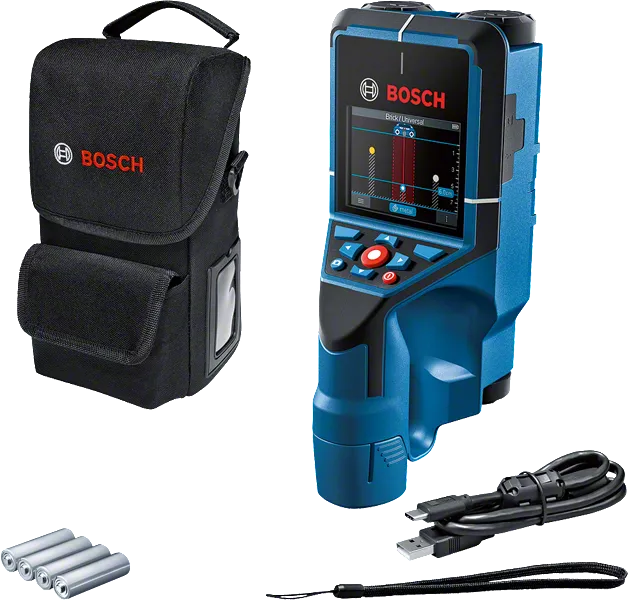

Bosch D-Tect 200 C wall scanner with case and accessories.

New

in cardboard box with 4 x battery (AA), adapter

Order number: 0 601 081 6K0

Find a local dealer

Included in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • Hand strap (spare part number 1 609 203 R97)
  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Cardboard box
  • USB-C® Cable
    Order number: 1 600 A01 L6H

Technical data

Additional data

Dust and splash protection
IP 5X
Bosch Radar Technology
yes
Max. detection depth
200 mm
Detectable objects
magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage & data cables (Three-phase power cables, cavities), non-live cables, wooden substructures, water-filled plastic pipes, Empty plastic pipes
Detection depth, dry concrete, max.
200 mm
Detection depth, early age concrete, max.
60 mm
Detection depth, other wall types, max.
80 mm
Detection depth, magnetic metal, max.
200 mm
Detection depth, non-magnetic metal, max.
80 mm
Detection depth, live cables, max.
80 mm
Detection depth, wooden substructures, max.
38 mm
Accuracy
±5 mm
Views
Object view, Spot view, Signal View, Signal View 2D
Wall types
Concrete, Early age concrete, Drywall, Brick/Universal, Horizontal coring brick, Vertical coring brick, Panel Heating
Documentation via
USB-C, SD-Card
Updatable
yes
Material identification
Magnetic metal, Non-magnetic metal, Non-metal material, Live cable
Power supply
12 V Li-Ion battery, 10.8 V-LI ION battery, 4 x 1.5 V LR6 (AA)
Weight, approx.
0.64 kg
Additional function
Leakage detection, distance measurement

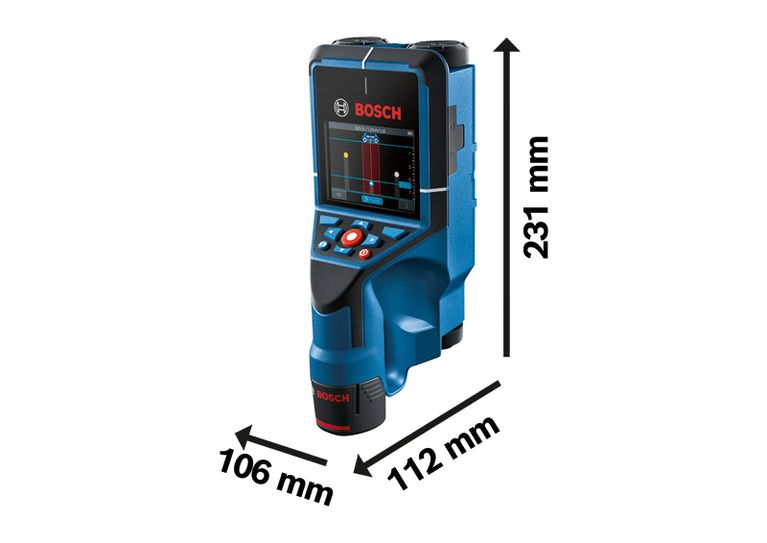

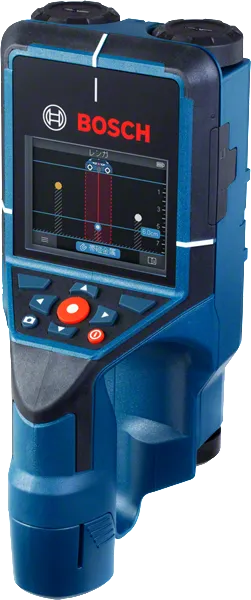

Bosch D-tect 200 C wall scanner with display and dimensions.

* You can find more information about the deviations in the following link: Technical features of products

D-tect 200 C Professional: Further information

Product Highlights

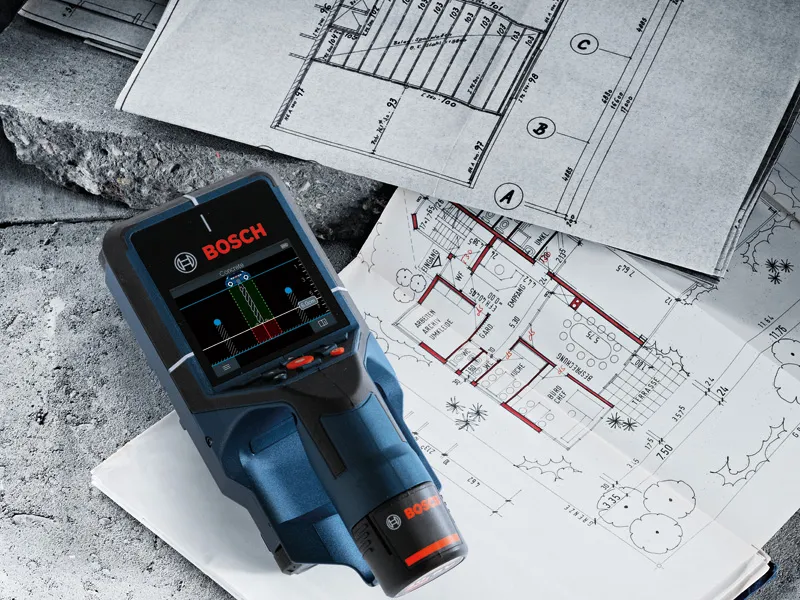

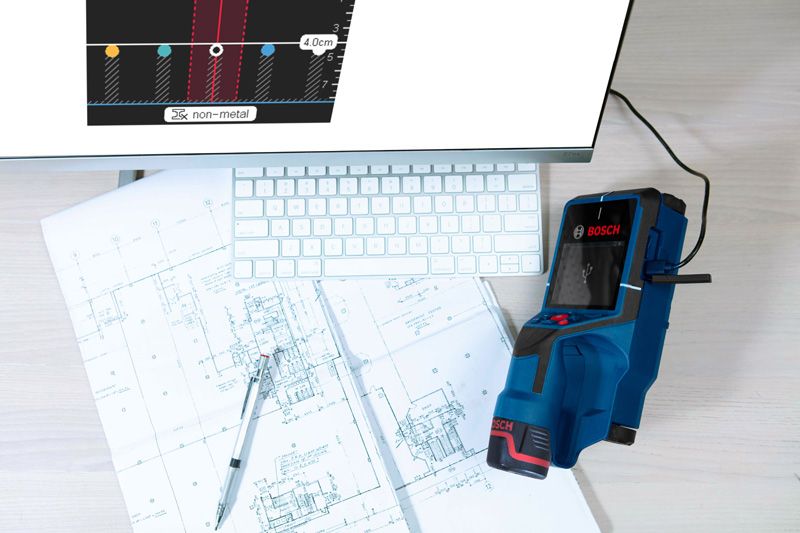

The D-tect 200 Professional detects all common objects and illustrates them clearly while making documentation easy. Equipped with Bosch Radar Technology and an improved HMI, it stands for safer and more precise detection. Multiple view options allow the ideal application for different situations, such as Spot View, that makes detection in hard-to-reach locations easier. The detector enables instant documentation which allows data to be transferred via USB-C or MicroSD-Card connection.

Equipment & Application

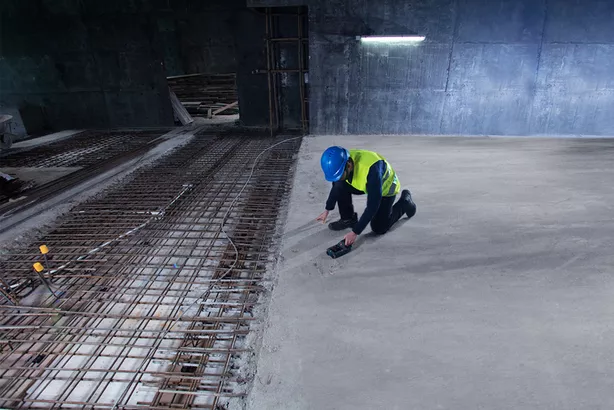

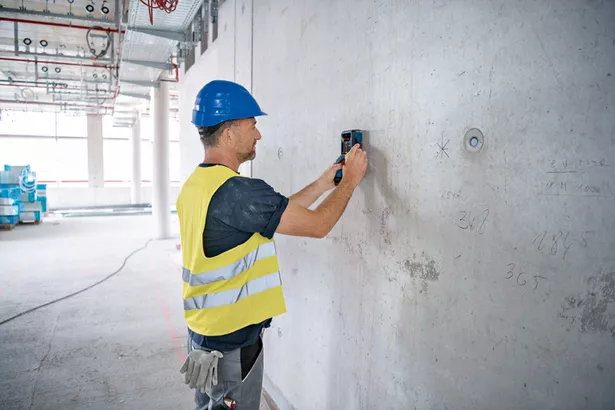

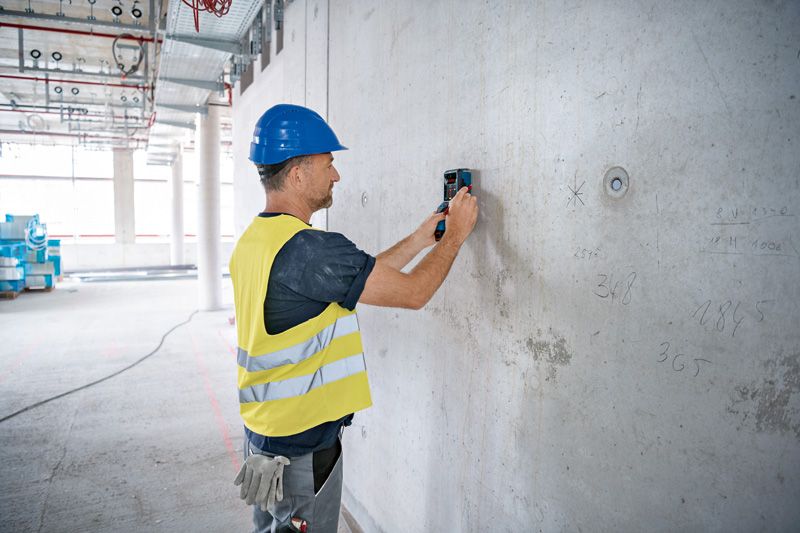

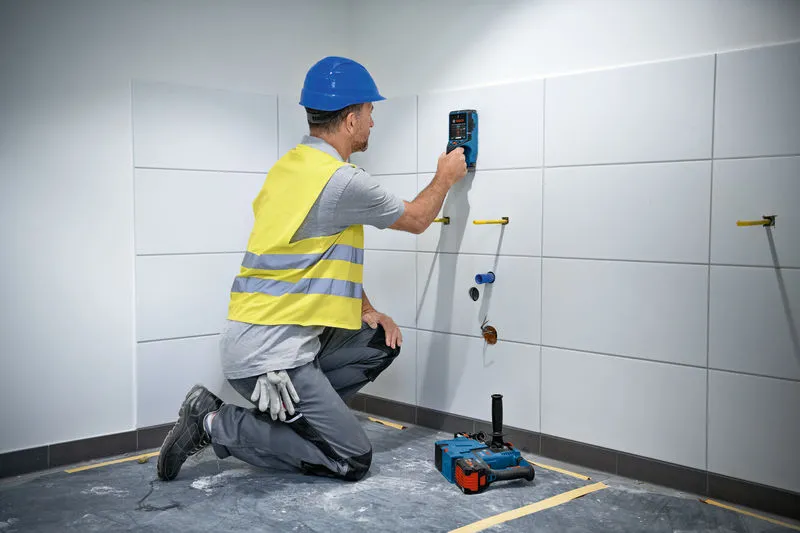

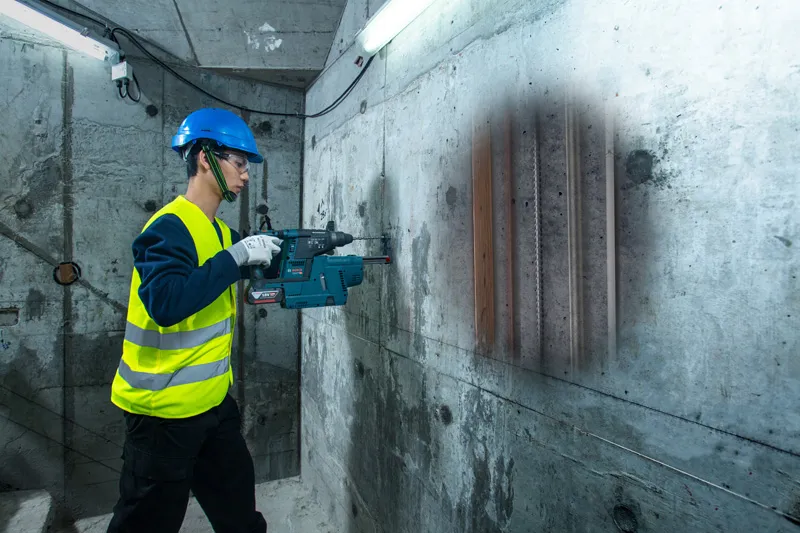

The D-tect 200 Professional supports all round detection, enabling safer construction work during drilling.

Additional Information

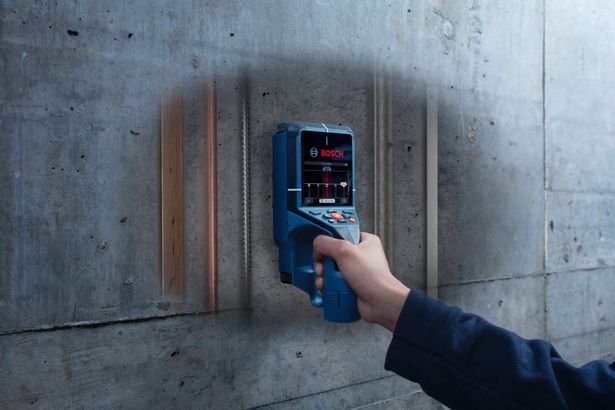

The D-tect 200 Professional detects objects in depths of up to 200 mm and indicates the object´s depth.
