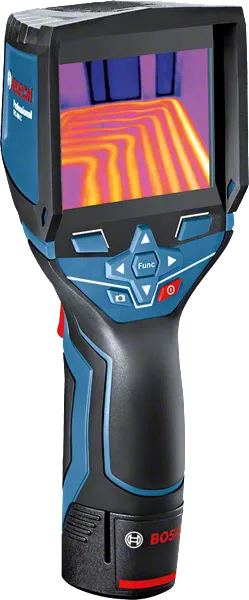

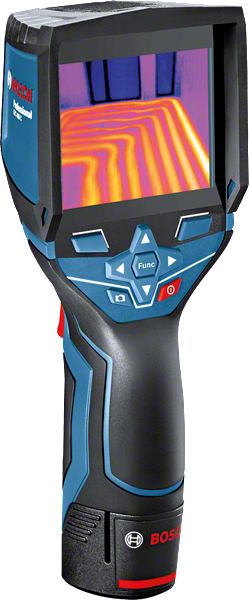

GTC 400 C Professional

Name: GTC 400 C
Brand: Bosch power tools
SKU: 0601083150
Price: 6299.0 n/a
Availability: InStock

Thermo Camera

Heat vision camera with integrated visualization of temperature differences

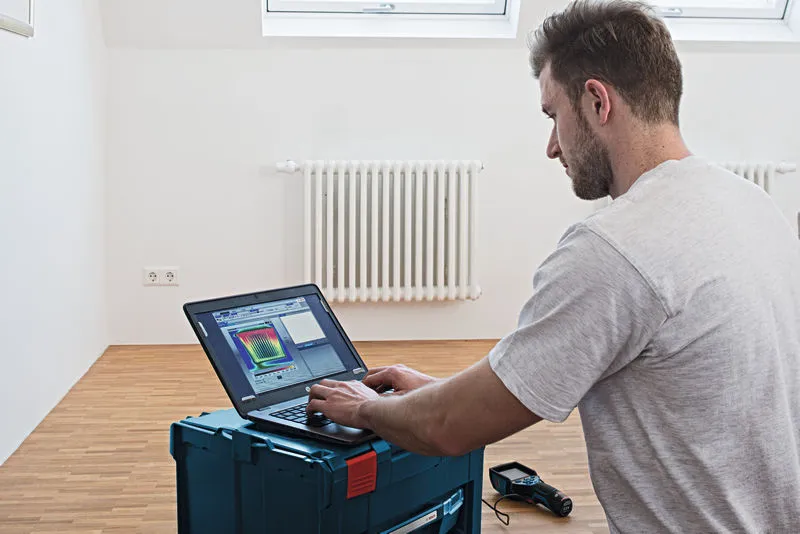

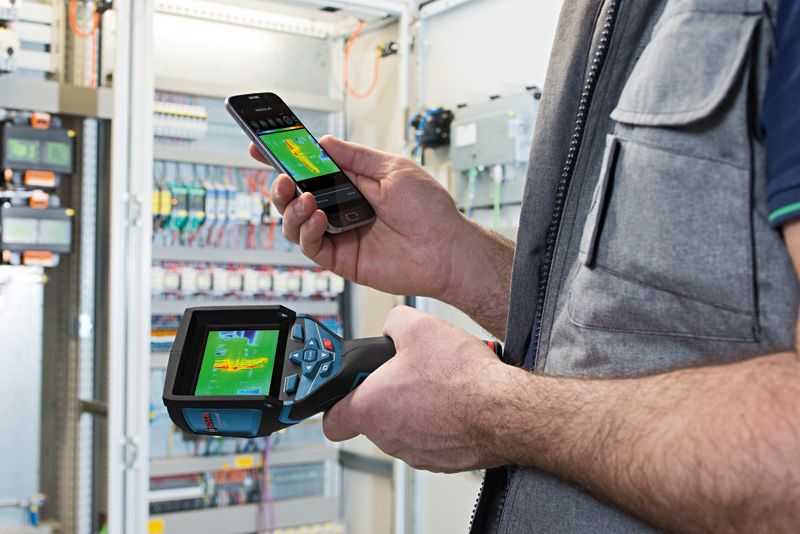

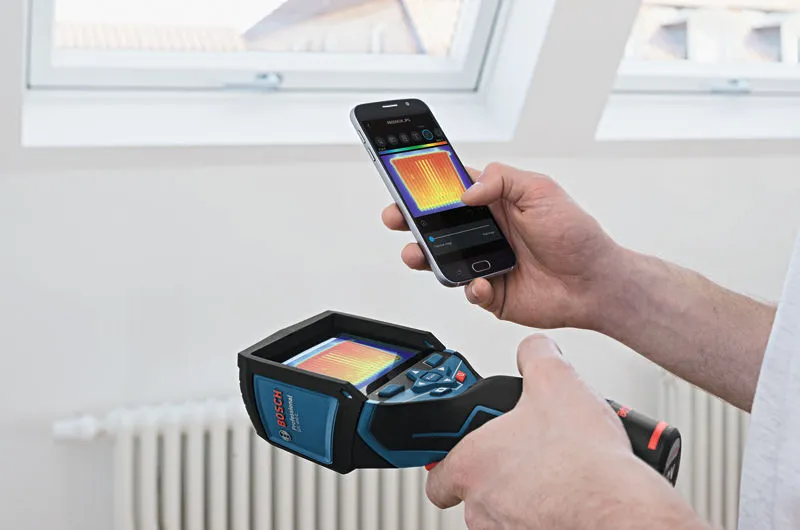

Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Functions & key features

Your Selection

with 4 x battery (AA), adapter

Show variant

6,299.00 MYR

Recommended retail price excluding VAT

Check availability on location

Find a local dealer

Your Selected Variant

with 4 x battery (AA), adapter 0 601 083 150

6,299.00 MYR

Recommended retail price excluding VAT

Find a local dealer

GTC 400 C Professional

Your Selection

with 4 x battery (AA), adapter

Order number: 0 601 083 150

6,299.00 MYR

Recommended retail price excluding VAT

Find a local dealer

Included in this variant

AA1 alkaline battery adapter

Order number: 1 608 M00 C1B
Micro USB cable

Order number: 2 609 120 670
Protective Bag
Hand strap
4 x 1.5 V LR6 battery (AA)

Your selection

Technical data

Additional data

Battery voltage

12.0 V

Measurement range

-10 °C to +400 °C

Measuring accuracy of IR

± 3.0 °Cᵇ

Measuring application

Thermal image

Data transfer

MicroUSB, Wi-Fi

Thermal sensitivity (NETD)

<50 mK

Size of IR sensor

160 Pixel x 120 Pixel

Resolution

0.1 °C

Number of measuring points

19,200

Field of view (FOV)

53x43 °

Power supply and runtime

4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V

Frame buffer (number of images)

500

Memory type

Internal memory

File format of image

.jpg

Dust and splash protection

IP 53

Weight

0.54 kg

Size of display

3,5"

Operating temperature

-10 – 45 °C

Storage temperature

-20 – 70 °C

Focus distance, minimum

0.3 m

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵇ At >10°C, <100°C, for other surface temperatures, see User Manual

GTC 400 C Professional: Further information

Product Highlights

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

Equipment & Application

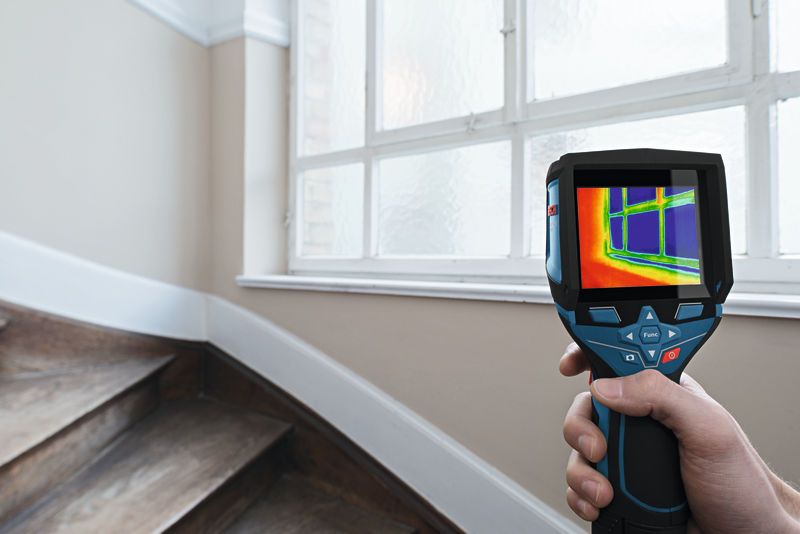

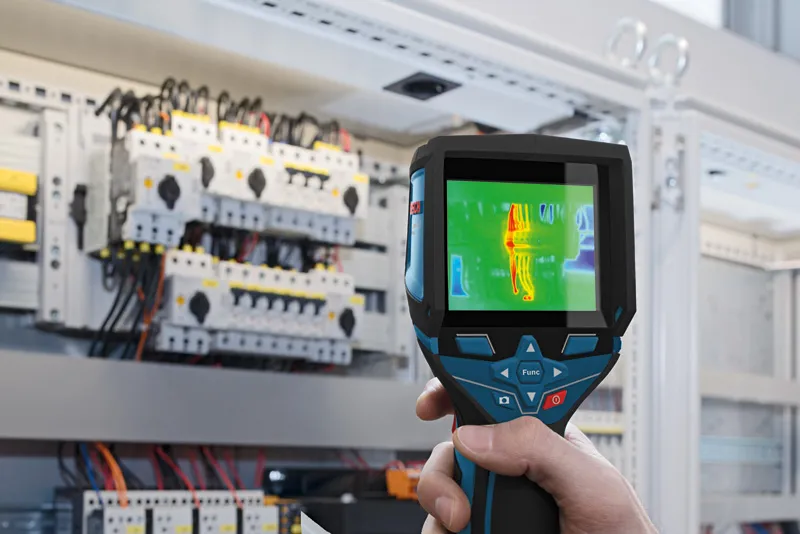

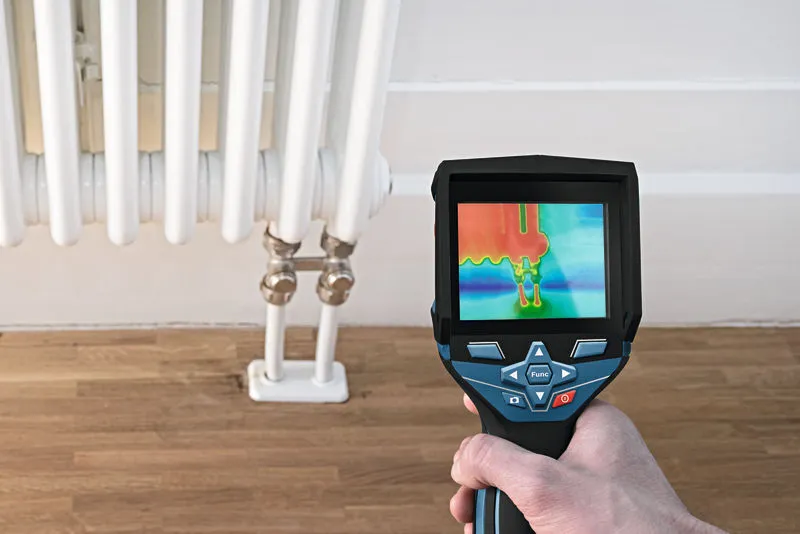

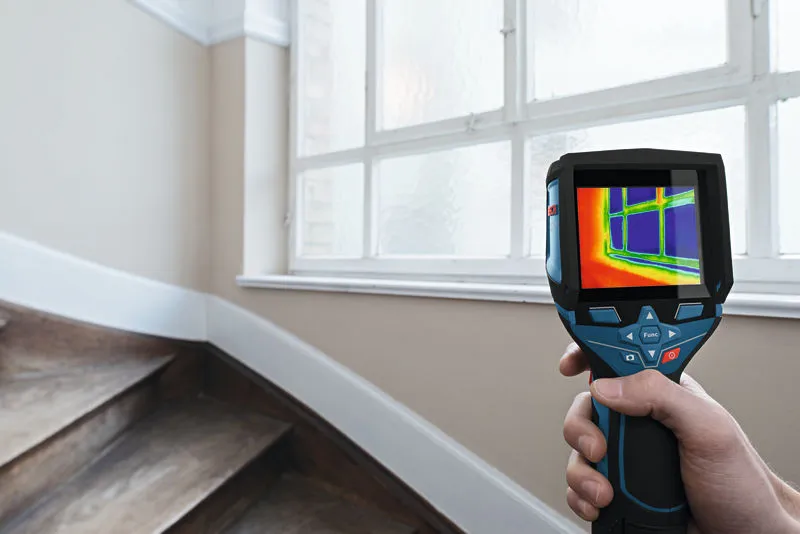

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Additional Information

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
