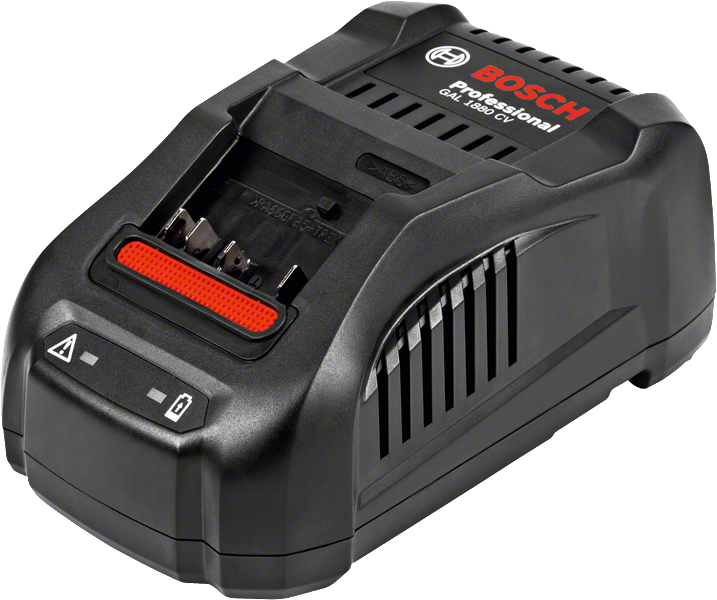

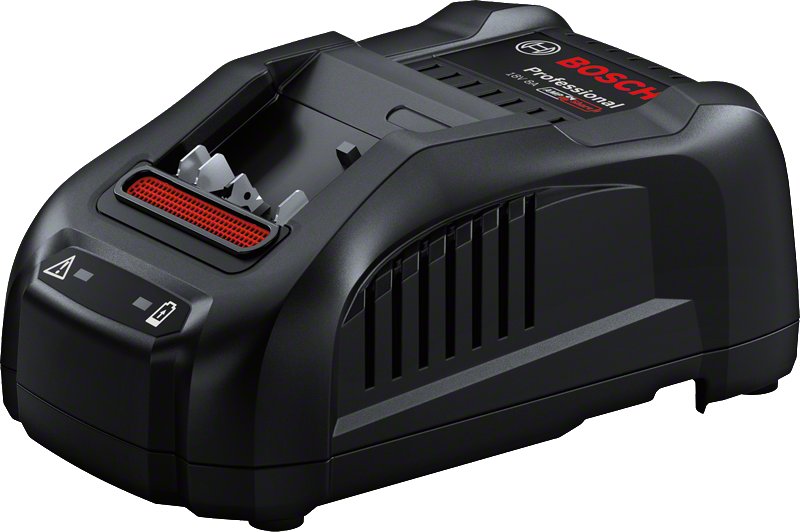

Charger GAL 1880 CV Professional

The multi-volt quick charger for all Li-ion batteries from 14.4 – 18 volts

Technical data
Additional data
Battery charging voltage 14.4 – 18   V
Charge current 8   A
Weight 700   g

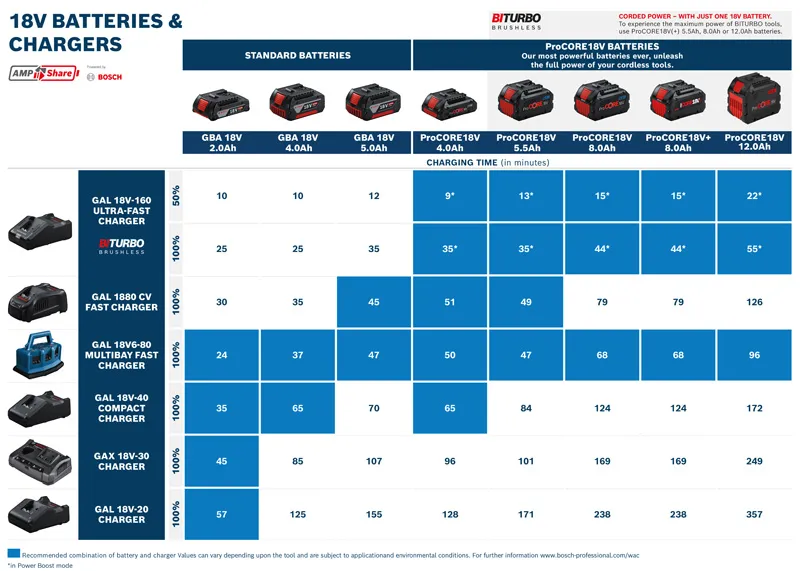

Charg. time at bat. cap. 1.5 Ah (80%/100%) approx. 10/25   min
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx. 15/30   min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx. 20/35   min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx. 25/35   min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx. 35/45   min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx. 35/55   min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx. 41/55   min

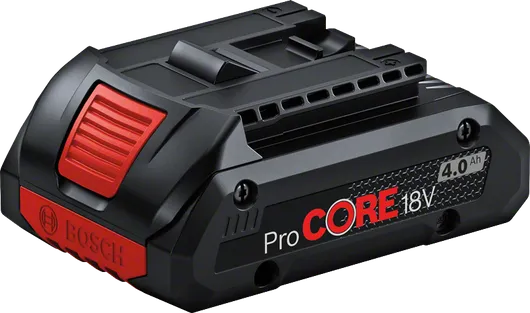

Charg. time ProCORE18V 4.0 Ah (80%/100%) approx. 32/51   min

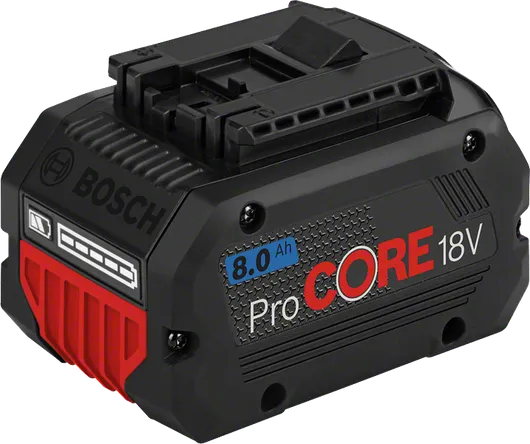

Charg. time ProCORE18V 8.0 Ah (80%/100%) approx. 68/79   min

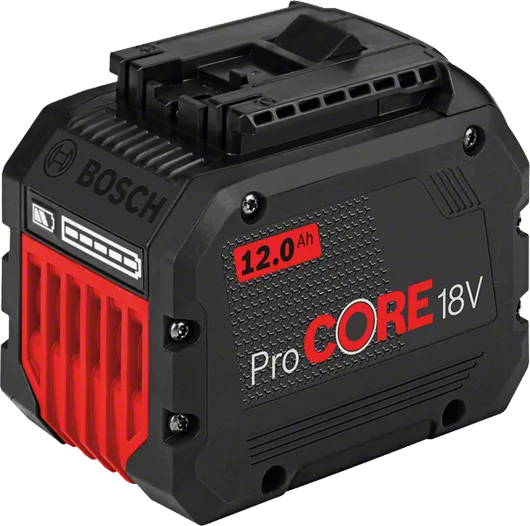

Charg. time ProCORE18V 12.0 Ah (80%/100%) approx. 113/126   min

Advantages

The multi-volt quick charger for all Li-ion batteries from 14.4 – 18 volts

  • Quick-charge mode: 4.0 Ah battery is ready to use with 80% of its capacity after only 25 mins
  • Active Air Cooling for longer lifetime of the batteries

Functions

 Compatible since 2008: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
Charging current 8.0 A
Faster charging thanks to active air cooling
User-friendly thanks to cable winding function
5.0 Ah battery 80% charged after 35 minutes with GAL 1880 CV
Icon
4.0 Ah battery 80% charged after 25 minutes with GAL 1880 CV
Icon
Icon
Icon
What’s Included in this Package
in cardboard box
in cardboard box
Order number: 1 600 A00 B8H
  • Cardboard box
  • Quick charger GAL 1880 CV 1 600 A00 B8H
The GAL 1880 CV in action!
