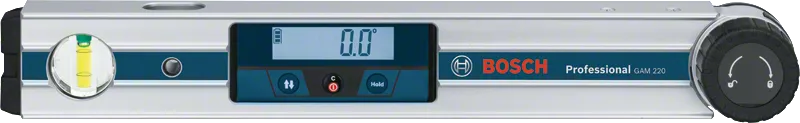

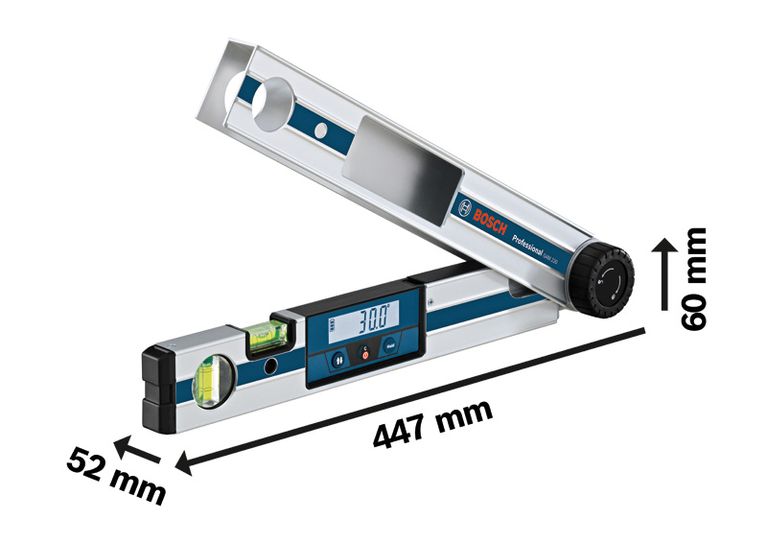

Angle Measurer GAM 220 Professional

Precise and easy angle measurement

Technical data

Additional data
Measurement range*	0 – 220°
Arm length*	40 cm
Measurement accuracy, angles*	± 0.1°
Measurement accuracy, vials	± 0.05°
Accuracy of angle calculation	± 0.1°
Power supply	4 x 1.5 V LR6 (AA)
Battery power, approx.	80 h
Automatic deactivation, approx.	30 min
Weight, approx.	1.3 kg

* Highlighted Data

Advantages

Precise and easy angle measurement

Fast and precise calculation of angles
Angles can be transferred precisely onto workpieces by means of a mechanical locking screw

Functions

Measuring accuracy of angles ± 0.1° Measuring accuracy ± 0.1°

Measuring range of angles 0°–220° Angle measuring range 0°-220°

Lock Function GAM Lock function for locking the angle measurer at a certain angle

Hold Hold function for intermediate storage of measured values

IP protection 54 Dust and splash protection IP54

Flip Display Rotating readout on display

What’s Included in this Package

with 4 x battery (AA)

Order number: 0 601 076 500

4 x 1.5 V LR6 battery (AA)

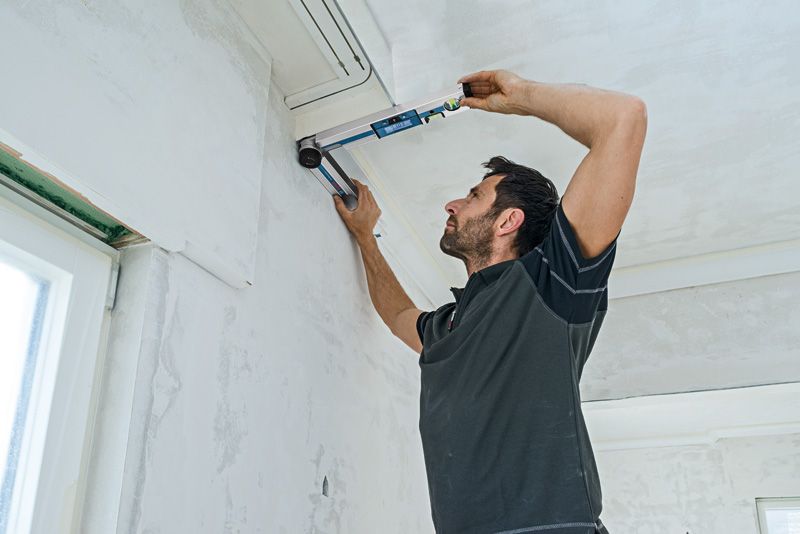

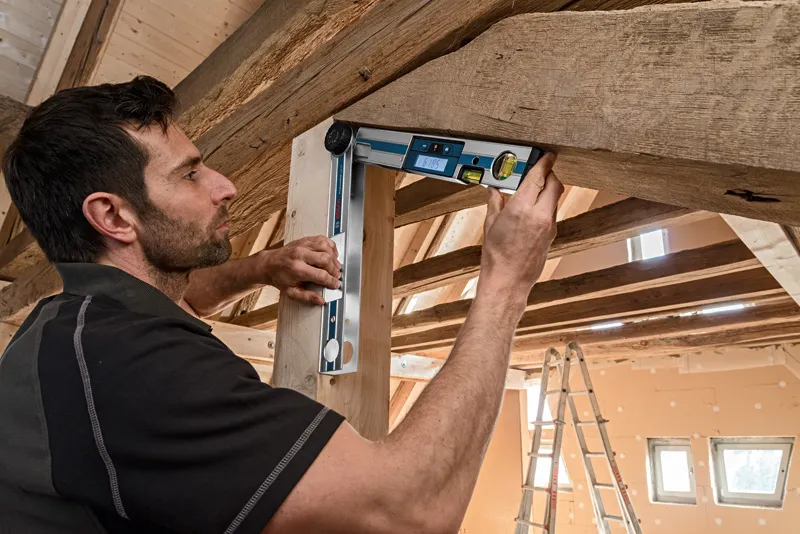

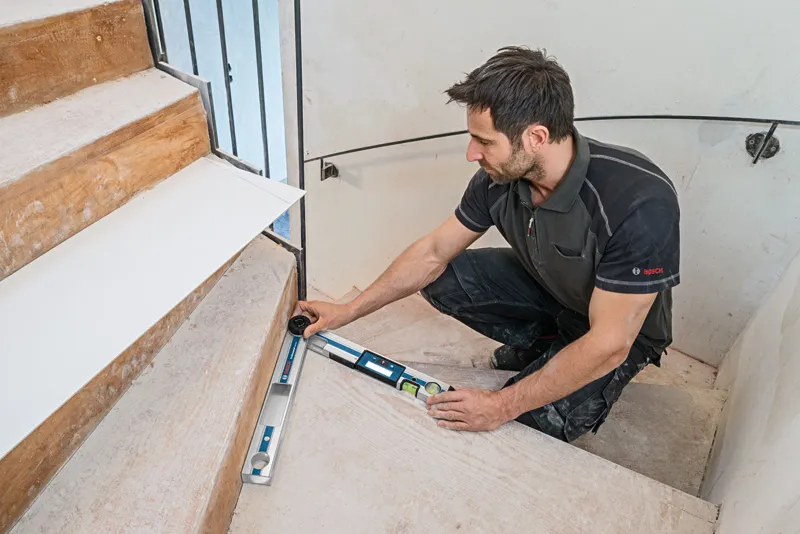

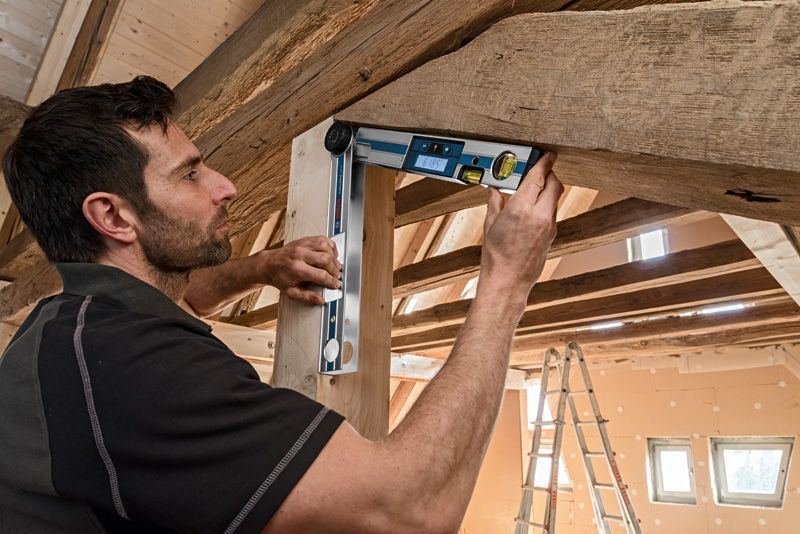

The GAM 220 in action!

User Manual

GAM 220 (PDF 22.6 MB)
