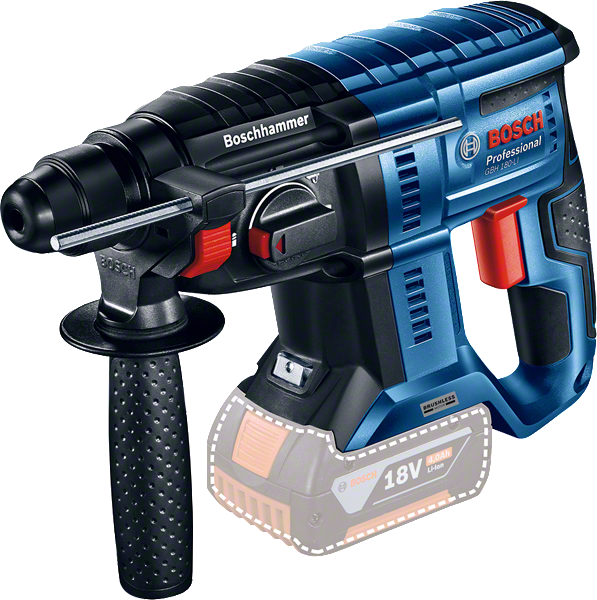

Cordless Rotary Hammer with SDS plus GBH 180-LI Professional

Powerful cordless rotary hammer within reach – brushless motor for a lasting performance

Technical data
Additional data
Battery voltage* 18   V
Max. impact energy* 2   J
Weight excl. battery 2.3   kg
Impact rate at rated speed 0 – 5,100   bpm
Rated speed 0 – 1,800   rpm
Tool holder SDS plus
Drilling range
Drilling dia. in concrete with hammer drill bits* 4 - 20   mm
Opt. app. range in concrete with hammer drill bits 6 - 10   mm
Max. drilling diameter in metal 13   mm
Max. drilling diameter in wood 30   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 10   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.


Powerful cordless rotary hammer within reach – brushless motor for a lasting performance

  • Powerful impact system with 2.0 J, 3 mode hammer for versatile usage
  • Reduced maintenance due to brushless motor and increased runtime per battery charge
  • No sparks and less heat generation during use thanks to brushless motor


SDS plus toolholder Optimum power transfer. For Rotary Hammers in the 2 – 4kg class.
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Combi hammer with chisel function No rotary motion; impact effect only
 No self-discharge, no memory effect and a higher energy density thanks to Li-ion battery technology
 Illuminating of the work area
Longer motor life - more runtime - more power thanks to brushless motor
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Easy and precise control of the RPM thanks to variable speed
Forward / reverse rotation for inserting and removing screws
Comfortable handling of the tool thanks to softgrip
Construction The professional power tools for construction from Bosch.

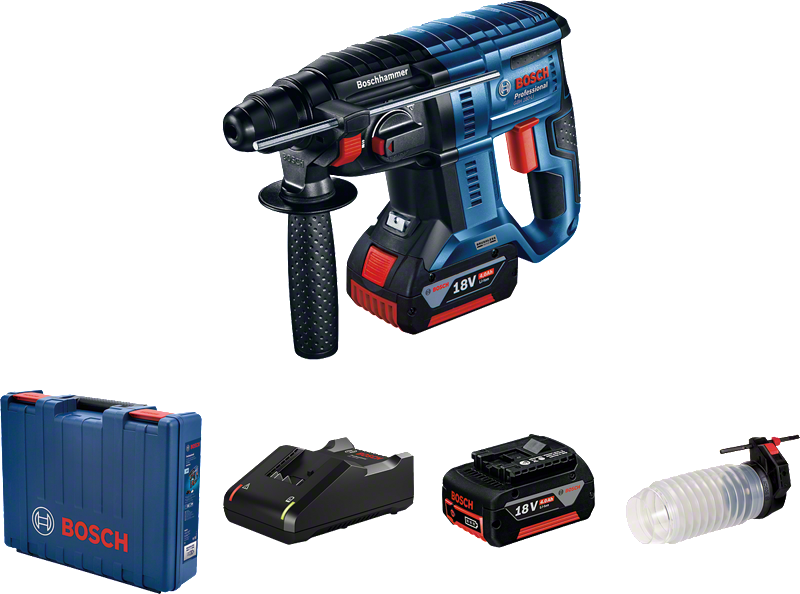

What’s Included in this Package
in carrying case with depth stop
in carrying case with depth stop
Order number: 0 611 911 1L2
  • Auxiliary handle 1 602 025 08X
  • 2 x battery GBA 18V 4.0Ah 1 600 A00 163
  • Quick charger GAL 18V-40 Professional 1 600 A01 B92
  • Depth stop 1 613 001 003
  • Machine cloth (spare part number 1 619 200 413)
  • Carrying case
  • 1 x dust cup 1 600 A00 D6H
Product variations (2)
The GBH 180-LI in action!
