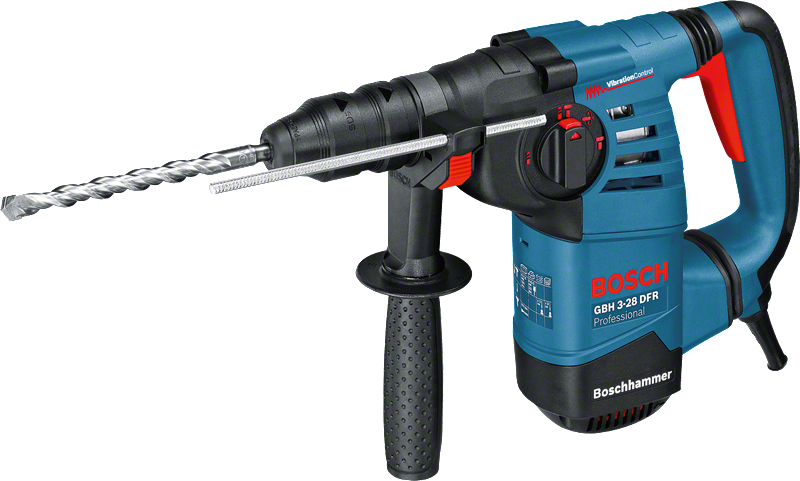

Rotary Hammer with SDS plus GBH 3-28 DFR Professional

Top performance with 20% less vibration

Technical data
Additional data
Rated input power* 800   W
Impact energy* 3.1   J
Impact rate at rated speed 0 – 4,000   bpm
Rated speed 0 – 900   rpm
Weight 3.6   kg

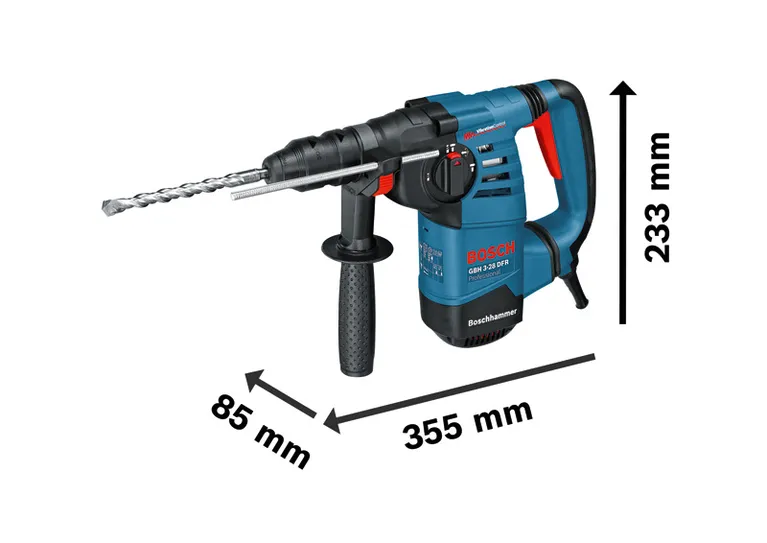

Tool dimensions (length) 354   mm
Tool dimensions (height) 233   mm
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 4 – 28   mm
Opt. appl. range concrete, hammer drill bits 12 – 18   mm
Drilling diameter in concrete with core cutters 68   mm
Max. drilling diameter masonry, core cutters 82   mm
Max. drilling diameter in metal 13   mm
Max. drilling diameter in wood 30   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 13   m/s²
Uncertainty K 2   m/s²
Total vibration values (Chiselling)
Vibration emission value ah 9.5   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.

Advantages

Top performance with 20% less vibration

  • High drilling rate and 20% higher chiselling power than other rotary hammers in its class
  • 20% less vibration than other hammers in its class for more comfortable working due to Bosch Vibration Control
  • Quick change chuck for fast changes between drilling with impact in concrete and drilling without impact in wood and metal

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Optimal power transmission for small hammers
Metal chuck 1.0 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Construction The professional power tools for construction from Bosch.
What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 611 24A 0L0
  • Pointed chisel (spare part number 2 608 690 095)
  • SDS plus quick-change chuck 2 608 572 213
  • Quick change chuck 13 mm 2 608 572 212
  • Auxiliary handle 2 602 025 191
  • Carrying case 2 605 438 651
  • Depth stop 210 mm 1 613 001 010

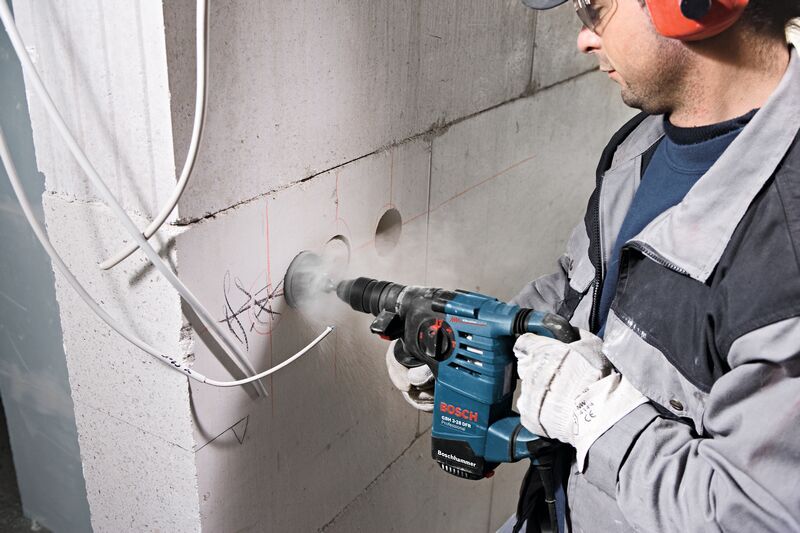

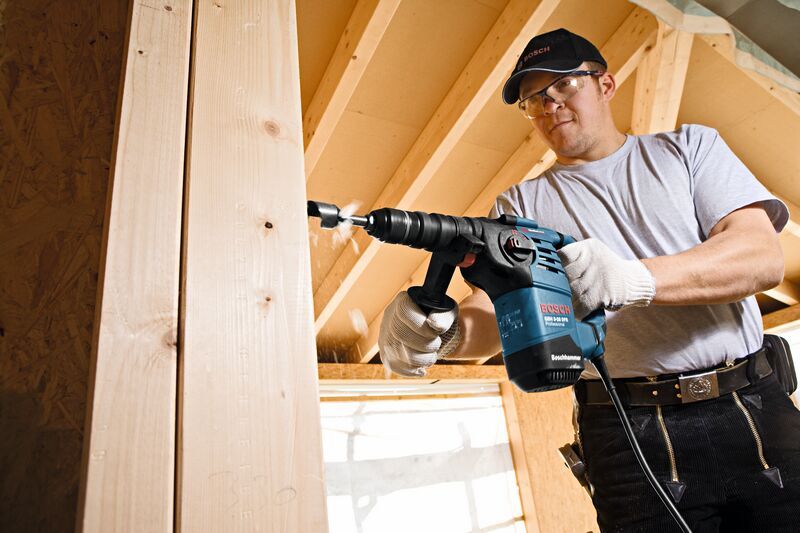

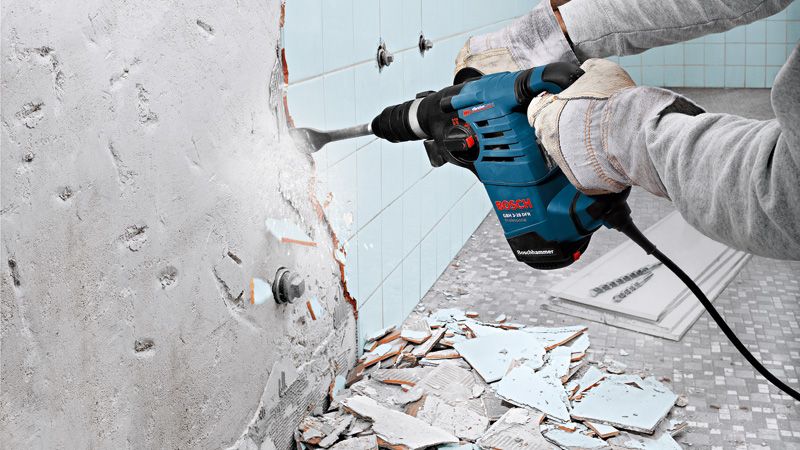

The GBH 3-28 DFR in action!
