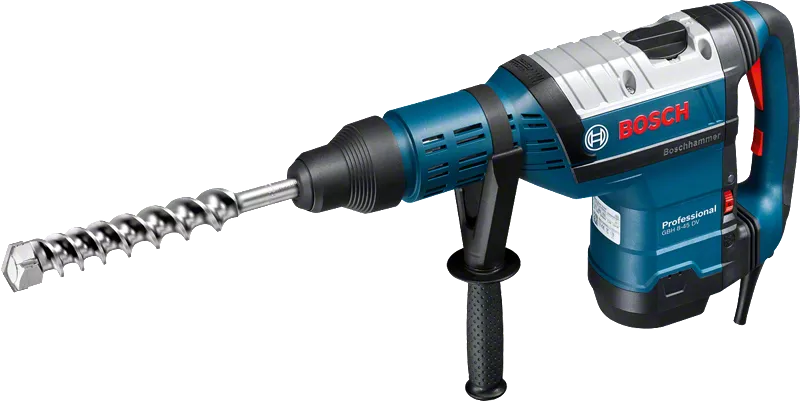

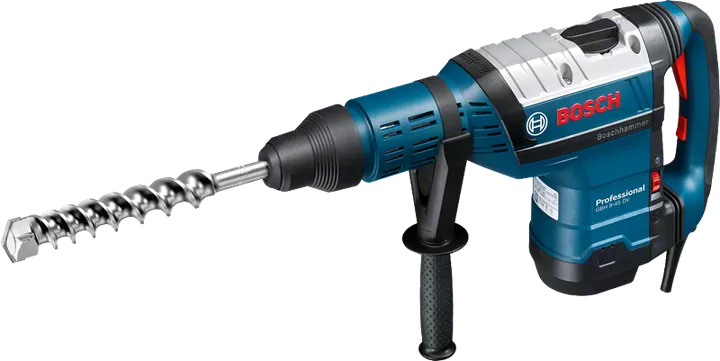

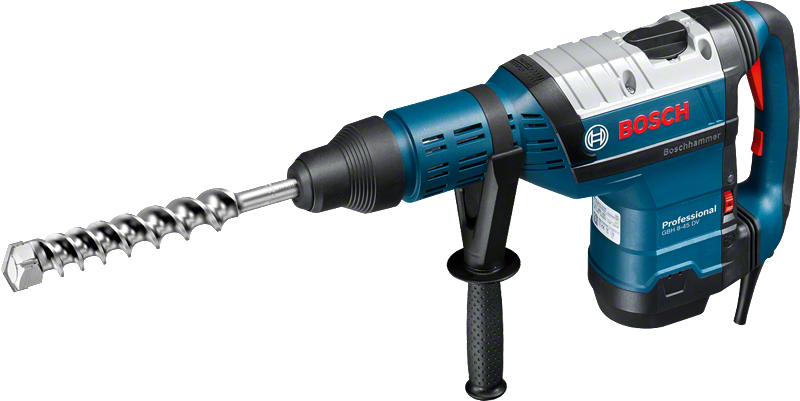

Rotary Hammer with SDS max GBH 8-45 DV Professional

Powerful 1500 watt at low vibrations

Technical data
Additional data
Rated input power* 1,500   W
Impact energy* 12.5   J
Impact rate at rated speed 1,380 – 2,760   bpm
Rated speed 0 – 305   rpm
Weight 8.9   kg

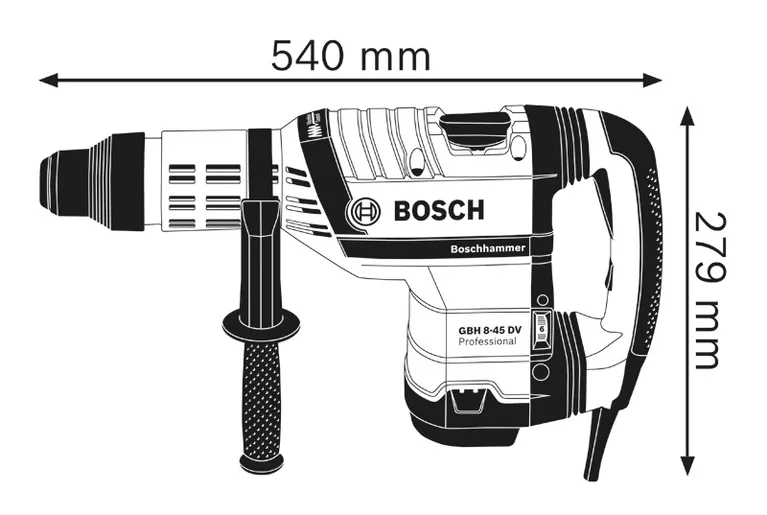

Tool dimensions (width) 116   mm
Tool dimensions (length) 540   mm
Tool dimensions (height) 310   mm
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits* 12 – 45   mm
Drilling dia. concrete, breakthrough drill bits 80   mm
Drilling diameter in concrete with core cutters 125   mm
Opt. appl. range concrete, hammer drill bits 20 – 40   mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.


Powerful 1500 watt at low vibrations

  • User buys a GBH 8-45 DV Professional and gets various accessories for free!
  • Peak performance in Drilling and Chiselling
  • Three-way Vibration Control System, Turbo Power Function


Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Best work results with constant speed thanks to electronic regulation of speed - even under load
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Optimal power transmission for large hammers
Dust-free view of the workpiece and score line thanks to the air blower function
Better chiselling performance by utilizing the power used for drilling to increase impact energy when in hammer only mode
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Construction The professional power tools for construction from Bosch.
What’s Included in this Package
with Grease tube (spare part number 1 615 430 010)
with Grease tube (spare part number 1 615 430 010)
Order number: 0 611 265 0L0
  • Grease tube (spare part number 1 615 430 010)
  • Cleaning cloth 1 619 200 413
  • Adhesive label
  • Carrying case 1 615 438 704
  • Sticker
  • Operating instructions
The GBH 8-45 DV in action!
