Combi lasers

GCL 2-15 G Professional

Name: GCL 2-15 G
Brand: Bosch power tools
SKU: 0601066J00

Combi Laser

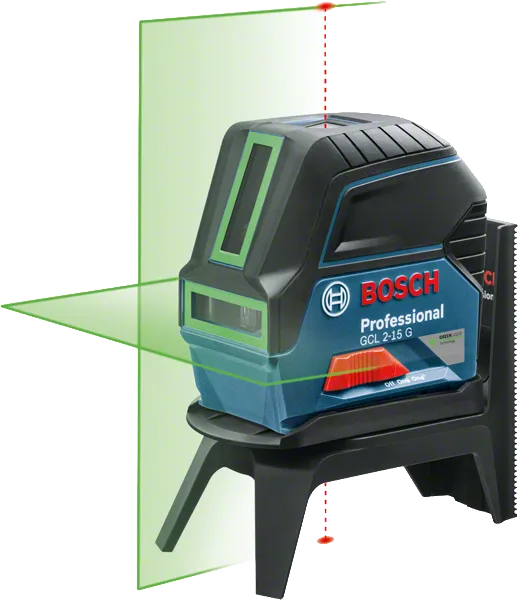

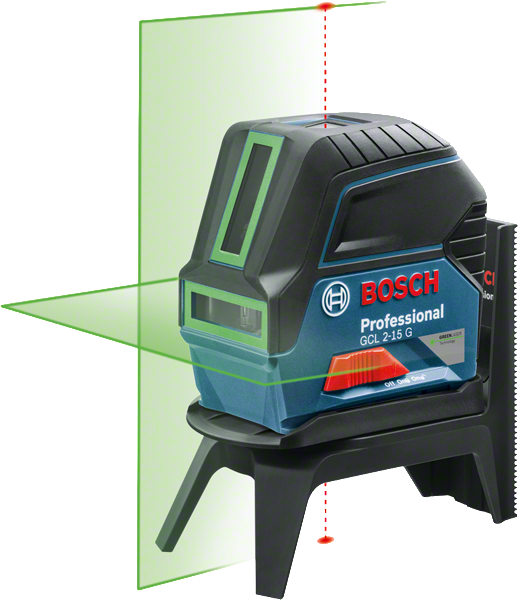

Green laser lines for up to four times better visibility

Green horizontal and vertical laser lines for up to four times better visibility than red lines
Precise transfer applications thanks to red plumb points

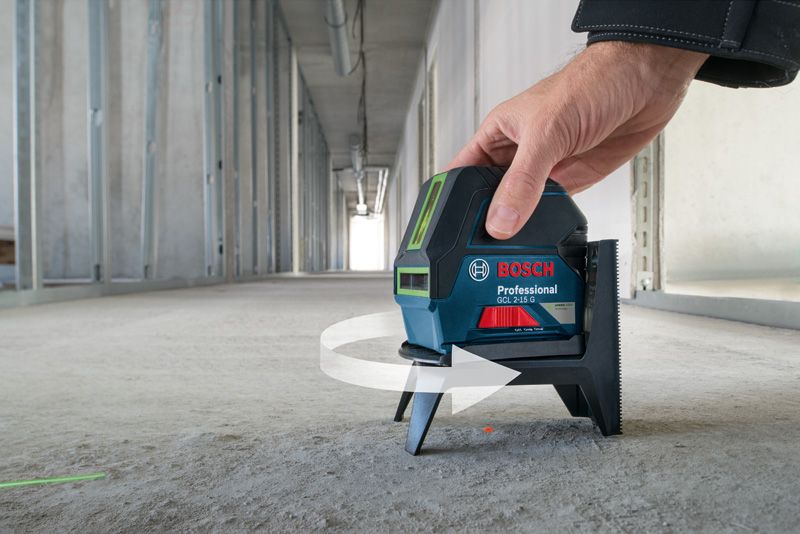

Rotating mount RM 1 Professional allows laser lines to be easily aligned around the plumb points

Functions & key features

Your Selection

in carrying case with 3 x battery (AA), rotating mount

Show variant

Available in 1 onlineshop(s)

Check availability on location

Buy now

Your Selected Variant

in carrying case with 3 x battery (AA), rotating mount 0 601 066 J00

Buy now

GCL 2-15 G Professional

Your Selection

in carrying case with 3 x battery (AA), rotating mount

Order number: 0 601 066 J00

Buy now

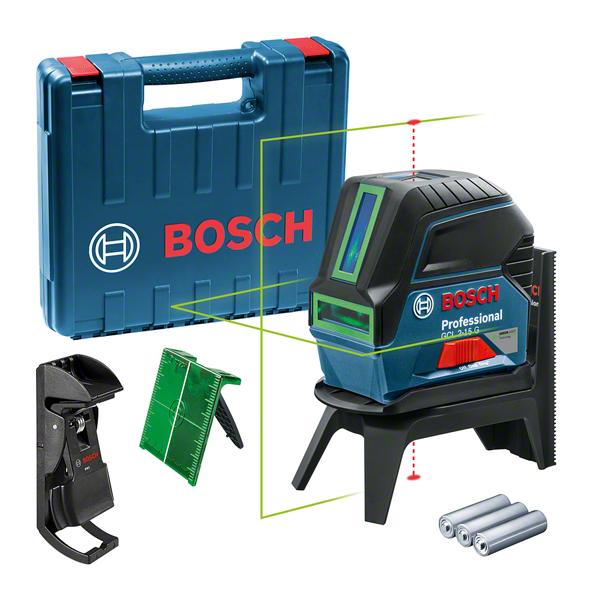

Included in this variant

Rotating mount RM 1 Professional

Order number: 0 601 092 600
3 x 1.5 V LR6 battery (AA)
Ceiling clamp
Carrying case
Laser target plate

Your selection

Technical data

Additional data
Dust and splash protection	IP 54
Working range	up to 15 m
Accuracy	± 0.3 mm/m* (*plus use-dependent deviation)
Projection	2 lines / 2 points
Working range, value	15 m
Laser diode	Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range of laser points, max.	10 m (top), 10 m (bottom)
Self-levelling range	± 4°
Levelling time	4 s
Power supply	3 x 1.5 V LR6 (AA)
Operating time (max.)	6 h in cross line and point mode, 8 h in cross line mode, 10 h in line and point mode, 12 h in line mode, 22 h in point mode
Tripod thread	1/4", 5/8"
Weight, approx.	0.49 kg
Colour of laser line	green
Plumb point accuracy	± 0.7 mm/m* (*plus use-dependent deviation)

GCL 2-15 G Professional: Further information

Product Highlights

Up to four times better visibility with green laser lines and perfectly versatile – this is Bosch´s combi laser GCL 2-15 G Professional. The two laser lines allow for precise vertical and horizontal alignment, while red plumb points simplify transfer applications. Easily align laser lines around the plumb points with the versatile rotating mount RM 1 Professional.

Equipment & Application

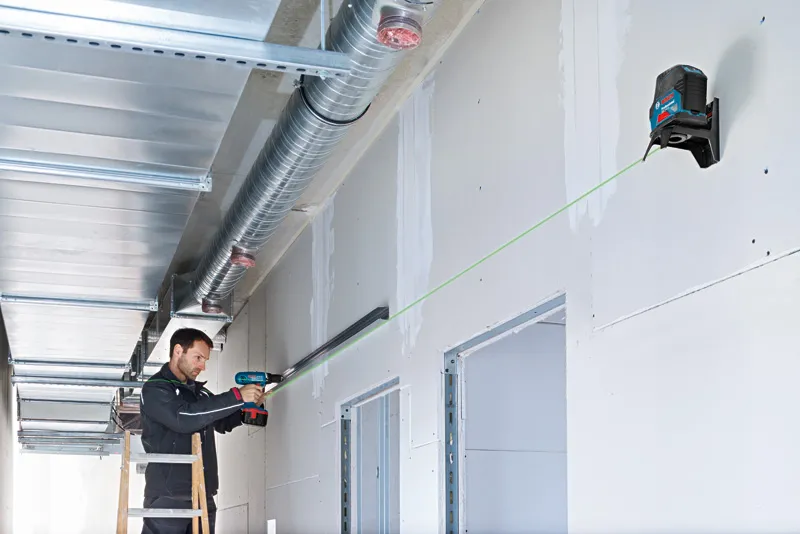

The GCL 2-15 G Professional is suitable for various jobs such as suspending drop-ceilings, installing drainage pipes and laying floors. It also offers point transfers for light mountings.

Additional Information

The GCL 2-15 G Professional has a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust with IP54 dust and splash water protection. When the tool is switched off, the pendulum automatically locks for safe transportation and convenient storage.

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
