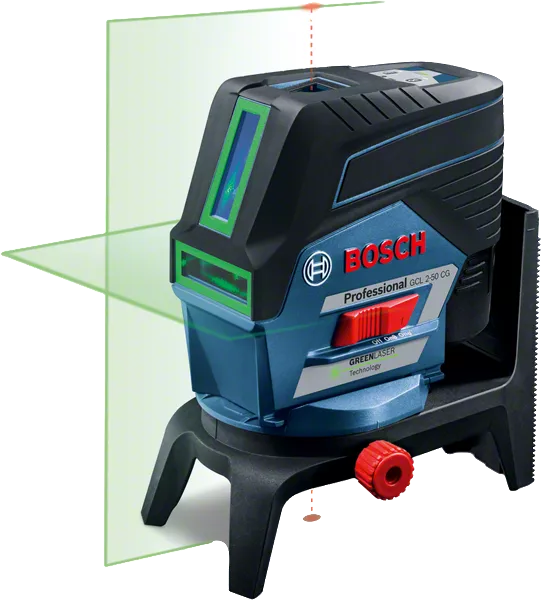

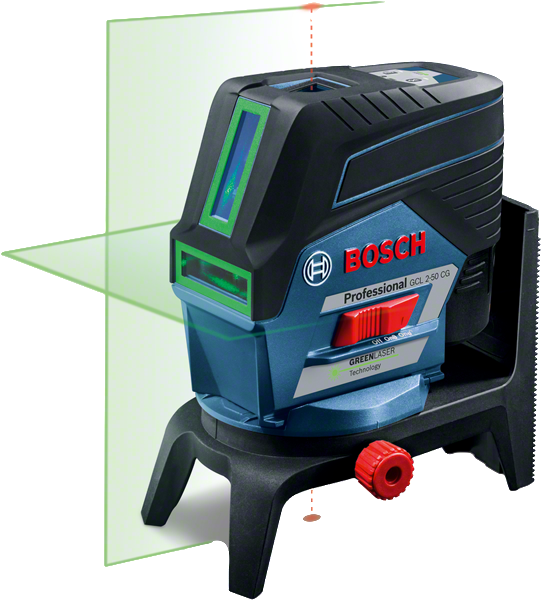

Combi Laser GCL 2-50 CG Professional

Supreme visibility connected with smart functions

Technical data
Additional data
Working range* 20 m
Working range with receiver* 50 m
Accuracy* ± 0.3 mm/m
Laser diode 500 – 540 nm, < 10 mW, 630 – 650 nm, < 1mW
Operating temperature, from -10 °C
Operating temperature, up to 50 °C
Operating temperature -10 – 50°C °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70°C °C
Laser class 2
Working range with receiver, value 50 m
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Dust and splash protection IP 54
Operating time (max.) 10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation, 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation, 15 h (Li-Ion) and 12 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Tripod thread 1/4"
Weight, approx. 0.6 kg
Colour of laser line green
Colour of plump points red
Projection 2 lines / 2 points
Plumb point accuracy ± 0.7 mm/m

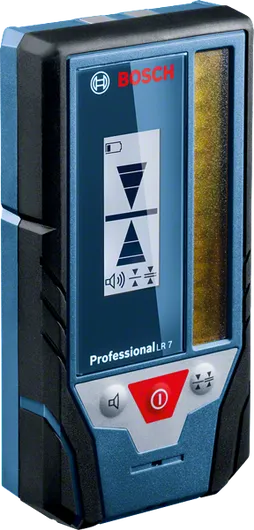

Compatible laser receivers LR 7

* Highlighted Data

Advantages

Supreme visibility connected with smart functions

  • Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility

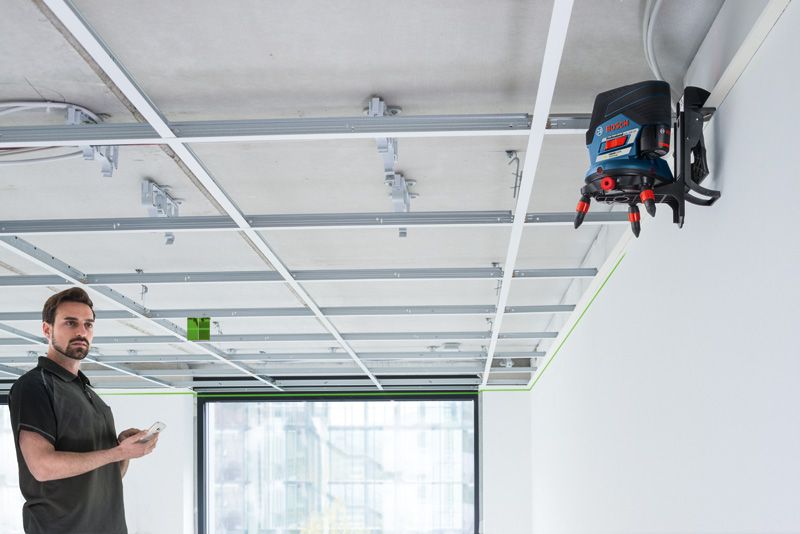

  • Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
  • Dual Power Source allows for the use of 12 V Li-ion battery or standard alkaline batteries

Functions

Icon
Icon
Icon
Icon
Laser class 2 Laser class for measuring tools.
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
What’s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 066 H80
  • Protective Bag
  • Rotating mount RM 2 Professional 0 601 092 700
  • AA1 alkaline battery adapter 1 608 M00 C1B
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate

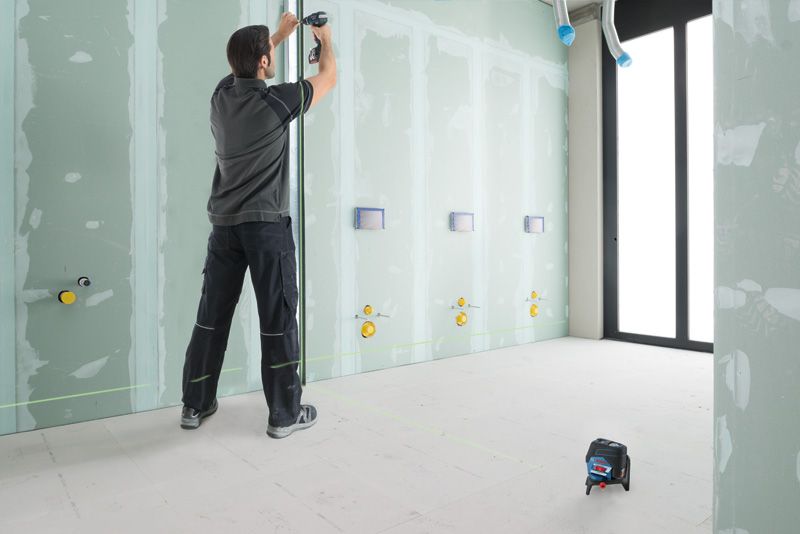

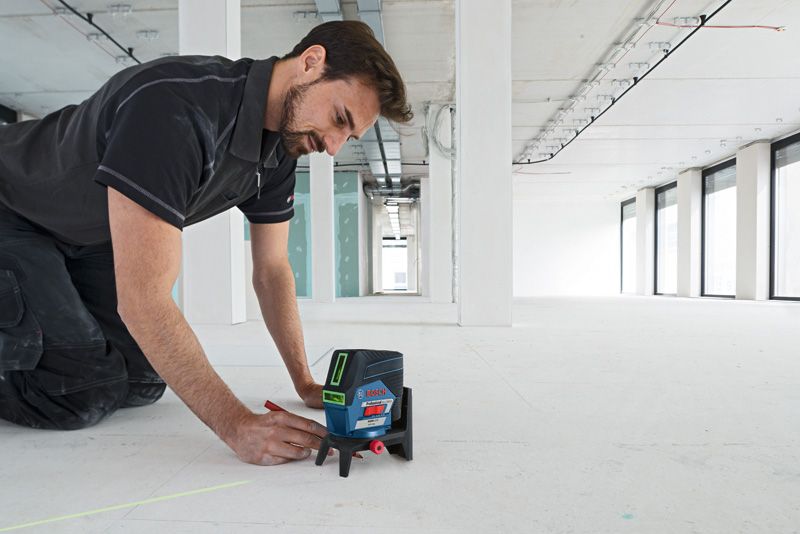

The GCL 2-50 CG in action!
