Combi Laser GCL 25 Professional

The easy solution for all levelling and transfer jobs over short distances

Technical data
Additional data
Laser diode 635 nm, < 1 mW
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Laser class 2
Self-levelling range* ± 4°
Levelling time 4   s
Dust and splash protection* IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 30 h
Tripod thread* 1/4", 5/8"
Weight, approx. 0.6   kg
Projection 2 lines / 5 points

* Highlighted Data

Advantages

The easy solution for all levelling and transfer jobs over short distances

  • Extremely versatile: cross line laser and five-point laser in one
  • Easy to operate using intuitive user interface
  • Compact and ergonomic design

Functions

Laser class 2 Laser class for measuring tools.
Working range in cross mode Range of up to 10 m
Working range in point mode Range of up to 30 m

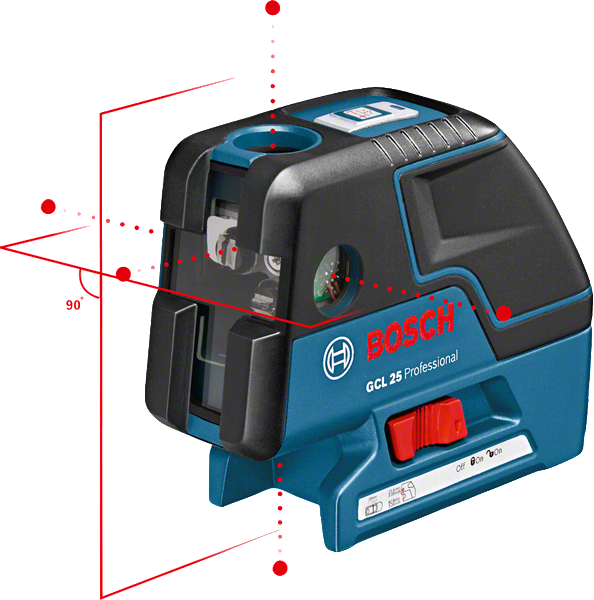

GCL 25 Accurate alignment due to cross line and five-point laser
Levelling accuracy in cross mode Levelling accuracy in cross mode ± 0.3 mm/m
Levelling accuracy in point mode Levelling accuracy in point mode ± 0.5 mm/m

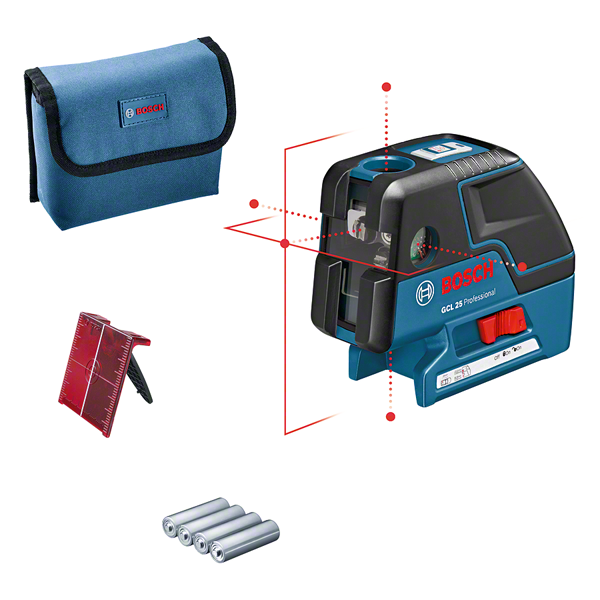

What’s Included in this Package
with 4 x battery (AA), laser target plate
with 4 x battery (AA), laser target plate
Order number: 0 601 066 B00
  • Laser target plate
  • L-BOXX inlay for tool
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)

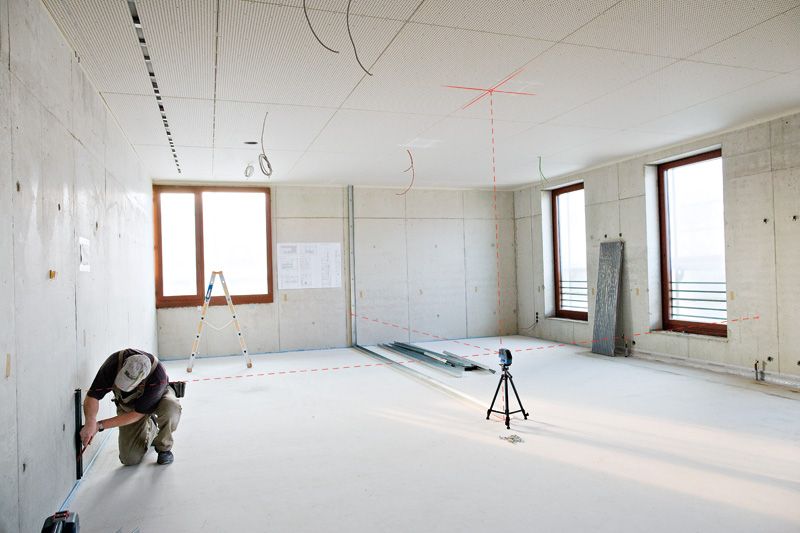

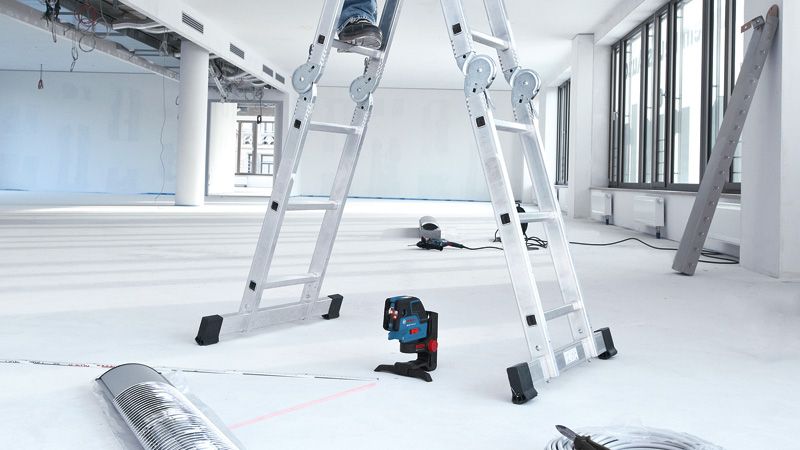

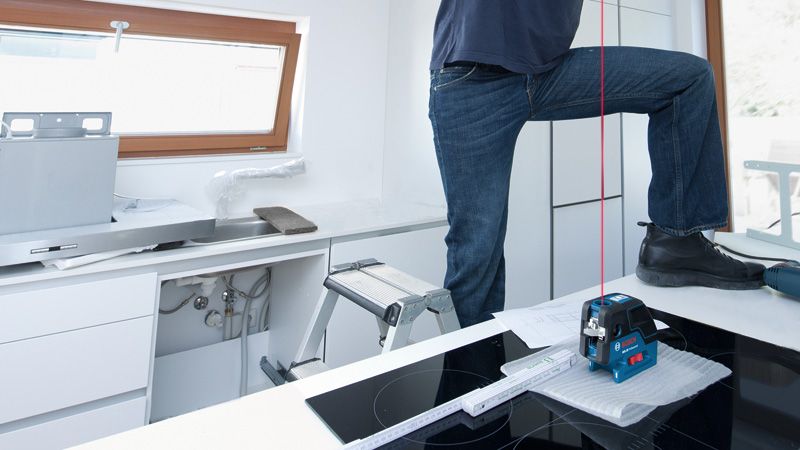

The GCL 25 in action!
