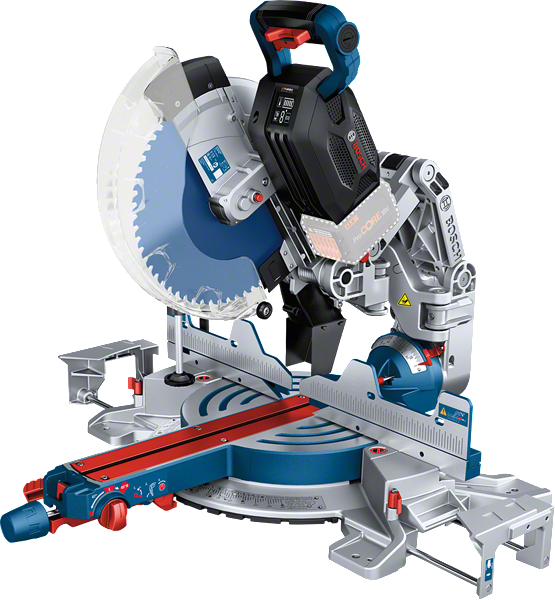

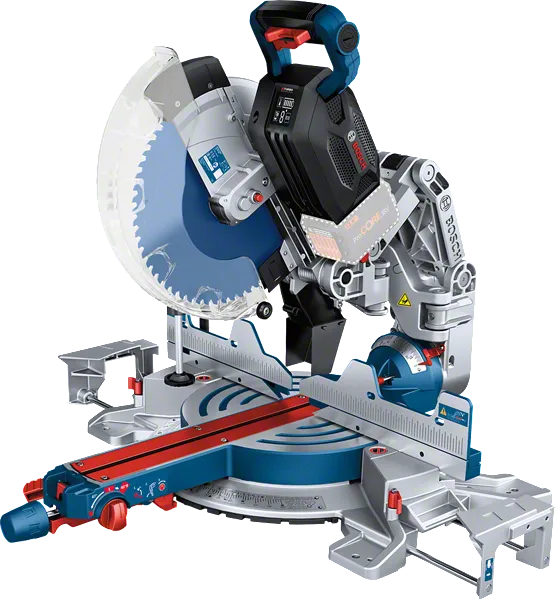

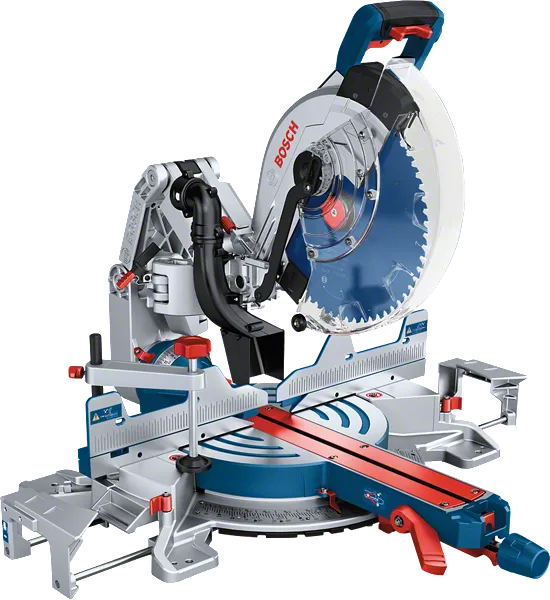

GCM 18V-305 GDC Professional
Cordless Mitre Saw BITURBO
The combination of impressive cutting performance and full cordless flexibility
- Brushless motor powered by ProCORE18V battery delivers cordless power equal to 2000W corded mitre saw

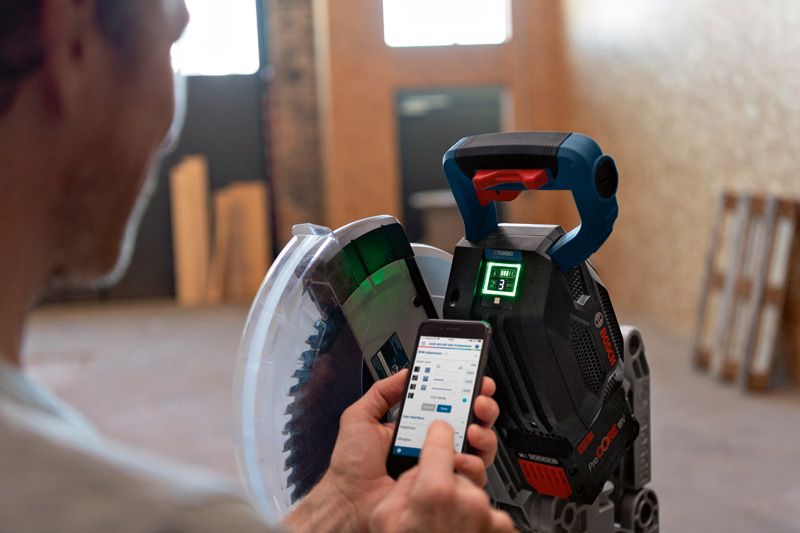

- HMI and connectivity for battery status check; speed selection including ECO mode
- Tool-less blade change; upfront bevel control; motor brake; space-saving glide arm for safe and convenient operation
Functions & key features
Your Selection
- in cardboard box with accessory set, Bluetooth module
Available in 1 onlineshop(s)
Buy now
GCM 18V-305 GDC Professional
Your Selection
Order number: 0 601 B43 0K0
Buy nowIncluded in this variant
-
Dustbag (spare part number 1 609 B05 010)
-
ClampOrder number: 1 609 B06 203
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalOrder number: 1 600 A01 6NH
-
1 x cordless saw blade, Expert for Wood, 305 x 2.2 /1.6 x 30 mm, 60Order number: 2 608 644 528
-
Cardboard box
-
SDS saw blade lock (spare part number 1 609 B05 323)
-
Internal hexagonOrder number: 1 609 B00 256
-
Insert plateOrder number: 1 609 B02 375
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 305 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Battery voltage | 18.0 V |
| Bevel setting | 47 ° L / 47 ° R |
| Weight | 26.6 kg |
| Cutting capacity, 0° | 104 x 341 mm |
| Cutting capacity 0° with spacer (max. vertical) | 120 x 200 mm |
| Cutting capacity 0° with spacer (max. horizontal) | 45 x 400 mm |
| Cutting capacity, 45° mitre | 104 x 240 mm |
| Cutting capacity, 45° bevel | 40 x 341 mm |

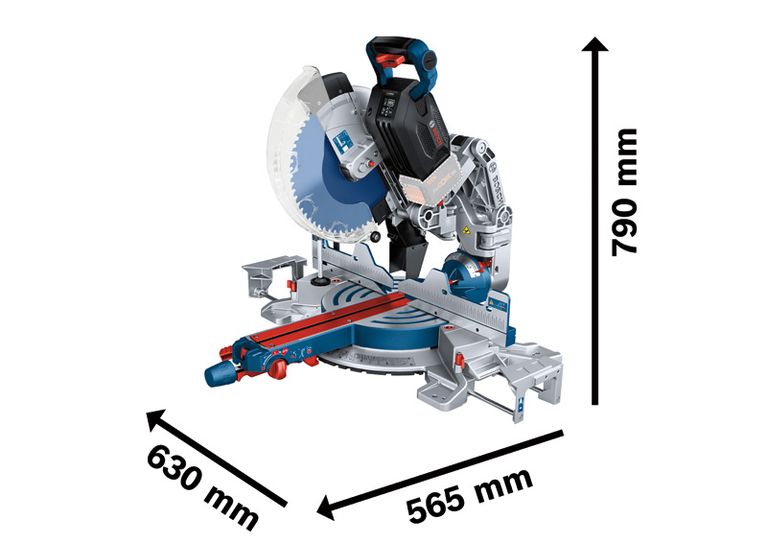

| Tool dimensions (width x length x height) | 565 x 630 x 790 mm |
| No-load speed | 2,550 – 4,000 rpm |
| Saw blade bore diameter | 30 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
GCM 18V-305 GDC Professional: Further information
Product Highlights

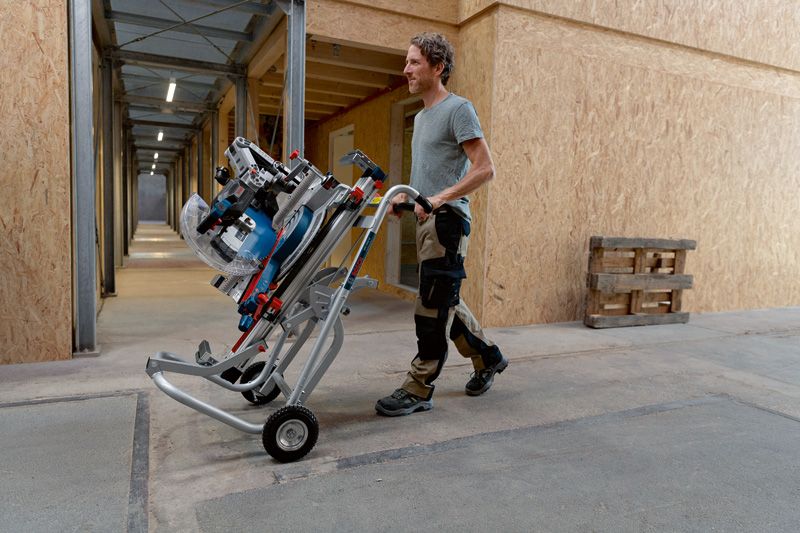

The GCM 18V-305 GDC Professional BITURBO cordless mitre saw offers powerful cutting depth with cuts up to 120 mm. Fully optimised for the ProCORE18V technology, the mitre saw’s brushless motor delivers power equal to a corded mitre saw. This saw offers an HMI as well as connectivity for quick battery status check and speed selection including ECO mode. Features like tool-less saw blade change, upfront bevel control, and motor brake enhance the safety of the saw. The tool is ideal for compound cutting as well as a broad range of materials. The saw can be mounted on multiple Bosch GTA stands. While reaching maximum performance when used with ProCORE18V batteries, the mitre saw is also compatible with all Bosch 18V battery packs.
Equipment & Application

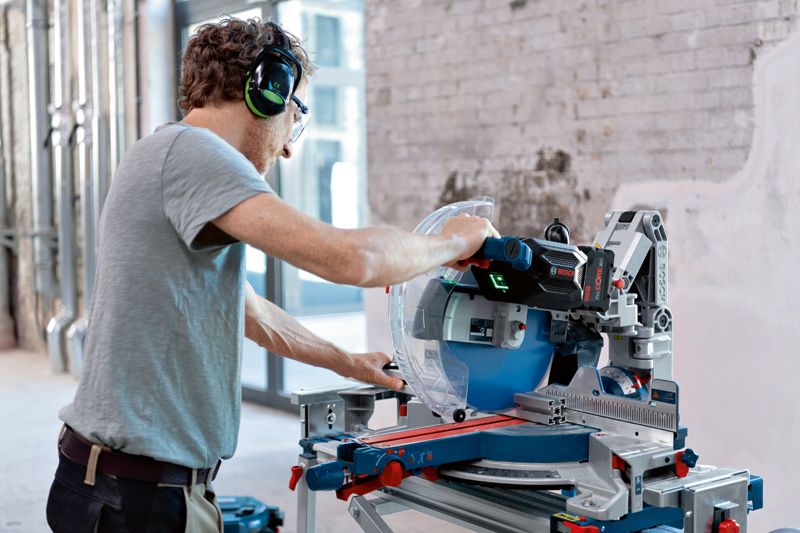

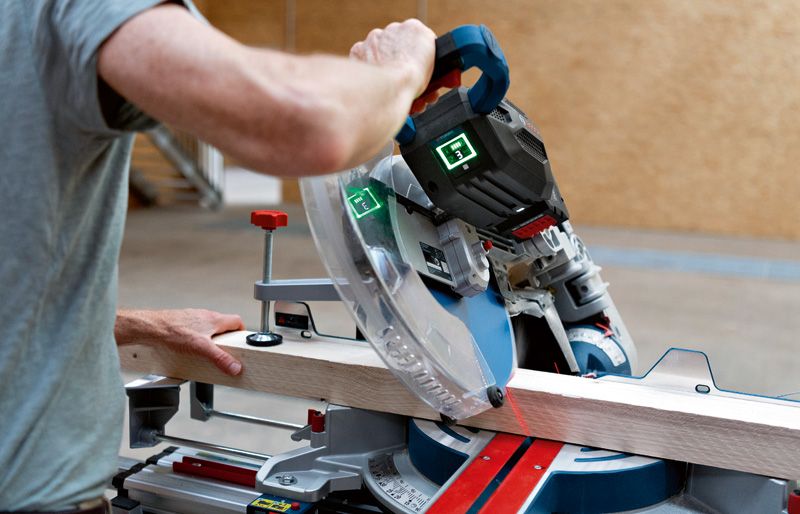

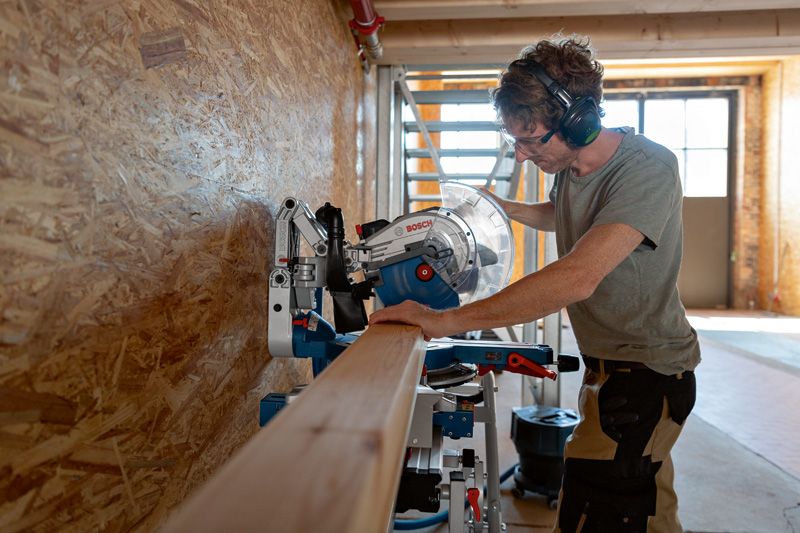

The GCM 18V-305 GDC Professional delivers full power with just one battery, also in tough applications. Speed selection and Bosch´s wide saw blade range make this mitre saw perfectly suitable for working with almost any material
