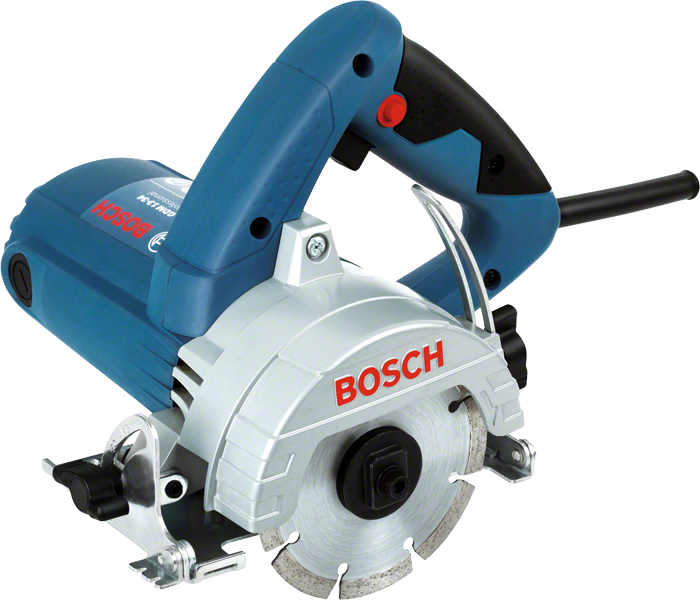

Marble Saw GDM 13-34 Professional
More cutting power with the longest lifetime in class
Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,300 W |
| Saw blade diameter* | 110 mm |
| Saw blade bore diameter | 20 mm |
| No-load speed | 12,000 rpm |
| Weight | 2.8 kg |
| Tool dimensions (width) | 210 mm |
| Tool dimensions (length) | 225 mm |
| Tool dimensions (height) | 175 mm |
| Cutting depth | |
|---|---|
| Max. cutting capacity in wood (90°)* | 34 mm |
| Max. cutting capacity in wood (45°) | 22 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
More cutting power with the longest lifetime in class

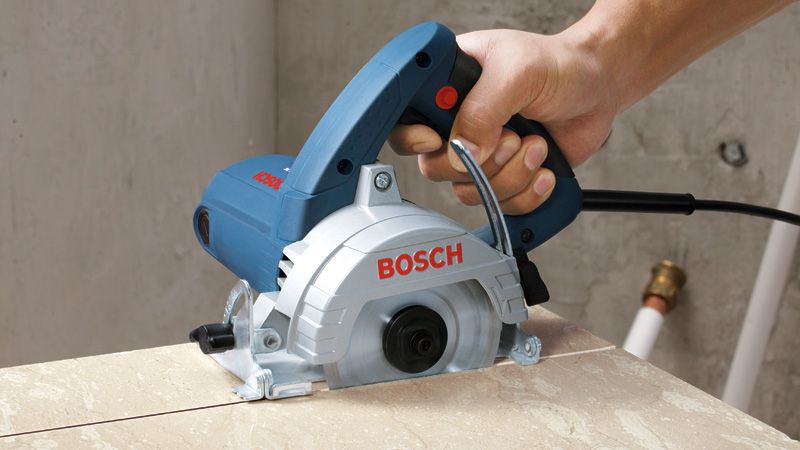

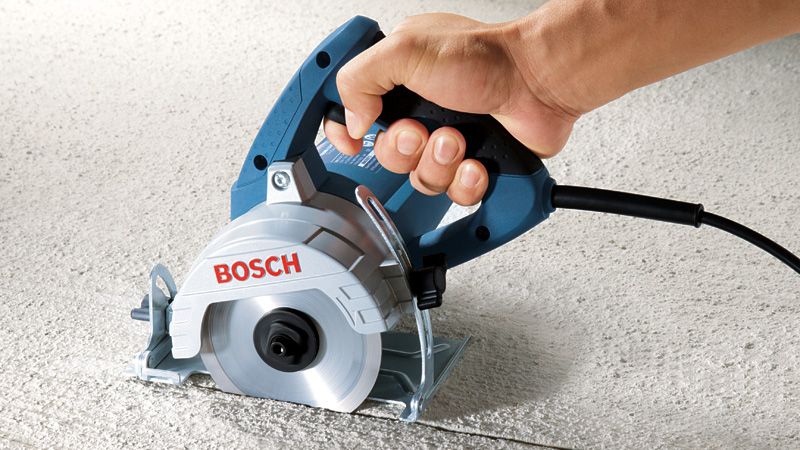

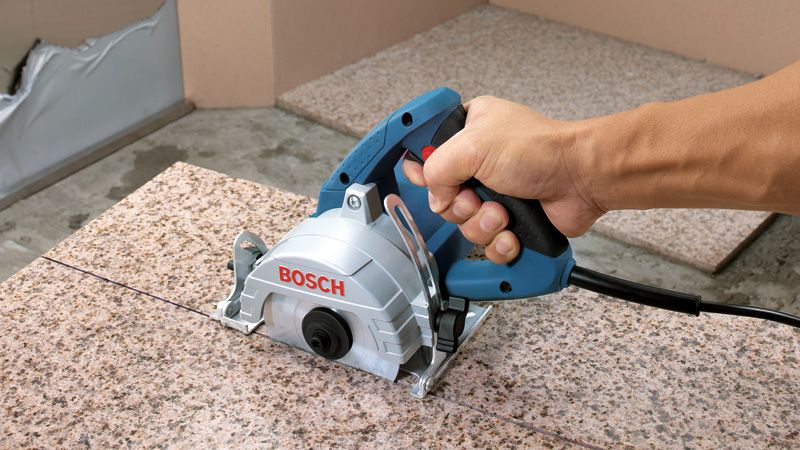

- Powerful 1300 W marble saw for fast and precise cutting in marble/granite/tile/stone
- Good dust insulation for maximum tool durability
- Handy, lightweight 2.8 kg
Functions
What’s Included in this Package
with Allen key WAF 5 (spare part number 1 907 950 006)
Order number:
0 601 36A 2L0
- Clamping bolt with washer 1 619 P00 278
- Clamping flange 1 619 P06 295
- Mounting flange 1 619 P07 057
- Allen key WAF 5 (spare part number 1 907 950 006)
- Ring spanner (spare part number 1 619 P00 281)
