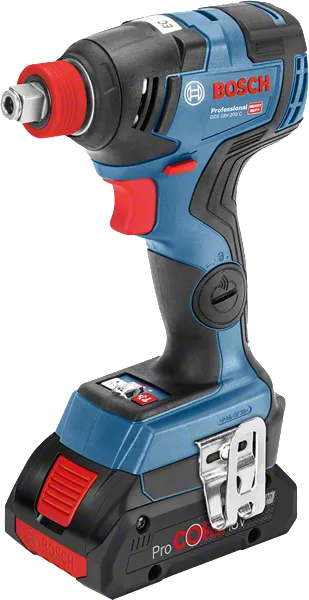

Cordless Impact Driver/Wrench GDX 18V-200 C Professional

High power in compact size

Technical data
Additional data
Battery voltage* 18   V
Torque, max.* 200   Nm
No-load speed 0-3,400   rpm
No-load speed (1st level) 0-1,100   rpm
No-load speed (2nd level) 0-2,300   rpm
No-load speed (3rd level) 0-3,400   rpm
Torque settings 3
Weight excl. battery 1.2   kg
Impact rate 0-4,000   bpm
Impact rate (1st level) 0-2,300   bpm
Impact rate (2nd level) 0-3,400   bpm
Impact rate (3rd level) 0-4,000   bpm
Tool holder 1/4" internal hexagon and 1/2" external square
Screw diameter
Screw diameter* M 6 – M 16
Total vibration values (Tightening screws and nuts of maximum permitted size)
Vibration emission value ah 9.8   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

Advantages

High power in compact size

  • Ready for all applications, thanks to 2 in 1 bit holder: ¼’’ internal hex and ½’’ square drive
  • Powerful use even in hard to reach areas thanks to best head length to torque ratio
  • Bluetooth Connectivity module for tool feedback, soft start and service information via mobile device

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Torque 200 Nm
Icon
No load speed 3400 min-1/rpm
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Easy and precise control of the RPM thanks to variable speed
2-in-1 bit holder – for even more applications combining 1/2" square and 1/4" hexagon
Simply.Connected. – Simply.Efficient. thanks to tool personalisation and information
Icon
Longer motor life - more runtime - more power thanks to brushless motor
Comfortable handling of the tool thanks to softgrip
 Illuminating of the work area
What’s Included in this Package
GDX 18V-200 C Professional
GDX 18V-200 C Professional
Order number: 0 601 9G4 2L0
  • 2 x battery GBA 18V 4.0Ah 1 600 A00 163
  • Quick charger GAL 18V-40 Professional 1 600 A01 9RJ
  • L-BOXX 136 1 600 A01 2G0
