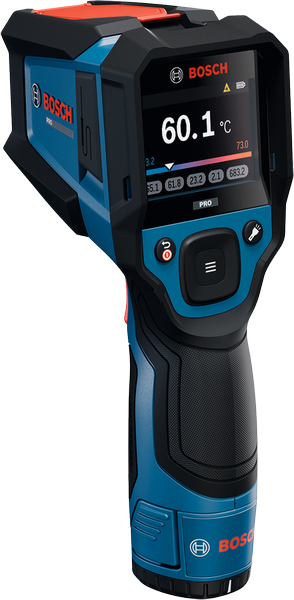

PRO GIS800-16

Thermo Detector

Order number 0.601.083.BK0

  • Precision for professionals with two laser, small spot size and advanced measurement settings like material catalogue
  • Dual power options and expanded functionality with temperature probe (Type-K) interface, LED worklight and higher temperature measuring range for versatile applications
  • Built to last: IP54 protection and 2 m drop resistance for reliable use in tough conditions
View more
Protected tools.
12V system.

1,190.00 MYR

Recommended retail price excluding VAT


PRO GIS800-16 Professional 0 601 083 BK0

1,190.00 MYR

Recommended retail price excluding VAT

PRO GIS800-16

Your Selection

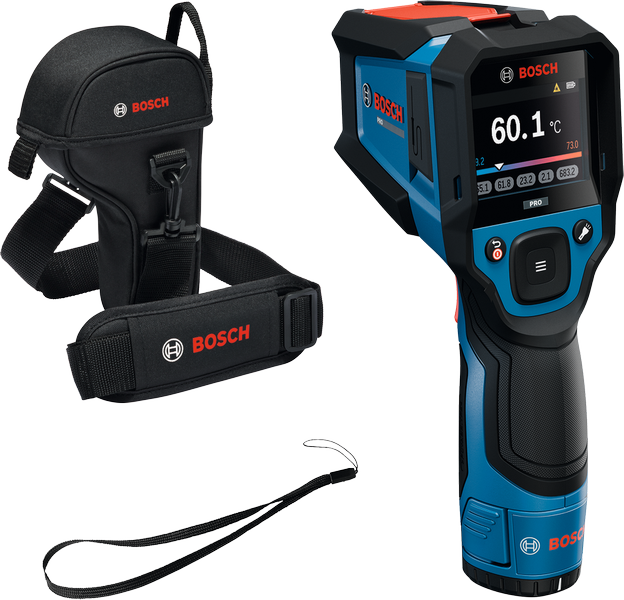

Bosch GIS 800 thermal detector with carrying case.

New

Order number: 0 601 083 BK0

1,190.00 MYR

Recommended retail price excluding VAT

Find a local dealer

Technical data

Additional data

Battery voltage
4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Measurement range
-40 °C to +800 °C, −40 °C … −30,1 °C, ±5,0 °C, −30 °C … −20,1 °C, ±4,5 °C, −20 °C … −10,1 °C, ±3,5 °C, −10 °C … −0 °C, ±2,5 °C, 0,1 °C … +100 °C, ±1,5 °C, +100,1 °C … +500 °C, ±1,5 %, +500,1 °C … +800 °C
Measuring accuracy of IR
± 1.5 °C
Measuring application
Spot temperature measurement
Optics
20:1
Resolution
0.1 °C
Laser diode
640 – 660 nm, <1 mW
Power supply and runtime
4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Shock protection
2 m
Dust and splash protection
IP54
Weight
0.36 kg
Display type
TFT LCD
Size of display
2.4"
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 50 °C
Working range
0.1 – 5 m
Number of batteries
4 Pcs
Net weight
0.352 kg
Gross weight
0.836 kg
Focus distance, minimum
0.1 m
Battery type
1.5 V LR6 (AA)

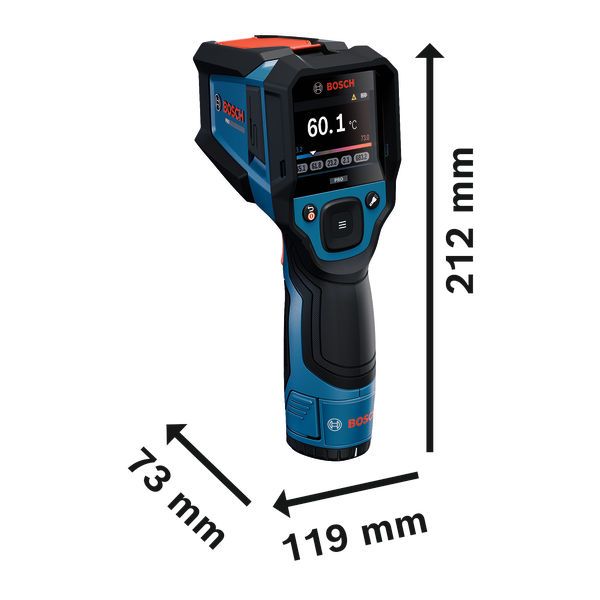

Tool dimensions (L x W x H)
73 x 119 x 212
Bosch GIS 800 thermal detector, dimensions shown.

* You can find more information about the deviations in the following link: Technical features of products

PRO GIS800-16: Further information

Product Highlights

The GIS12V-800-16 Infrared Spot Thermometer is built for precision and reliability. With IP54 certified dust and splash water protection and tested for 2 m drops, its robust design ensures durability in even the most demanding environments. The large graphical display provides clear readings, while the simple user interface makes operation straightforward. With professional-grade features like adjustable measurement parameters and a precise 20:1 spot size (D:S), this thermometer delivers accurate results for insulation evaluation, heat loss localization, and more.

Equipment & Application

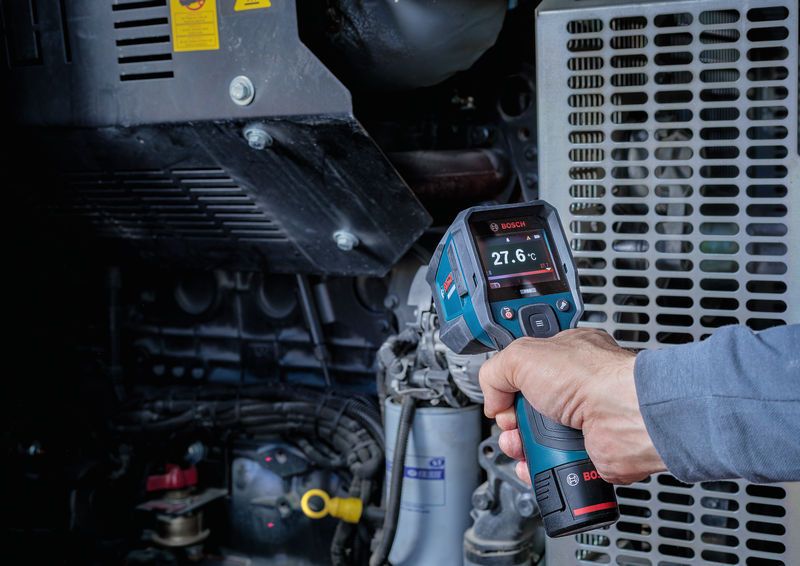

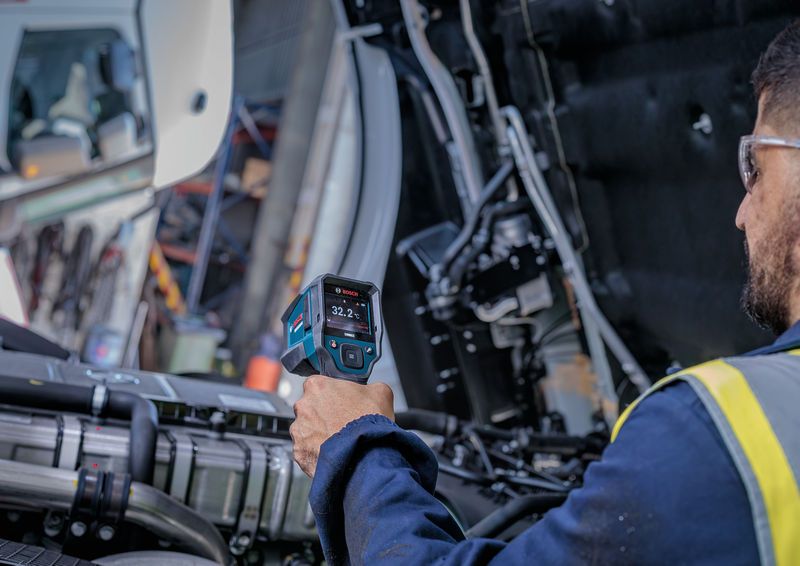

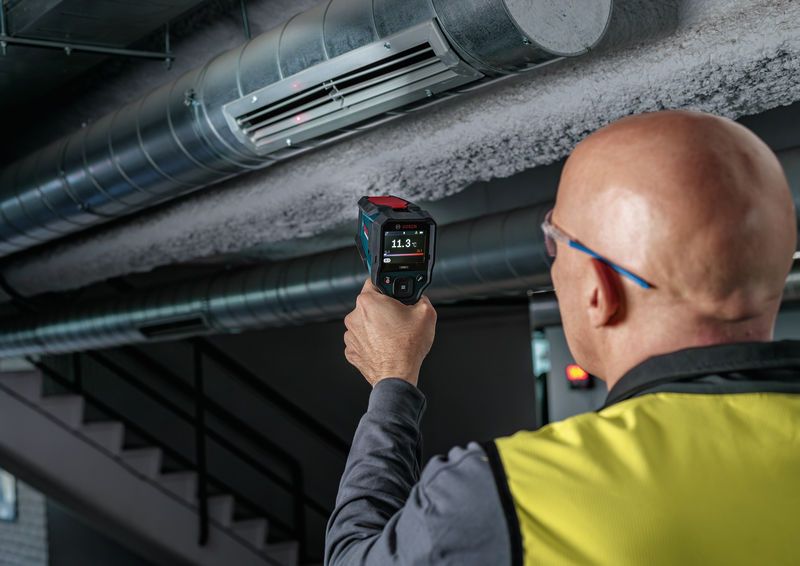

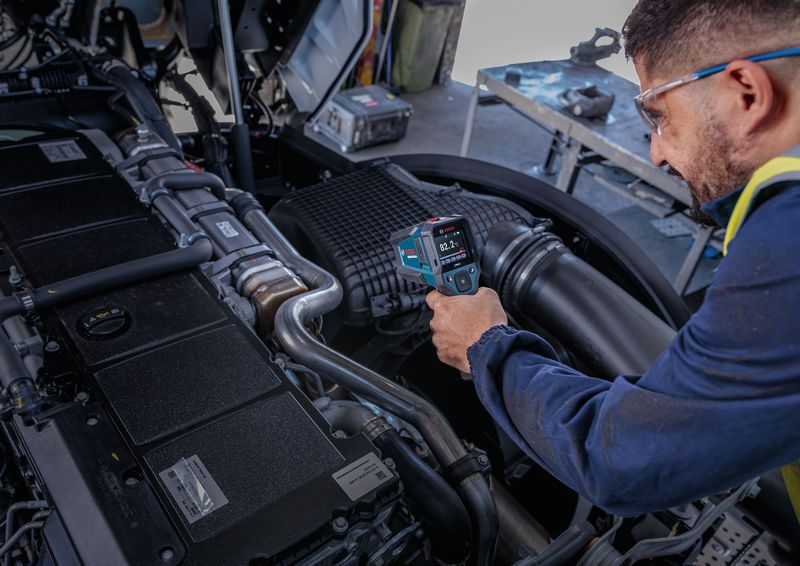

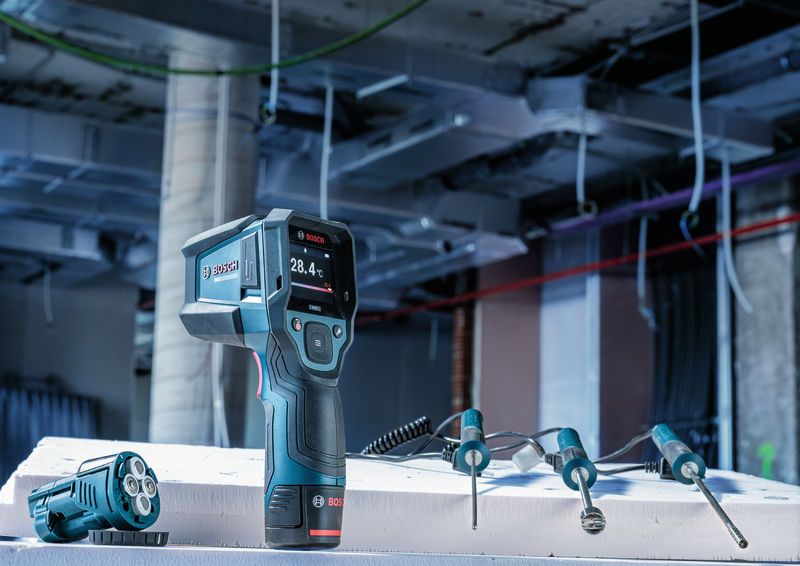

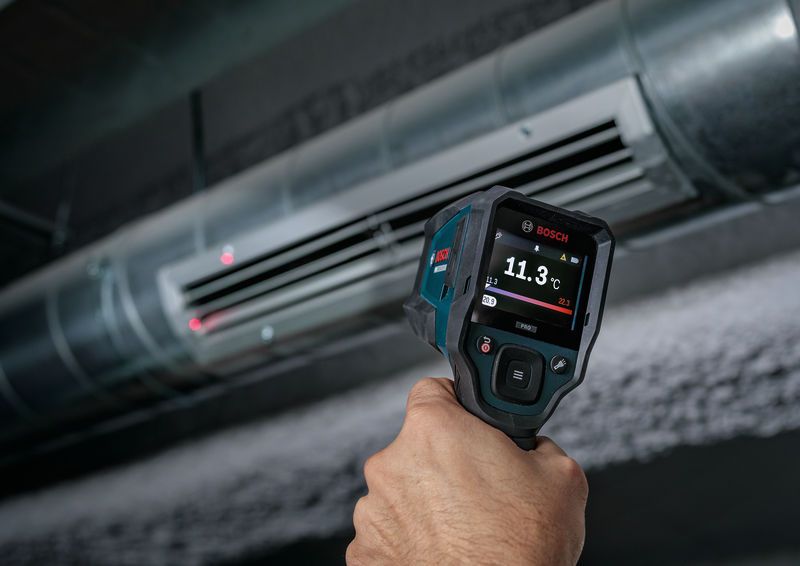

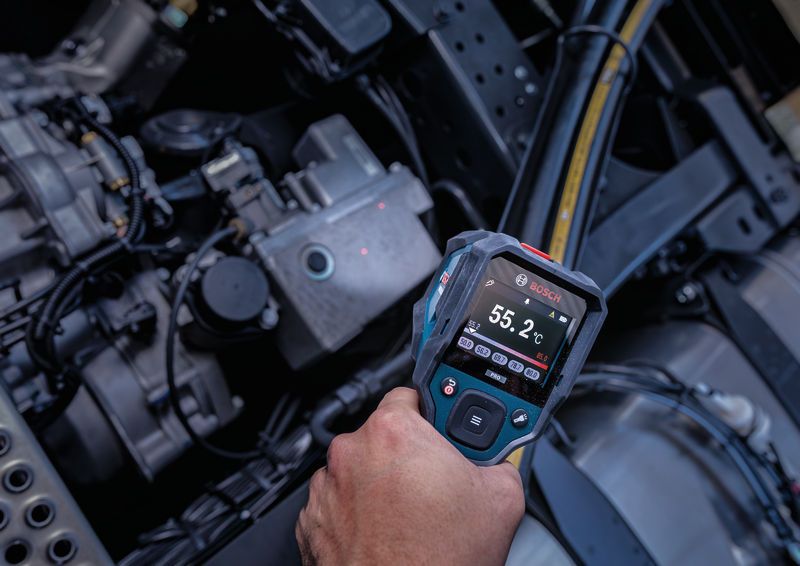

This IR thermometer is suitable for a broad range of applications, including HVAC, renovation and industrial applications. You can use it to evaluate insulation, locate damp areas or repair heating and cooling systems with ease. Dual-use functionality allows operation with either a 12V power tool battery or an AA1 battery adapter, giving you the flexibility to adjust in different scenarios. Fast booting and quick temperature measurement saves you time, while the integrated LED light illuminates dark environments for seamless indoor use.

Additional Information

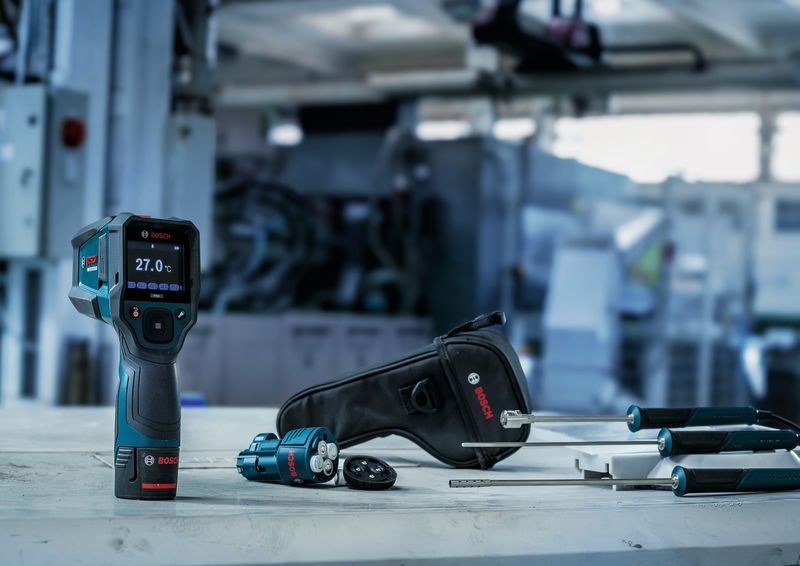

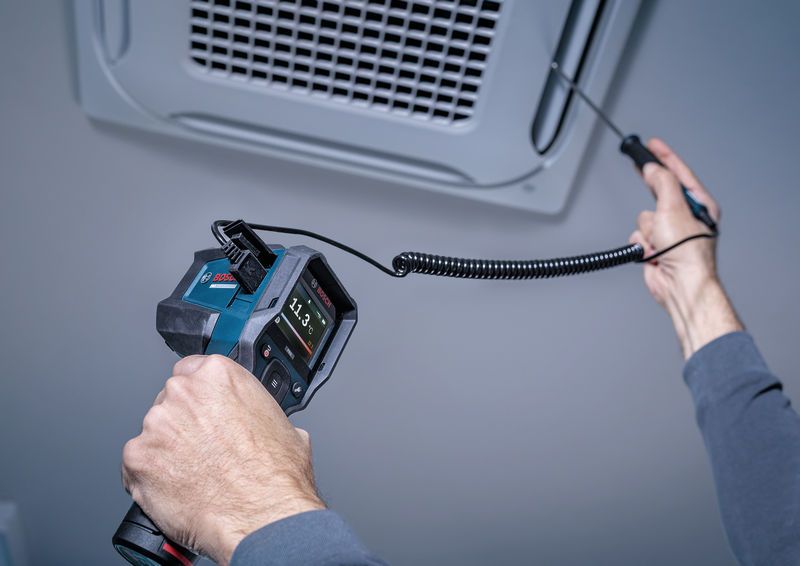

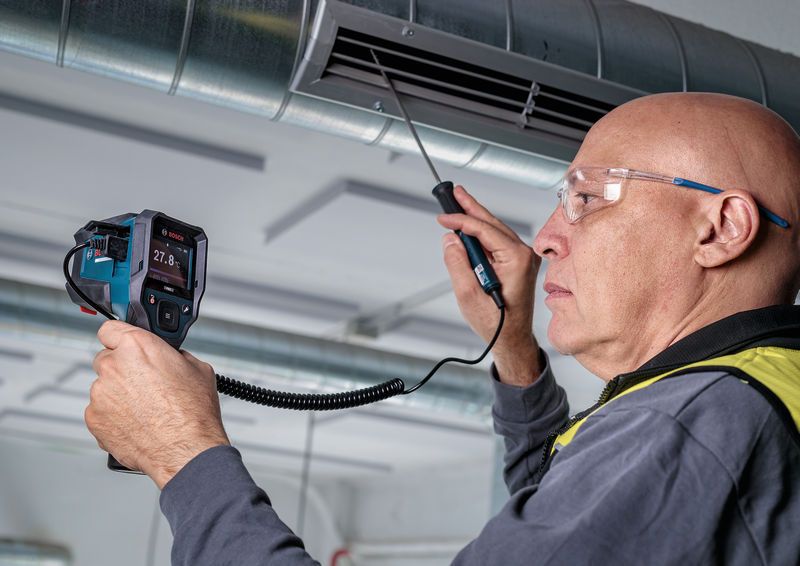

The GIS12V-800-16 stands out with its ability to perform accurate contact temperature measurements of reflective surfaces, liquids and direct airflow temperature using a Temperature Probe (Type K) – expanding its use cases beyond standard IR thermometers. It also supports higher temperature measurements and features two laser dots for easier alignment. Designed to bridge the gap between entry-level and expert tools, this thermometer empowers professionals with advanced capabilities – all while maintaining ease of use.
