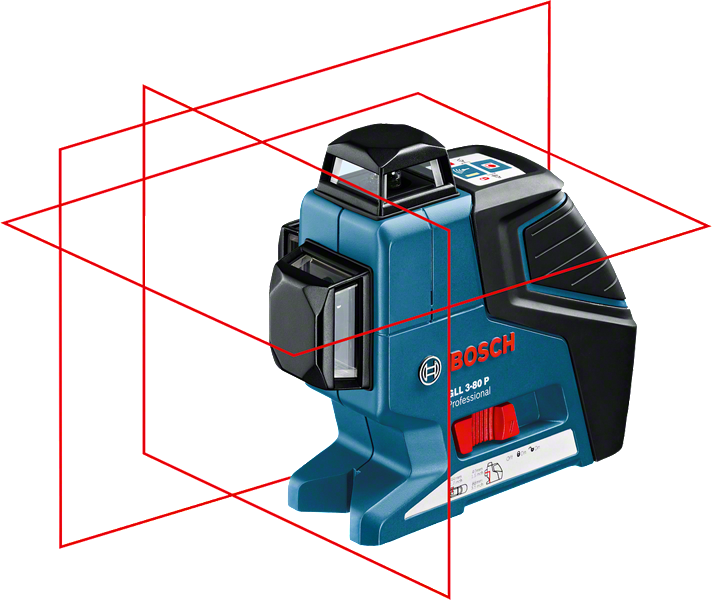

Line Laser GLL 3-80 P Professional

The compact Multi Line Laser for all indoor applications

Technical data
Additional data
Working range* 40 m
Working range with receiver* 80 m
Accuracy* ± 0.2 mm/m
Laser diode 640 nm, < 1 mW
Operating temperature, from -10 °C
Operating temperature, up to 40 °C
Operating temperature -10 – 40 °C
Storage temperature, from -20 °C
Storage temperature, up to 70 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range with receiver, value 80 m
Working range without receiver, value 40 m
Working range without receiver 40 m
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR03 (AAA)
Operating time (max.) 18 h in 1-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.74 kg
Projection 3 x 360° line

* Highlighted Data

Advantages

The compact Multi Line Laser for all indoor applications

  • One horizontal and 2 vertical 360° lines enable many new applications for simultaneous marking, alignment and levelling indoors
  • Self-levelling (4° in 4 sec), very precise (± 0.2 mm/m) and range of up to 80 m with receiver
  • Compact, easy-to-handle and extremely robust (IP54)

Functions

Laser class 2 Laser class for measuring tools.
360° planes Projects two vertical laser lines and a horizontal laser line to produce a triple 360° plane.
Working range + LR2 receiver Range with receiver 40 m
Working range Range 20 m
What’s Included in this Package
with 1 x battery (6LR61), accessory set
with 1 x battery (6LR61), accessory set
Order number: 0 601 063 30A
  • Universal mount BM 1 Professional 0 601 015 A01
  • Bracket for LR 2
  • Laser target plate
  • L-BOXX inlay accessories
  • Laser receiver LR 2 Professional 0 601 069 100
  • Protective Bag
  • 1 x 9 V block battery (6LR61)
  • 4 x 1.5 V LR6 battery (AA)
  • 1/2 L-BOXX inlay for tool 1 608 M00 C04

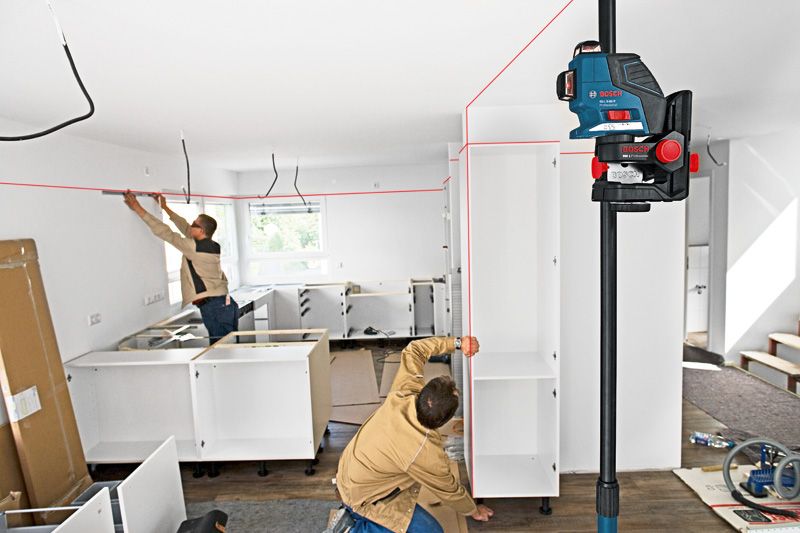

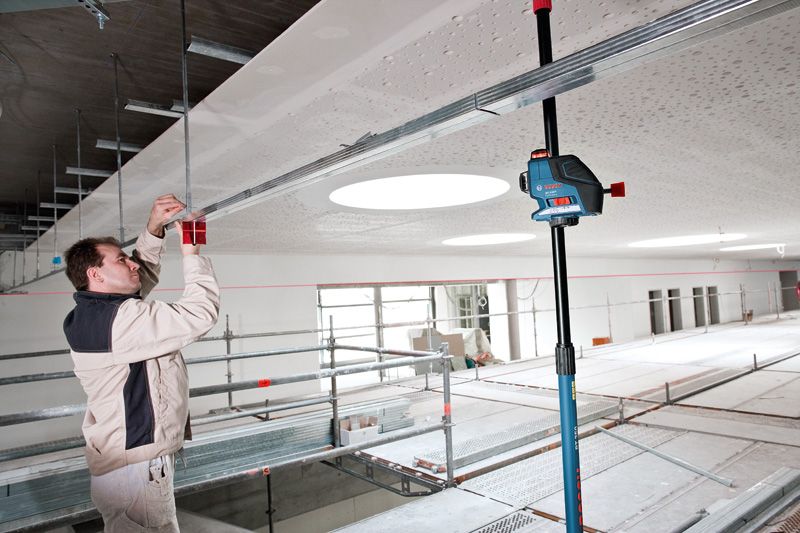

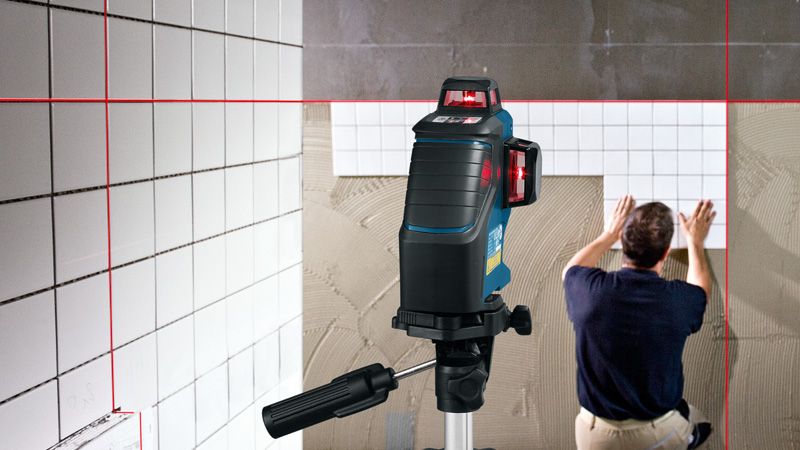

The GLL 3-80 P in action!
