Line lasers
GLL 8-40 E

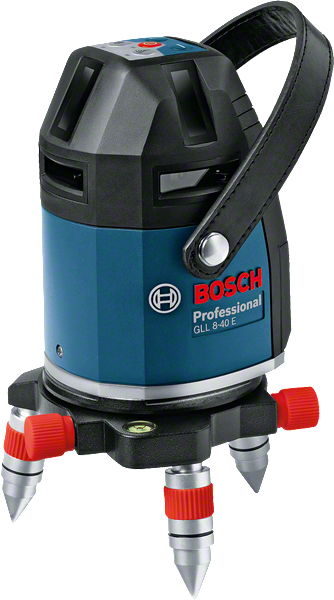

GLL 8-40 E Professional

Line Laser

No More Shaking - Bosch Electronic Line Laser Level

  • Smart - World class electronic levelling technology for comfortable line visibility and stability
  • Accurate - High levelling accuracy at ± 0.1 mm/m and 360° fine adjustment platform for maximal precision
  • Compact - Light and easy-to-carry with aluminium case providing quick and convenient mobility
  • Robust - IP 54 rated for maximum tool protection against splash water and dust for the toughest jobsite

Functions & key features

Laser class 2 Laser class for measuring tools.

Your Selection

  • in carrying case with 4 x battery (AA), laser receiver
Change variant

Currently not available online

Check availability on location
Find a local dealer
in carrying case with 4 x battery (AA), laser receiver 0 601 063 HB0
Find a local dealer

Select a variant

Your Selection

in carrying case with 4 x battery (AA), laser receiver

Order number: 0 601 063 HB0

Find a local dealer

Included in this variant

  • Laser viewing glasses red (BL-GLASS)
    Order number: 1 608 M00 05B
  • Laser receiver LR5 Professional
    Order number: 0 601 069 G80
  • Hand strap
  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Carrying case
  • 1 x 9 V block battery (6LR61)
Your selection

Your Selection

Order number: 0 601 063 HB1

Find a local dealer
Select Variant

Technical data

Additional data
Working range with receiver, value 40 m
Dust and splash protection IP 54
Working range 15 m
Working range with receiver 40 m
Accuracy ± 0.1 mm/m
Working range, value 15 m
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 2
Self-levelling range ± 3°
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 24 h
Tripod thread 5/8"
Weight, approx. 1.1 kg

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601K63H80

Product name

GLL 8-40 E

Description

Line Laser

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GLL 5-40 E | GLL 8-40 E (PDF 6.0 MB)
