Laser measures

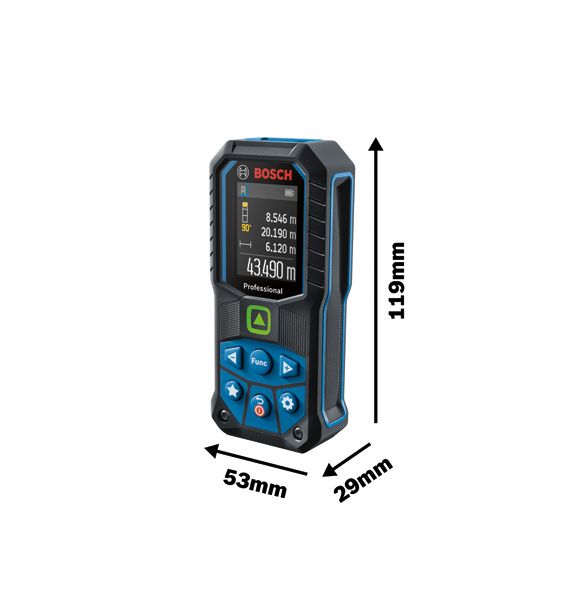

GLM 50-23 G

GLM 50-23 G Professional

Laser Measure

GLM 50-23 G

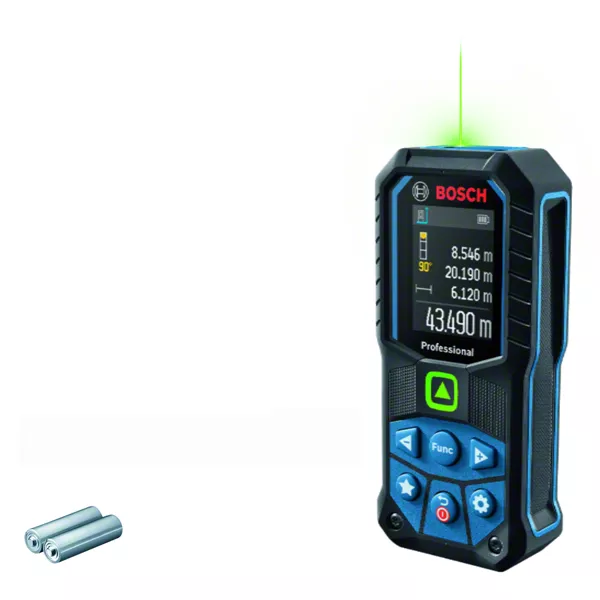

Outstandingly robust: 2-in-1 laser measure with green laser for rough jobsites

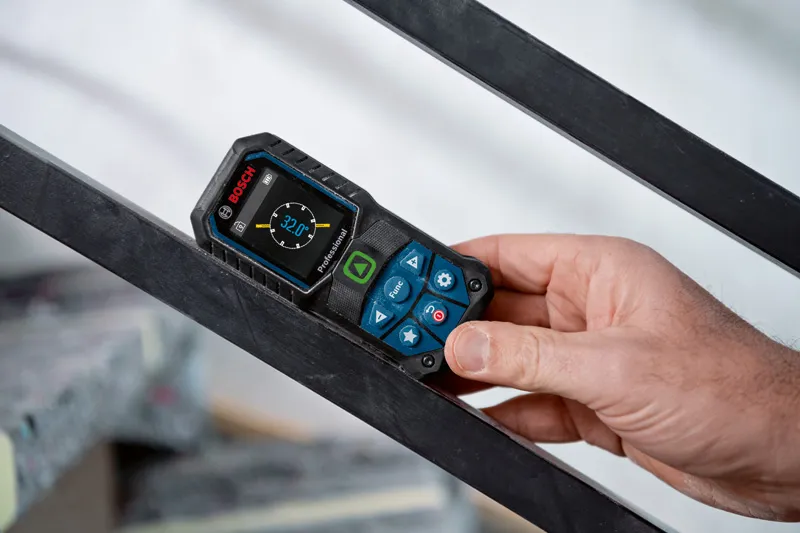

  • Integrated 360° tilt sensor for easy angle / inclination measurement, an added versatility to the laser measure
  • Intuitive user interface with additional supportive features (favourite button, colour display, help function) makes handling convenient
  • Ideal for demanding jobsites thanks to IP 65 protection, and shock-absorbing rubber casing

Functions & key features

Laser class 2 Laser class for measuring tools.

Your Selection

  • with 2 x battery (AA), Manufacturer’s certificate
Show variant

Currently not available online

Check availability on location
Find a local dealer
with 2 x battery (AA), Manufacturer’s certificate 0 601 072 VK0
Find a local dealer

GLM 50-23 G Professional

Your Selection

with 2 x battery (AA), Manufacturer’s certificate

Order number: 0 601 072 VK0

Find a local dealer

Included in this variant

  • Manufacturer’s certificate
  • 2 x 1.5 V LR6 battery (AA)
Your selection

Technical data

Additional data
Dust and splash protection IP 65
Measurement time, typical < 0.5 s
Units of measurement m/cm, ft/inch
Laser diode 515 nm, < 1 mW
Measurement range 0.05 – 50.00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mm* (*plus use-dependent deviation)
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°* (*plus use-dependent deviation)
Measurement time, max. 4 s
Power supply 2 x 1.5 V LR6 (AA)
Automatic deactivation 5 min
Weight, approx. 0.2 kg
Memory capacity (values) 30
Tripod thread 1/4"
Laser colour Green
Measuring range, up to 50 m

GLM 50-23 G Professional: Further information

Product Highlights

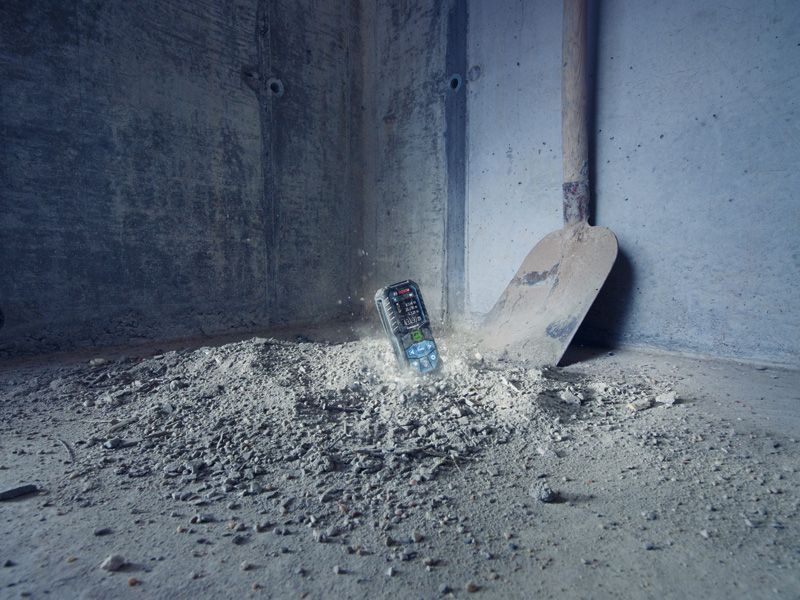

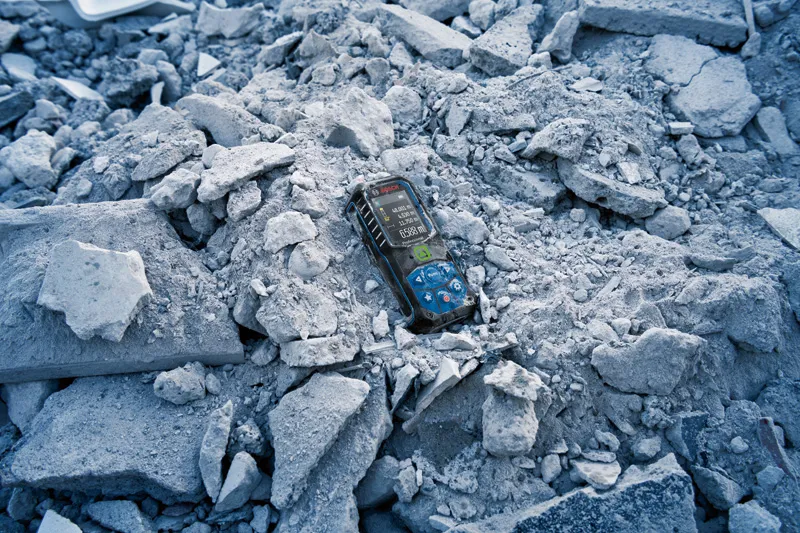

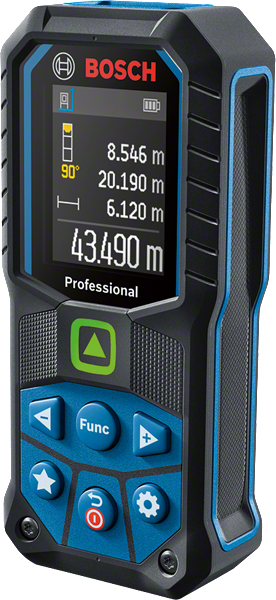

The laser measure GLM 50-23 G Professional offers a highly durable design and green laser spot with integrated inclinometer. Thanks to the IP 65 protection-certified design and a shock-absorbing rubber casing, the tool is protected against jet water and ingress of dust. Intuitive handling is ensured by its smart user interface with many helpful features such as a high-end colour display, a handy help function and a dedicated favourite shortcut button.

Equipment & Application

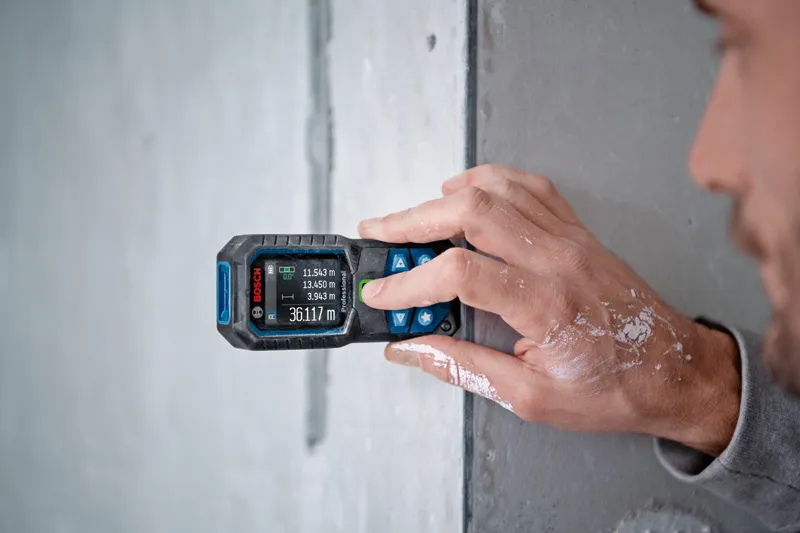

Being able to calculate material needs, room and wall areas, it is the ideal choice for architects, electricians, and many other professionals.

Additional Information

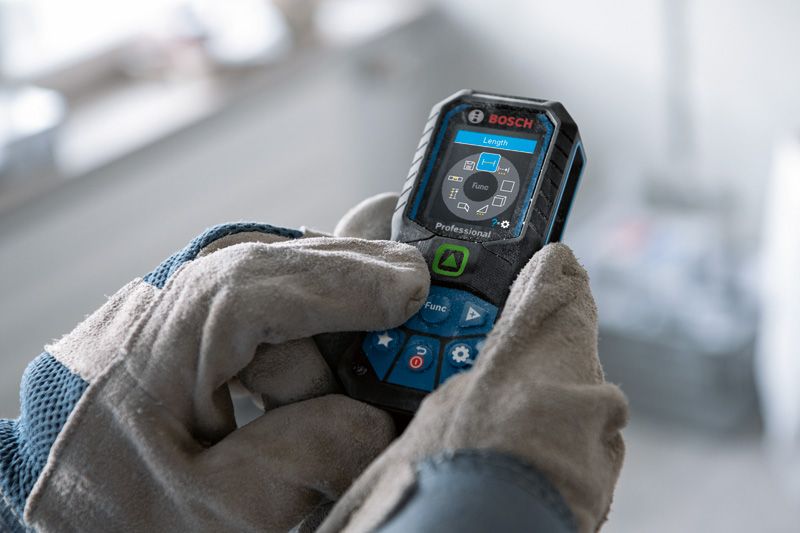

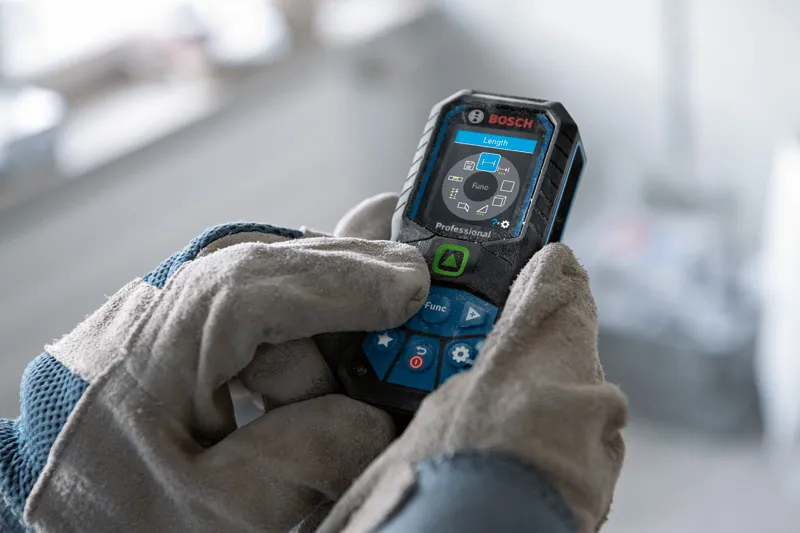

It comes with a dedicated favourite shortcut button. Users can then instantly access the preset measuring function by simply pressing the favourite button without the need to scroll through the HMI.

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601K72VK0

Product name

GLM 50-23 G

Description

Laser Measure

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GLM 50-23 G (PDF 2.7 MB)
