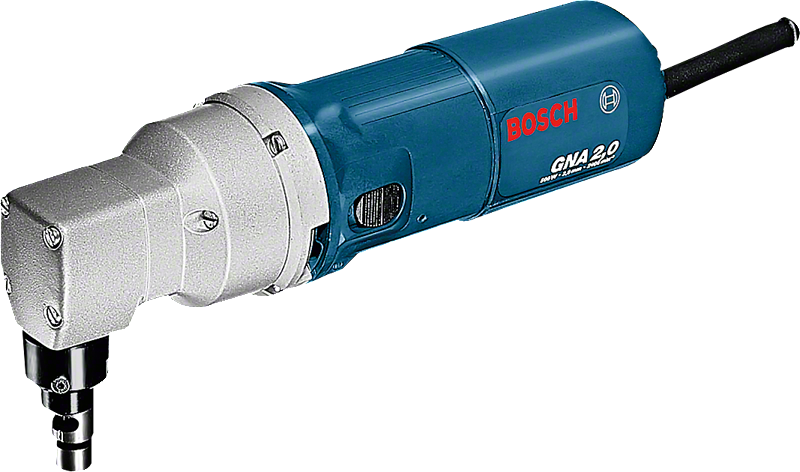

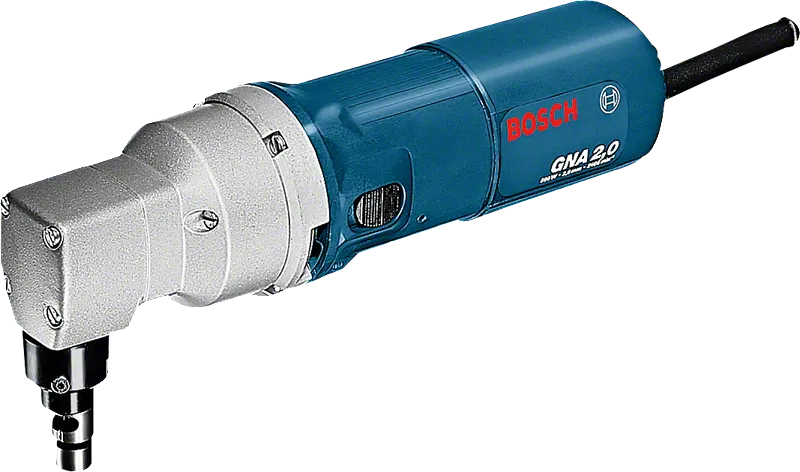

Nibbler GNA 2,0 Professional
The handy tool for cut-outs of all kinds
Technical data
| Additional data | |
|---|---|
| Cutting capacity in steel (400 N/mm²), max. | 2 mm |
| No-load stroke rate | 2,400 spm |
| Material that can be processed | Steel up to 400 N/mm² at 2.0 mm |
| Cutting track width | 6 mm |
| Pre-drilling for interior cut-outs | 16 mm |
| Smallest radius | 3 mm |
| Stroke rate under load | 1,500 spm |
| Weight | 2 kg |

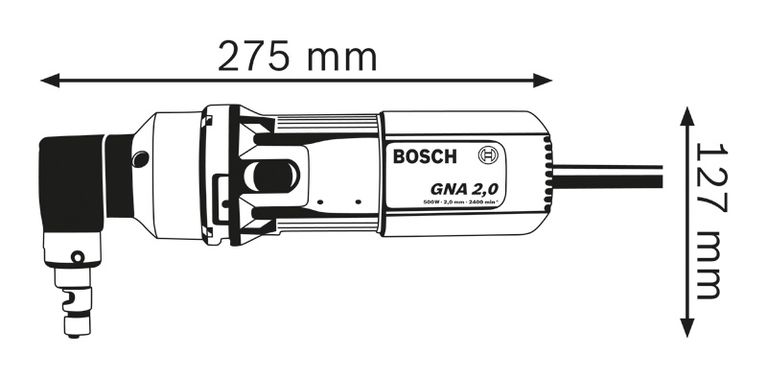

| Tool dimensions (length) | 275 mm |
| Tool dimensions (height) | 127 mm |
| Cutting capacity in steel (600 N/mm²), max. | 1.4 mm |
| Cutting capacity in steel (800 N/mm²), max. | 1 mm |
| Cutting capacity in aluminium (200 N/mm²), max. | 2.5 mm |
| Electric specifications | |
|---|---|
| Rated input power | 500 W |
| Power output | 270 W |
| Total vibration values (Cutting sheet metal) | |
|---|---|
| Vibration emission value ah | 11 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
The handy tool for cut-outs of all kinds
- 500 watts of power
- Slim, narrow design for optimum handling
- Swivel-mounted die plate for better manoeuvrability in corners
Functions
What’s Included in this Package
with hex key
Order number:
0 601 530 103
- Hex key WAF 2.5 (spare part number 1 907 950 003)

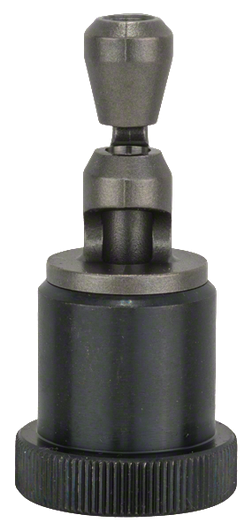

- Die plate 2 608 639 900
- Punch 2 608 639 013
