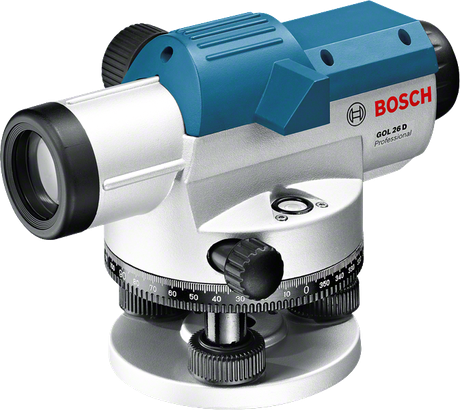

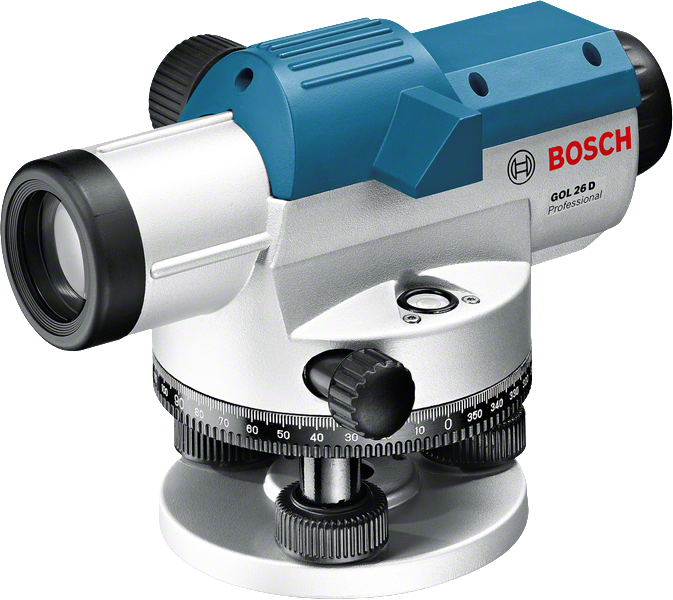

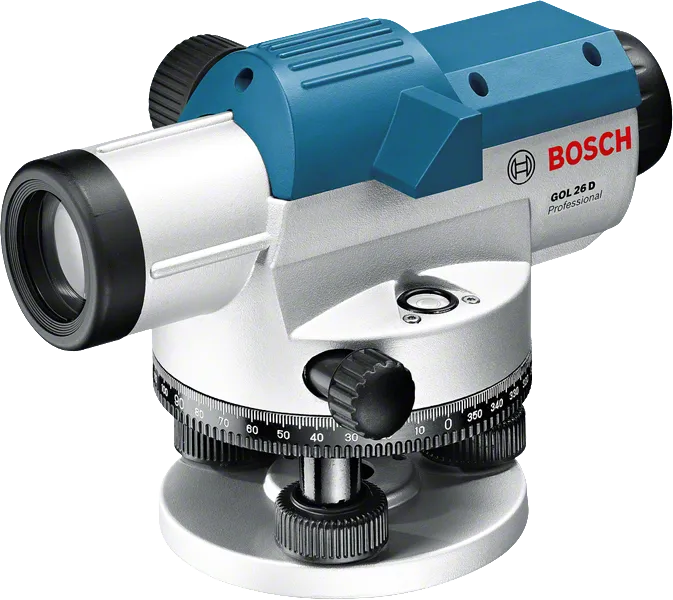

Optical Level GOL 26 D Professional

Extremely robust – ideal for outdoor use

Technical data
Additional data
Unit of measure* 360 degrees
Magnification* 26 x
Accuracy* 1.6 mm at 30 m
Working range, sign up to
Working range, value 100   m
Working range up to 100   m
Dust and splash protection IP 54
Tripod thread 5/8"
Operating temperature, from -10   °C
Operating temperature, up to 50   °C
Operating temperature -10 – 50   °C
Storage temperature, from -20   °C
Storage temperature, up to 70   °C
Storage temperature -20 – 70   °C
Weight, approx. 1.5   kg

* Highlighted Data

Advantages

Extremely robust – ideal for outdoor use

  • Designed for outdoor use due to sturdy metal housing with dust and splash protection (IP54)
  • Robust design with built-in target collimator and integrated circular vial
  • Compensator lock for safe transport

Functions

Levelling accuracy 1.6 mm - 30 m Measuring accuracy of 1.6 mm/30 m
Dual levelling element Prevent errors due to dual levelling element
Magnification 26x Magnification up to 26x
Working range 100 m Range up to max. 100 m

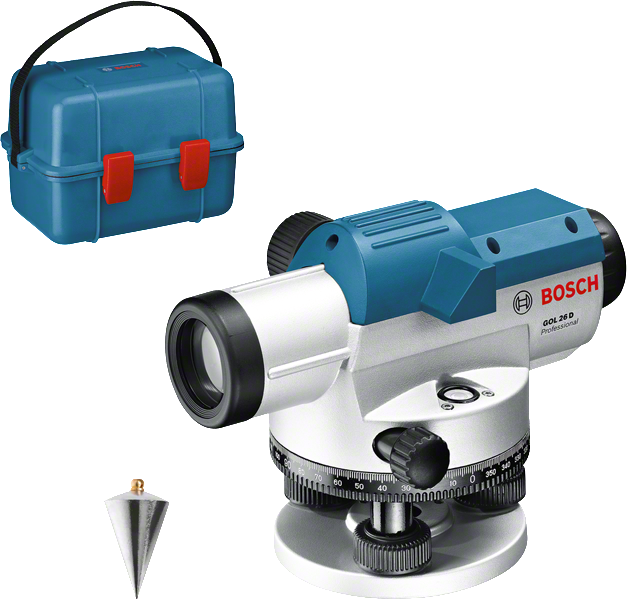

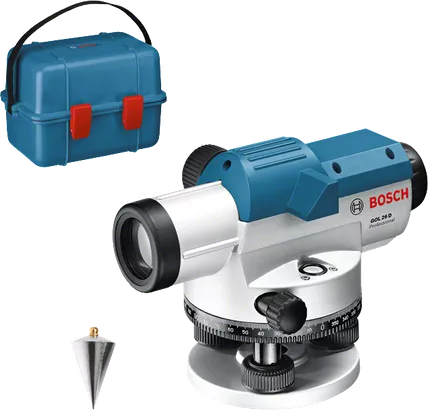

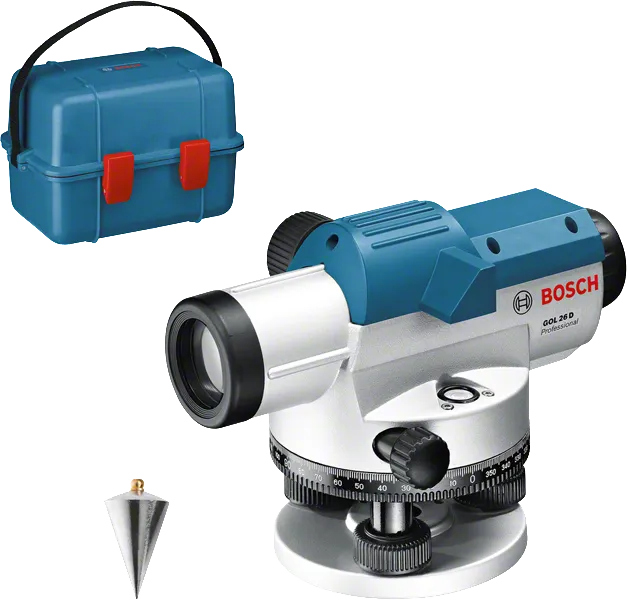

What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 601 068 000
  • Adjusting pin
  • Allen key
  • Carrying case 1 600 A00 0LF
  • Lens cover
  • Plumb bob

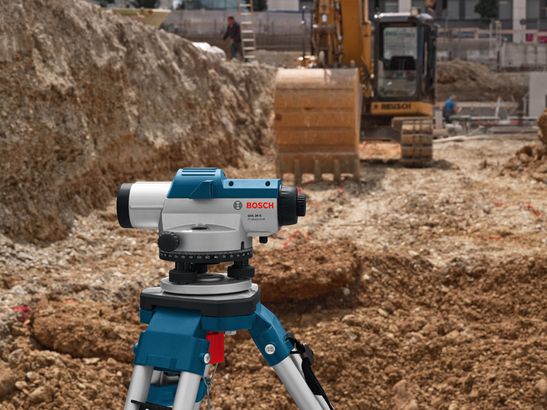

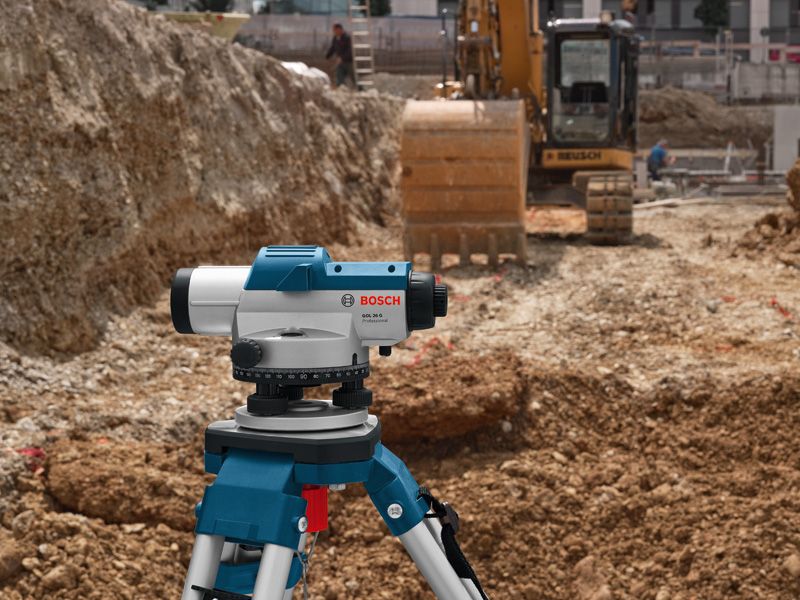

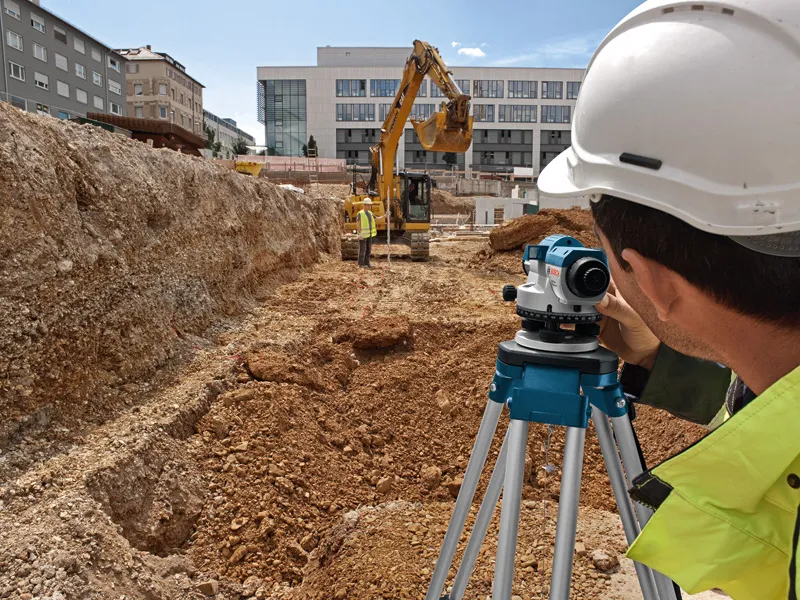

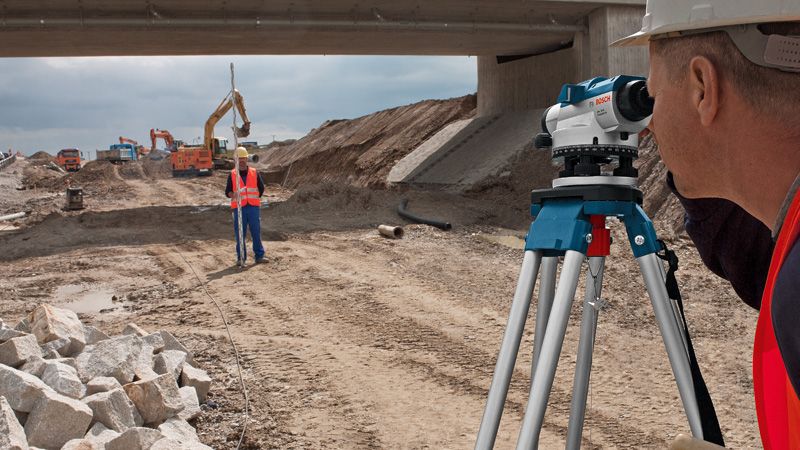

The GOL 26 D in action!
