Rotation lasers

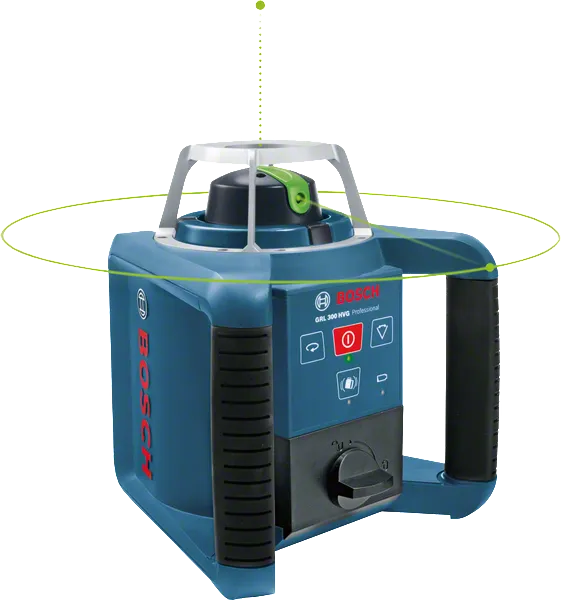

GRL 300 HVG Set Professional

Name: GRL 300 HVG Set
Brand: Bosch power tools
SKU: 0601061703

Rotation Laser

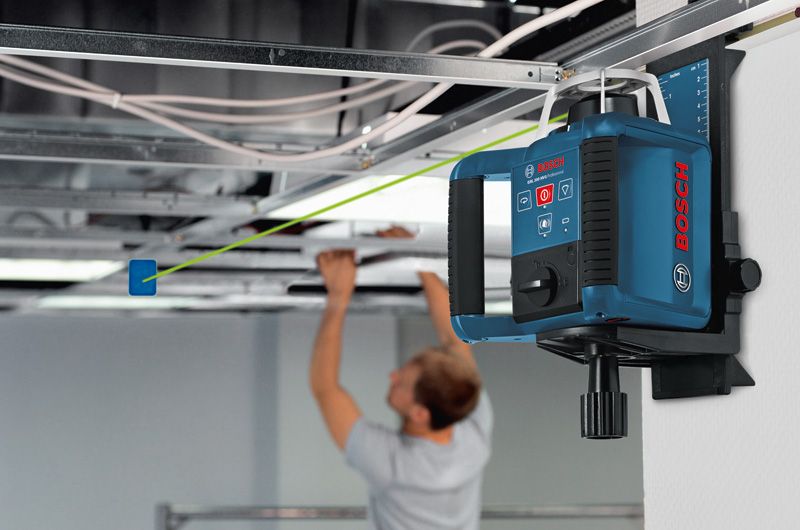

Outstanding visibility for indoor applications

Green laser line: up to four times better visibility than a red line
Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

Functions & key features

Your Selection

with 2 x battery (LR20), receiver

Show variant

Currently not available online

Check availability on location

Find a local dealer

Your Selected Variant

with 2 x battery (LR20), receiver 0 601 061 703

Find a local dealer

GRL 300 HVG Set Professional

Your Selection

with 2 x battery (LR20), receiver

Order number: 0 601 061 703

Find a local dealer

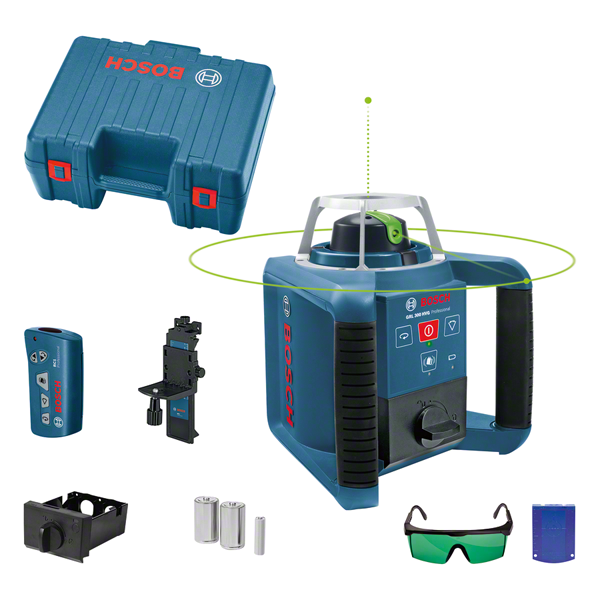

Included in this variant

Bracket

Order number: 1 608 M00 05A
Universal mount WM 4 Professional

Order number: 0 601 092 400
Laser target (blue) (spare part number 1 608 M00 05K)
1 x 1.5 V LR6 battery (AA)

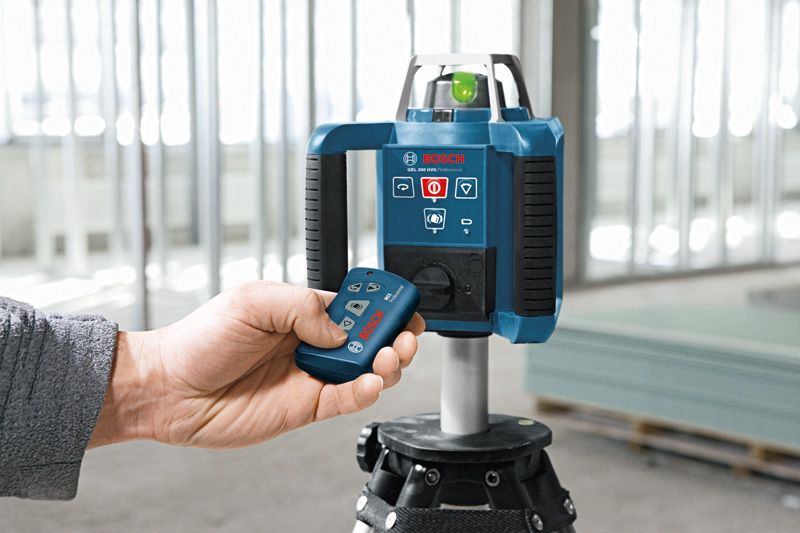

Remote control RC1 Professional

Order number: 0 601 069 900
2 x 1.5 V LR20 battery (D)

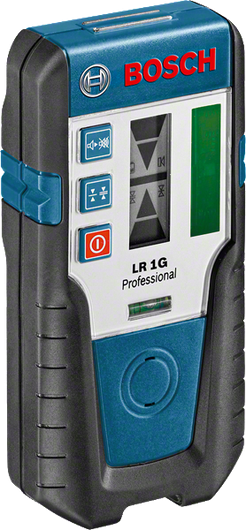

Laser receiver LR 1G Professional

Order number: 0 601 069 700
Laser viewing glasses (green) (spare part number 1 608 M00 05J)
1 x 9 V block battery (6LR61)

Your selection

Technical data

Additional data
Working range with receiver, value	300 m
Dust and splash protection	IP 54
Working range, value	100 m
Laser diode	532 nm, < 5 mW
Operating temperature	0 – 40 °C
Storage temperature	-20 – 70 °C
Laser class	3R
Working range	100 m
Working range with receiver	300 m (Diameter)
Working range without receiver	100 m (Diameter)
Accuracy	± 3.0 mm at 30 m* (*plus use-dependent deviation)
Self-levelling range	± 5° (8%)
Levelling time	15 s
Rotation speed	150, 300, 600 rpm
Power supply	2 x 1.5 V LR20 (D)
Tripod thread	5/8"
Weight, approx.	1.8 kg
Colour of laser line	green
Compatible laser receivers	LR 1G
Slope function	no

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
