Technical data
| Additional data | |
|---|---|
| Battery voltage* | 12 V |
| Weight excl. battery | 0.9 kg |
| Torque (soft/hard/max.) | 14/30/- Nm |
| No-load speed (1st gear / 2nd gear) | 0 – 400 / 0 – 1,500 rpm |
| Battery type | Lithium-ion |
| Max. impact rate | 22,500 bpm |
| Chuck capacity, min./max. | 1.5 / 10 mm |
| Torque settings | 20+2 |
| Tool holder | Three-jaw chuck |
| Drilling diameter | |
|---|---|
| Max. drilling diameter in wood | 20 mm |
| Max. drilling diameter in steel | 10 mm |
| Max. drilling diameter in masonry* | 8 mm |
| Max. screw diameter* | 7 mm |
| Screw diameter | |
|---|---|
| Max. drilling diameter in wood | 20 mm |
| Max. drilling diameter in steel | 10 mm |
| Max. drilling diameter in masonry* | 8 mm |
| Max. screw diameter* | 7 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 1.4 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Impact drilling in masonry) | |
|---|---|
| Vibration emission value ah | 10.2 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 0.8 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 82.5 dB(A); Sound power level 93.5 dB(A). Uncertainty K= 3 dB.
Advantages
Highly flexible, highly economical
- Power and flexibility within reach for screwdriving and drilling
- 2-speed gearbox enables high productivity and excellent torque
- Electronic Cell Protection for longer battery life and more durability
Functions

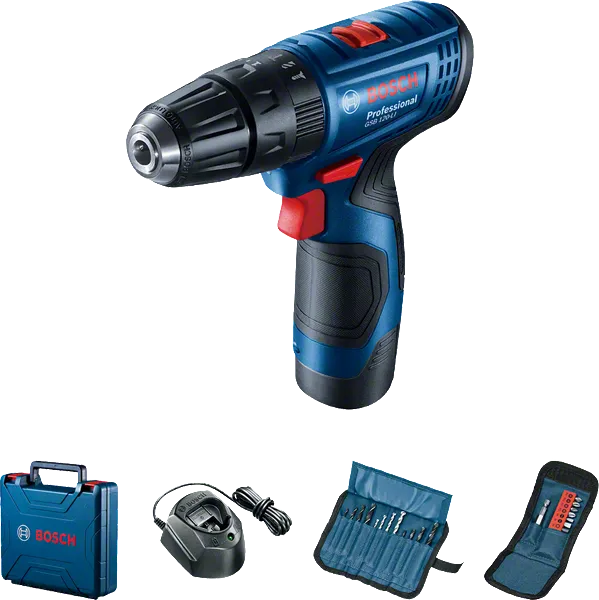

What’s Included in this Package
in carrying case with 2 x 1.5 Ah Li-ion battery
Order number:
0 601 9G8 1L0
- 2 x battery GBA 12V 1.5Ah 1 600 Z00 02W
- Charger GAL 1210 CV Professional
- Carrying case
