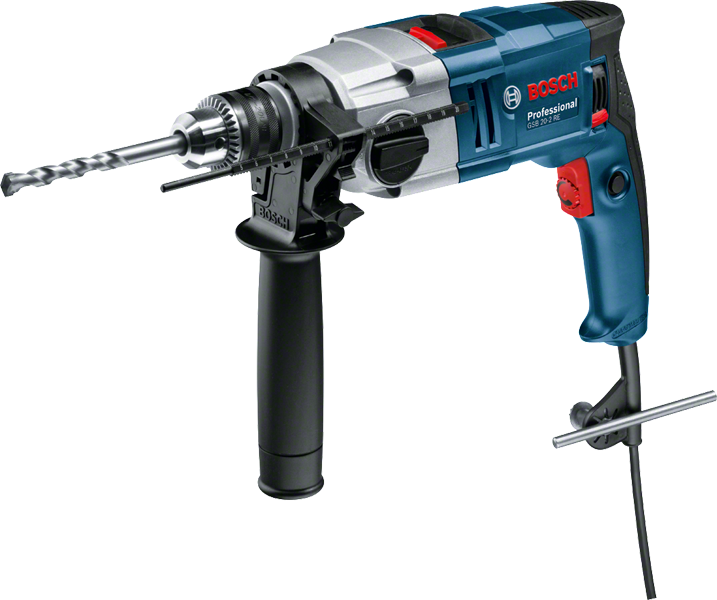

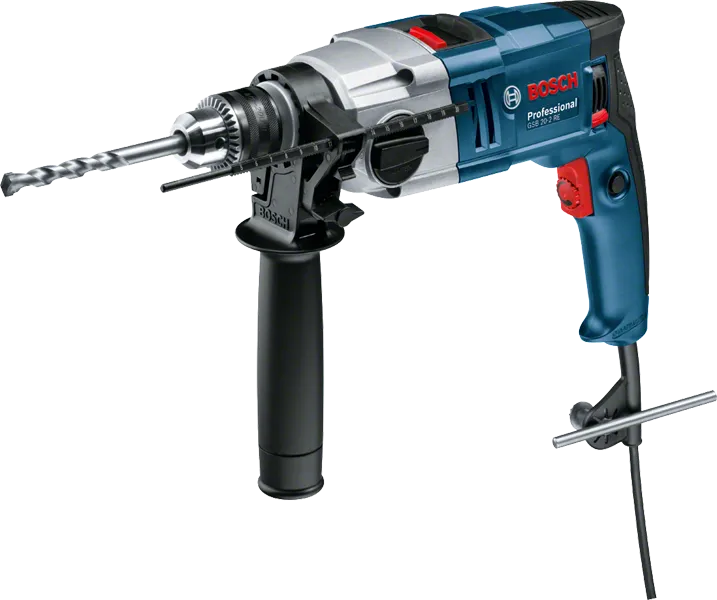

Impact Drill GSB 20-2 RE Professional

Powerful, dual-speed impact drill with superior durability and performance

Technical data
Additional data
Rated input power* 800   W
Weight 2.5   kg
No-load speed, 1st gear 0 – 1,100   rpm
No-load speed, 2nd gear 3,000   rpm
Rated speed 740 / 2   rpm
Rated torque 5.2 / 2.0   Nm
Chuck capacity, min./max. 1.5 – 13   mm

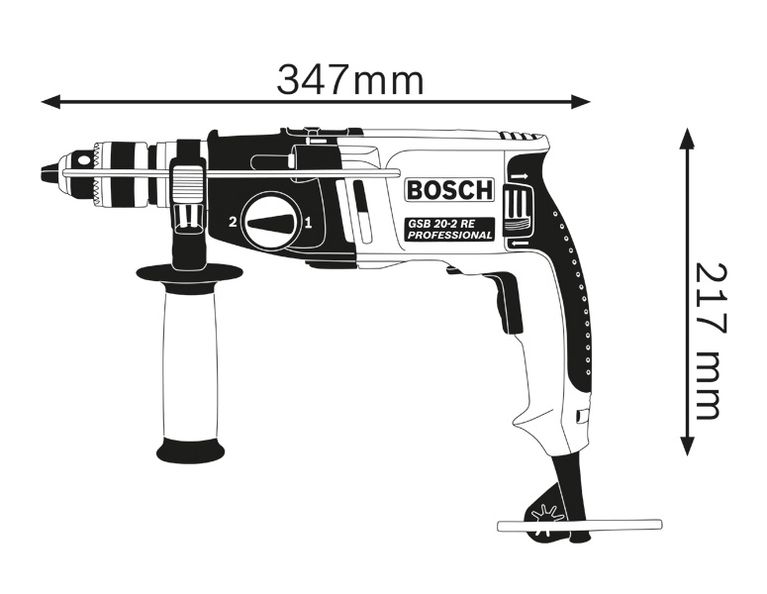

Tool dimensions (width) 85   mm
Tool dimensions (length) 346   mm
Tool dimensions (height) 220   mm
Impact rate at no-load speed 0 – 48,000   bpm
Drilling range
Drilling diameter in concrete 16 / 20   mm
Drilling diameter in wood* 25 / 40   mm
Drilling diameter in steel 8 / 13   mm
Drilling diameter in masonry* 22   mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.


Powerful, dual-speed impact drill with superior durability and performance

  • Increased robustness with pot stacked metal gear housing design
  • Powerful 800 W motor for enhanced performance and durability
  • 2 gear functionality for dual speed coupled with dual mode impact shifter for increased versatility


Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Woodworking The professional power tools for woodworking from Bosch.
What’s Included in this Package
in carrying case with Auxiliary handle
in carrying case with Auxiliary handle
Order number: 0 601 1A2 1L0
  • Auxiliary handle
  • Carrying case
  • Chuck key
  • Depth gauge

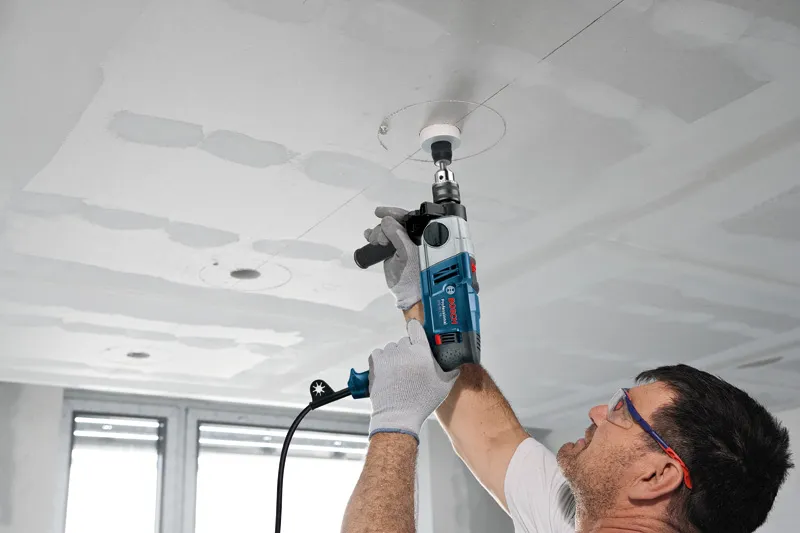

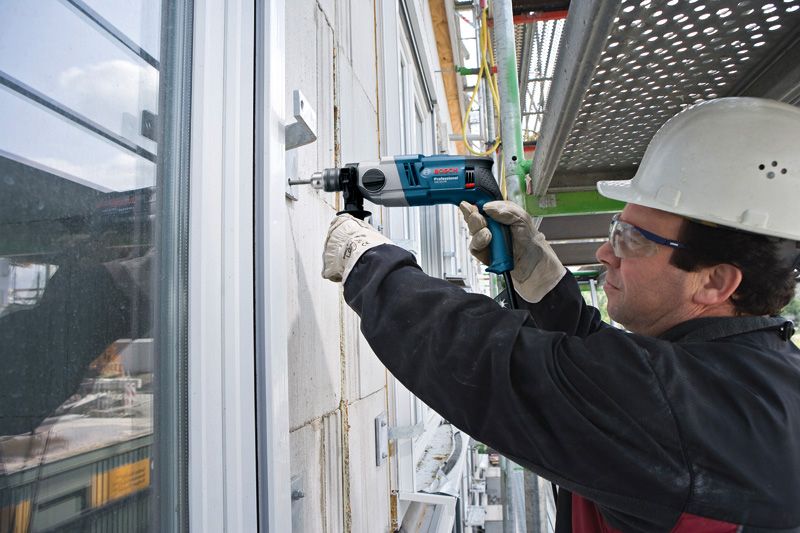

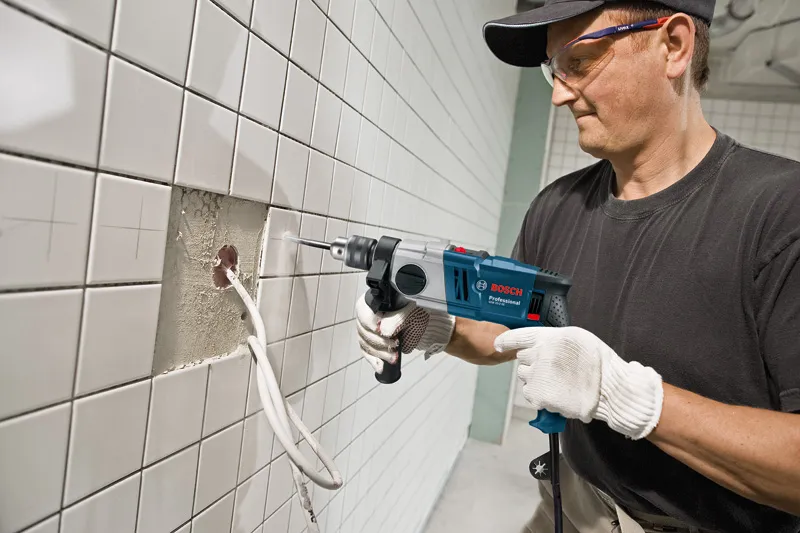

The GSB 20-2 RE in action!
