Technical data
| Additional data | |
|---|---|
| Battery voltage* | 12 V |
| Weight excl. battery* | 0.6 kg |
| Torque (soft/hard/max.) | 15/30/- Nm |
| No-load speed (1st gear / 2nd gear) | 0 – 400 / 0 – 1,300 rpm |
| Battery type | Lithium-ion |
| Chuck capacity, min./max. | 1 / 10 mm |
| Torque settings | 20+1 |
| Tool holder | 1/4" internal hexagon |
| Drilling diameter | |
|---|---|
| Max. drilling diameter in wood | 30 mm |
| Max. drilling diameter in steel | 10 mm |
| Max. screw diameter* | 7 mm |
| Screw diameter | |
|---|---|
| Max. drilling diameter in wood | 30 mm |
| Max. drilling diameter in steel | 10 mm |
| Max. screw diameter* | 7 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 79 dB(A); Sound power level dB(A). Uncertainty K= 3 dB.
Advantages
Compact and flexible for any job in the 12 Volt class
- Extremely short body design of 132 mm for drilling, fixing and screw driving in tight spaces
- Bosch FlexiClick interface with integrated magnetic bit holder enables attachment of a bit holder, a chuck adapter, an angle adapter and an offset angle adapter
- Angle and offset angle adapters can be adjusted and locked in 16 different positions with 360-degree mobility while on the drill
- “One-Click” interface ensures a tight fix to the machine at a glance
Functions

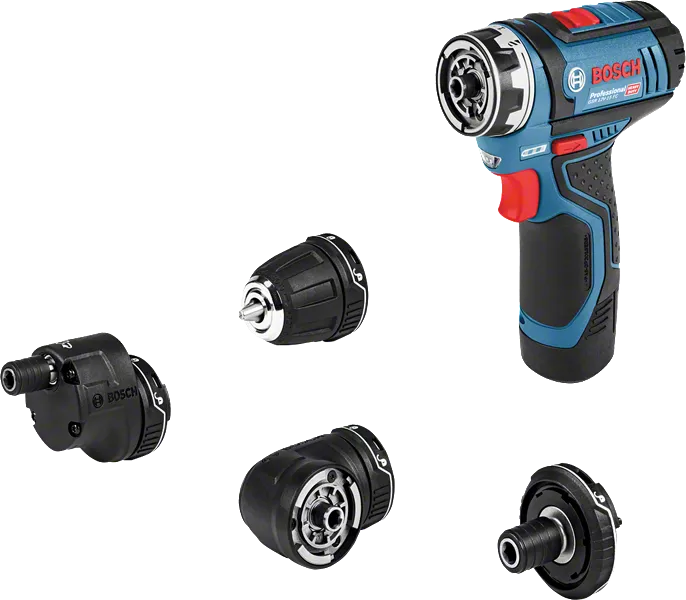

What’s Included in this Package *
with accessory set
Order number:
0 601 9F6 0L0
- Drill chuck adapter GFA 12-B 1 600 A01 169
- Offset angle adapter GFA 12-E 1 600 A00 F5N
- Angle adapter GFA 12-W Professional 1 600 A01 16A
* Battery and charger not included
