Technical data
| Additional data | |
|---|---|
| Battery voltage* | 18 V |
| Weight excl. battery* | 1 kg |
| Torque (max) | 50 Nm |
| Torque (soft/hard/max.) | 28/50/50 Nm |
| No-load speed (1st gear / 2nd gear) | 0 – 460 / 0 – 1,800 rpm |
| Battery type | Lithium-ion |
| Chuck capacity, min./max. | 1.5 / 13 mm |
| Torque settings | 20+1 |
| Drilling diameter | |
|---|---|
| Max. drilling diameter in aluminium | 13 mm |
| Max. drilling diameter in wood | 35 mm |
| Max. drilling diameter in steel | 13 mm |
| Max. screw diameter* | 10 mm |
| Screw diameter | |
|---|---|
| Max. drilling diameter in aluminium | 13 mm |
| Max. drilling diameter in wood | 35 mm |
| Max. drilling diameter in steel | 13 mm |
| Max. screw diameter* | 10 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 1.4 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Impact drilling in masonry) | |
|---|---|
| Vibration emission value ah | 11.2 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 88 dB(A); Sound power level 99 dB(A). Uncertainty K= 5 dB.
Advantages
Robust brushless motor for durability
- Intelligent brushless motor for efficiency, endurance, and compactness
- Robust metal chuck and compact ergonomic design ideal for heavy-duty jobs
- Professional 18V System works with Bosch batteries and chargers of the same voltage
Functions
What’s Included in this Package

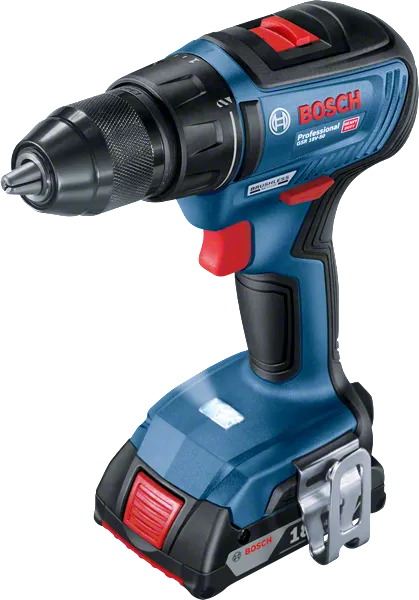

GSR 18V-50 Professional
Order number:
0 601 9H5 0L0
- 2 x battery GBA 18V 2.0Ah 1 600 A00 1CD
- Quick charger GAL 18V-40 Professional 1 600 A01 B92
- L-CASE
