Line lasers
GTL 3

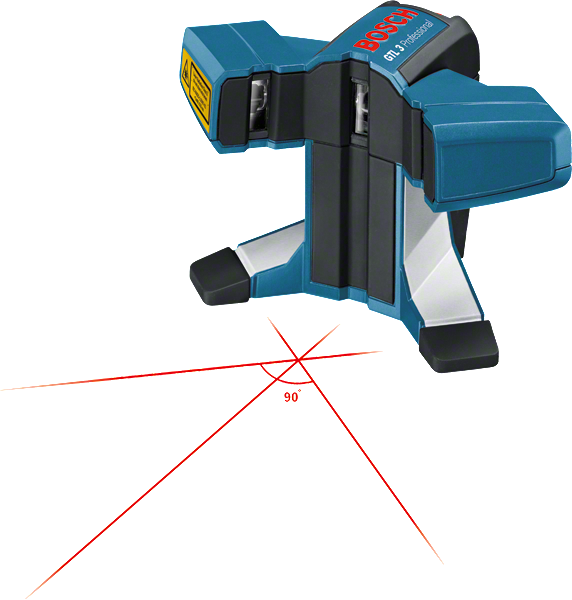

GTL 3 Professional

Tile Laser

Fast tile laying due to additional line at 45°

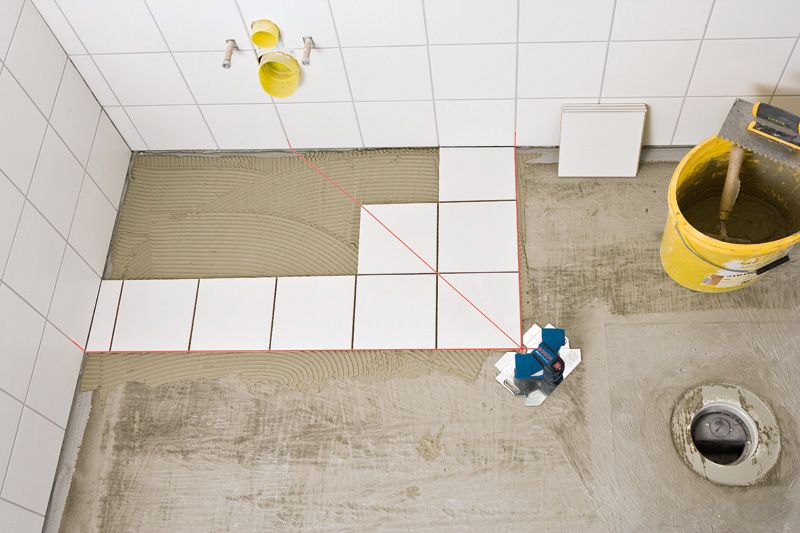

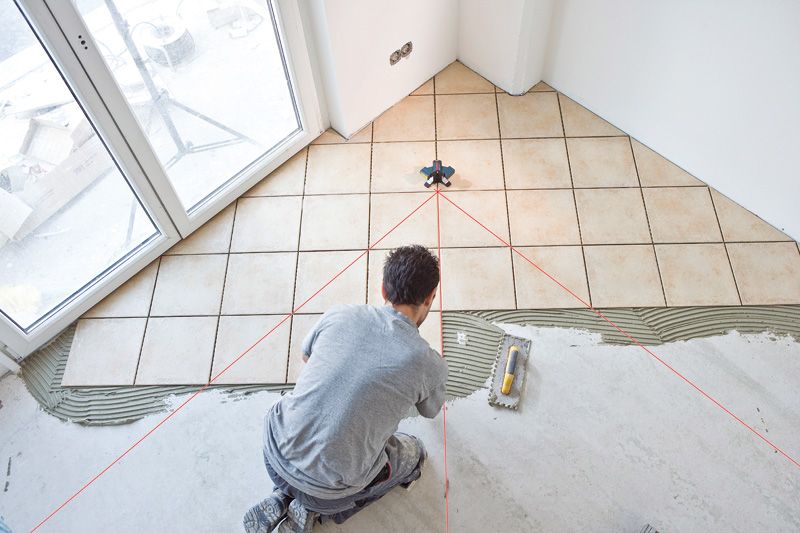

  • In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
  • High accuracy of 0.2 mm/m
  • Compact and lightweight design for optimum ease of use

Functions & key features

Line configuration
Working range up to 20 m
Laser class 2
Power supply 4 x AA battery
IP54 dust and splash water protection

Your Selection

  • with 4 x battery (AA), accessory set
Show variant

Currently not available online

Check availability on location
Find a local dealer
with 4 x battery (AA), accessory set 0 601 015 200
Find a local dealer

GTL 3 Professional

Your Selection

with 4 x battery (AA), accessory set

Order number: 0 601 015 200

Find a local dealer

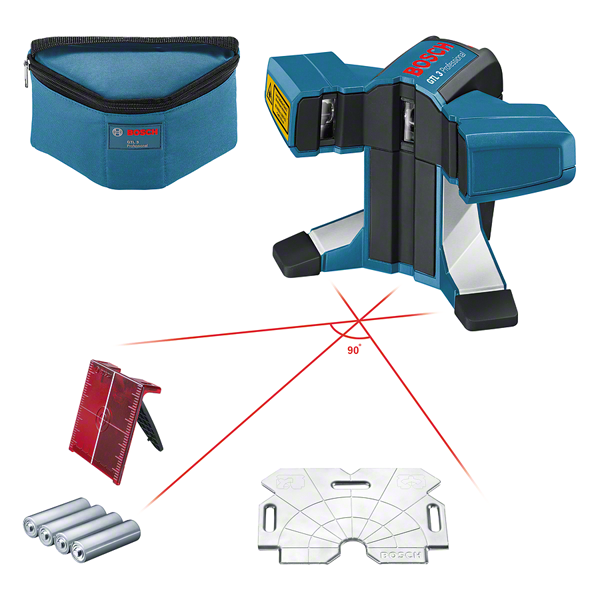

Included in this variant

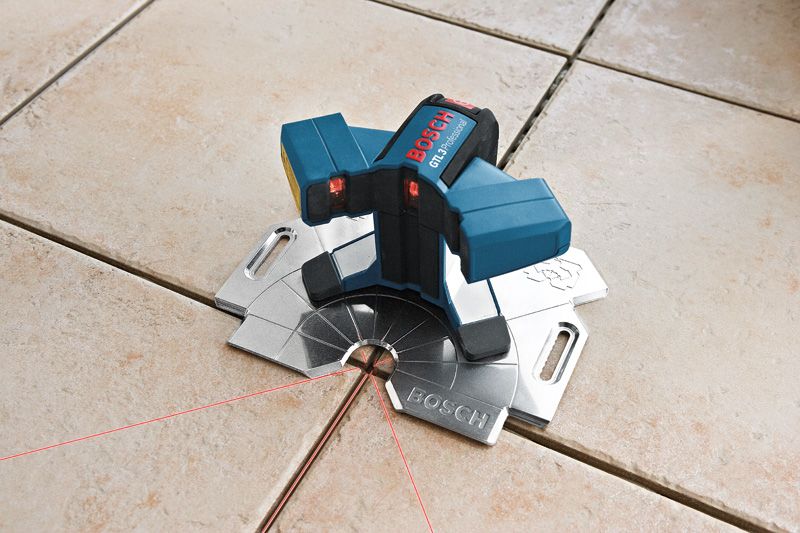

  • Alignment disc
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
Your selection

Technical data

Additional data
Dust and splash protection IP 54
Working range 20 m
Projection 3 lines
Working range, value 20 m
Laser diode 630 – 650 nm
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range with target plate 20 m
Angular accuracy (between 0 – 90° angle) ±0.2 mm/m* (*plus use-dependent deviation)
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 18 h in 2-line mode, 12 h in 3-line mode

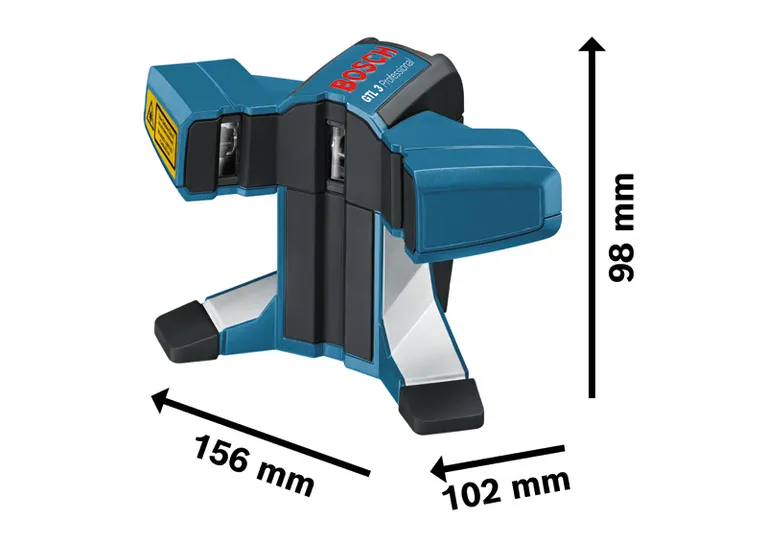

Weight, approx. 0.44 kg

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601K15200

Product name

GTL 3

Description

Tile Laser

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GTL 3 (PDF 5.9 MB) Instruction manual | GTL 3 (Online version)
