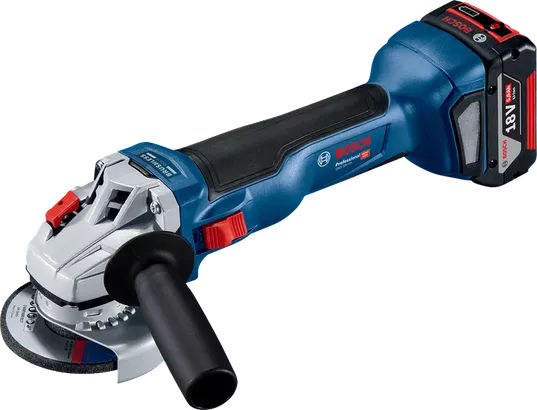

Cordless Angle Grinder GWS 18V-10 Professional

Heavy duty cordless small angle grinder.

Technical data
Additional data
Battery voltage* 18   V
No-load speed* 9,000   rpm
Grinding spindle thread M 10
Weight excl. battery 2.1   kg
Tools
Grinding/cutting disc, diameter* 100   mm
Total vibration values (Surface grinding (roughing))
Vibration emission value ah 6.7   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Sanding with sanding sheet)
Vibration emission value ah 1.9   m/s²
Uncertainty K 1.5   m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 78.5 dB(A); Sound power level 89.5 dB(A). Uncertainty K= 3 dB.

Advantages

Heavy duty cordless small angle grinder.

  • The next level of power & run time - new brushless motor and ProCORE18V batteries.
  • Premium user protection - Drop Control, Fast Brake and KickBack Control
  • Premium tool control - keyless protective cover, keyless clamping nut (M14 only), slimmer grip design. New friendly switch button design.

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Metalworking The professional power tools for metalworking from Bosch.
Longer motor life - more runtime - more power thanks to brushless motor
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Icon
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology
Enhanced user protection thanks to the Drop Control function the tool switches off when dropped accidentally
Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Outstanding user protection thanks to the anti-rotation protective guard - stands firm, even if the disc breaks
Easy disc / tool change thanks to spindle lock
Battery 100 percent compatible with all tools within its voltage class Choose the XL battery for longest runtime or the compact battery for best handling
Comfortable handling of the tool thanks to softgrip
Disc diameter 100 mm
Icon

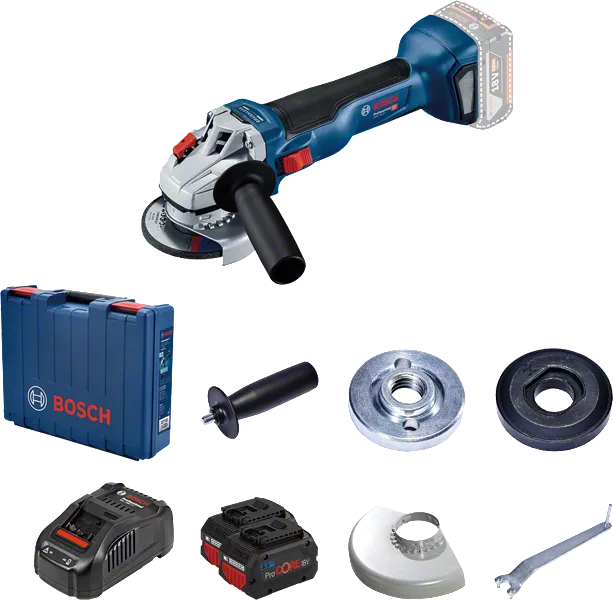

What’s Included in this Package
in carrying bag with flange
in carrying bag with flange
Order number: 0 601 9J4 0L1
  • Clamping flange 1 619 P12 159
  • Locking nut, M10 (spare part number 1 619 P09 976)
  • Protective guard 1 619 P02 125
  • Two-hole spanner (spare part number 1 619 P08 928)
  • Carrying case
The GWS 18V-10 in action!
