SDS plus-1 Drill Bits

Product highlights

SDS plus-1 Drill Bit is optimised for drilling in concrete

2-cutter Tungsten Carbide plate makes the bit extra tough
2-flute U-shape flute design provides effective dust removal and standard lifetime

Go to product range

Product descriptions

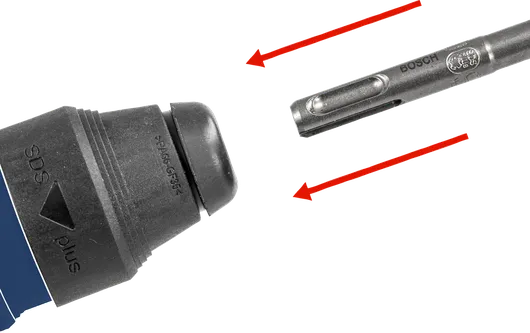

The SDS plus-1 Drill Bit is optimised for drilling concrete. Its 2-cutter Tungsten Carbide plate makes the bit extra tough while its 2-flute U-shape flute design provides effective dust removal and standard lifetime. The bit is intended for use on masonry and concrete. It is compatible with all rotary hammers with SDS plus holder.

Functions

Product range

Please click on the arrow next to any of the product variations to see more information and buying options.

39 Available product variations

Part number	Diameter (D) mm	Working length (L1) mm	Total length (L2) mm	Pack quantity
2 608 680 257	4.00	50	110	1 Pcs

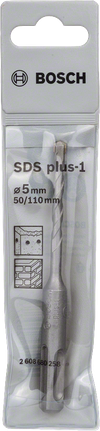

2 608 680 258	5.00	50	110	1 Pcs
2 608 680 259	5.00	100	160	1 Pcs
2 608 680 260	5.50	50	110	1 Pcs
2 608 680 261	5.50	100	160	1 Pcs

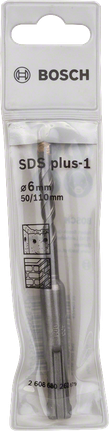

2 608 680 262	6.00	50	110	1 Pcs
2 608 680 263	6.00	100	160	1 Pcs
2 608 680 264	6.00	150	210	1 Pcs
2 608 680 265	6.50	50	110	1 Pcs
2 608 680 266	6.50	100	160	1 Pcs
2 608 680 267	7.00	50	110	1 Pcs
2 608 680 268	7.00	100	160	1 Pcs

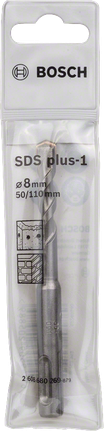

2 608 680 269	8.00	50	110	1 Pcs
2 608 680 270	8.00	100	160	1 Pcs
2 608 680 271	8.00	150	210	1 Pcs
2 608 680 272	8.00	200	260	1 Pcs
2 608 680 273	10.00	100	160	1 Pcs
2 608 680 274	10.00	150	210	1 Pcs
2 608 680 275	10.00	200	260	1 Pcs
2 608 680 276	10.00	400	460	1 Pcs
2 608 680 277	12.00	100	160	1 Pcs
2 608 680 278	12.00	150	210	1 Pcs
2 608 680 279	12.00	200	260	1 Pcs
2 608 680 280	12.00	400	460	1 Pcs
2 608 680 281	14.00	100	160	1 Pcs
2 608 680 282	14.00	150	210	1 Pcs
2 608 680 283	14.00	200	260	1 Pcs
2 608 680 284	14.00	400	460	1 Pcs
2 608 680 285	16.00	150	210	1 Pcs
2 608 680 286	16.00	250	310	1 Pcs
2 608 680 287	16.00	400	460	1 Pcs
2 608 680 288	18.00	200	260	1 Pcs
2 608 680 289	18.00	400	460	1 Pcs
2 608 680 290	20.00	200	260	1 Pcs
2 608 680 291	20.00	400	460	1 Pcs
2 608 680 292	22.00	200	260	1 Pcs
2 608 680 293	22.00	400	460	1 Pcs
2 608 680 294	25.00	200	260	1 Pcs
2 608 680 295	25.00	400	460	1 Pcs
