PRO Punching Die

Your Selected Variant

PRO Punching Die

from

530.00 MYR

Recommended retail price excluding VAT

Long Life punching holes in sheet metal

Bosch PRO spider adapter for power tool accessories.

1

Die with 3 cutting edges prevents jamming
2

High-alloy steel for strength and durability

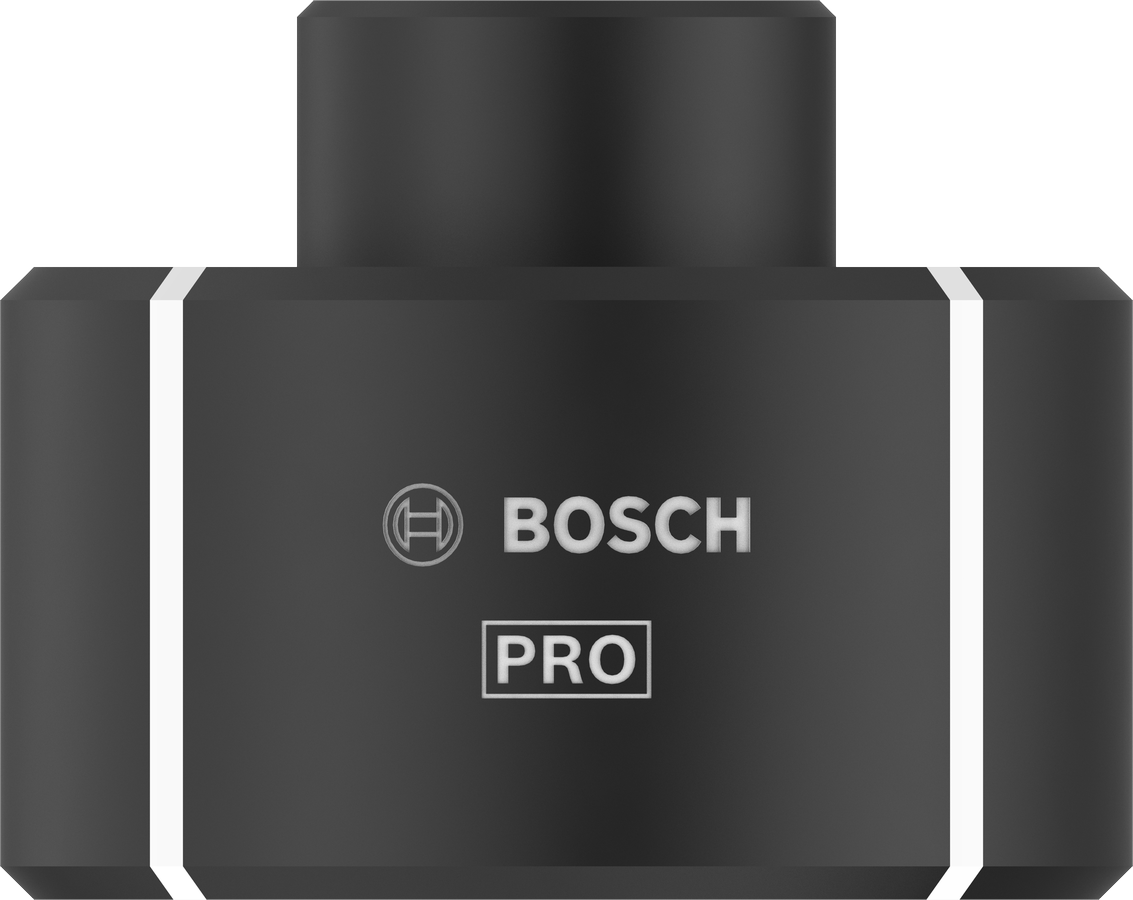

PRO Punching Die for Long Life punching holes in sheet metal

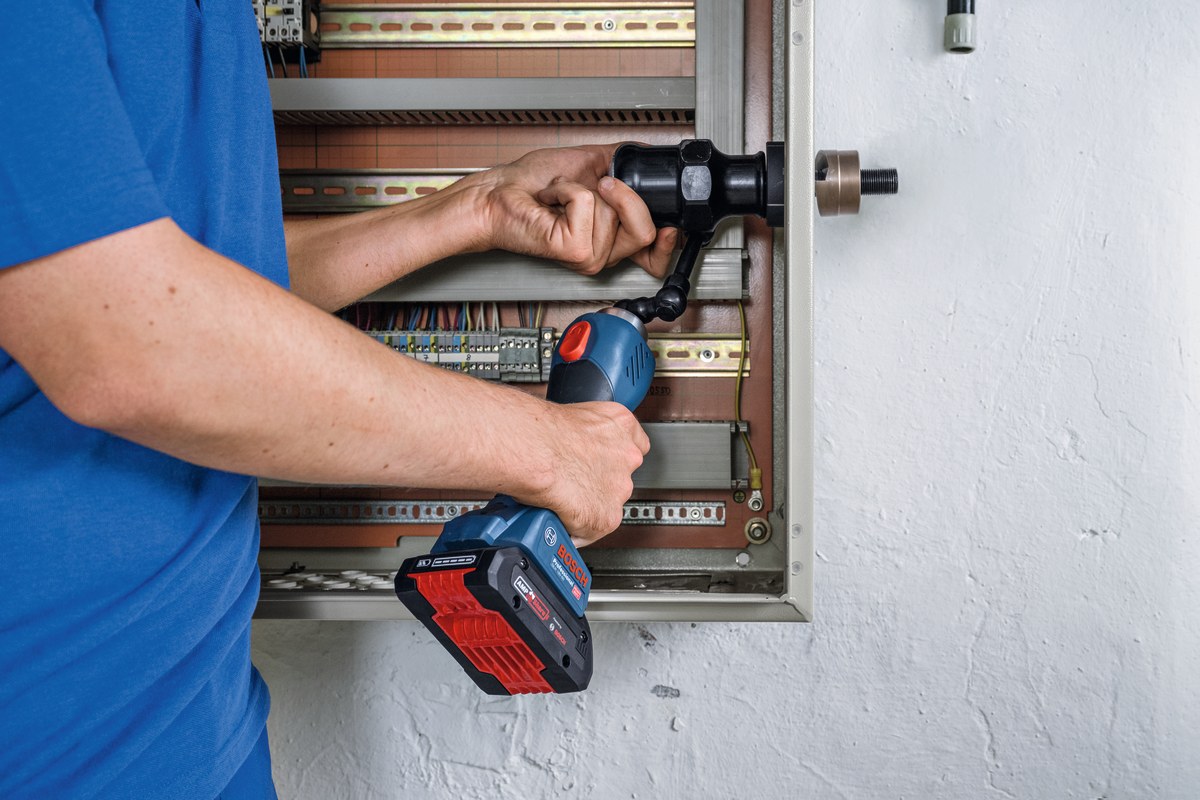

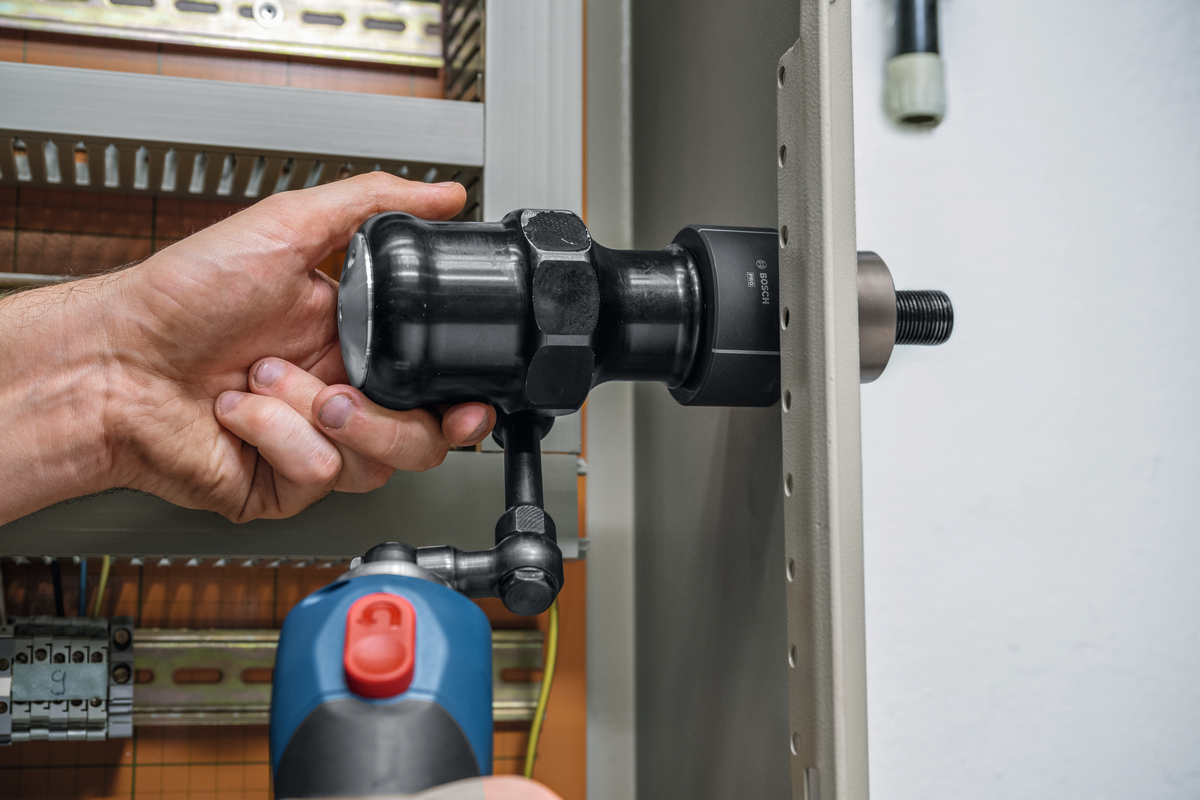

When you install electrical boxes or switch cabinets and use hydraulic knockout tools to punch through sheet metal, a strong and sharp knockout punch helps you get clean holes you need. We made PRO Punching Die for punching clean and accurate holes with ease.

The PRO Punching Die set features a punch with 3 cutting edges that splits the waste material in smaller pieces and prevents jamming. This means you can make perfect, burr-free holes in steel up to 3 mm thick and stainless steel up to 2.5 mm thick faster. The knockout punch and die in sizes between M16-M63 will help you punch holes up to 63.5 mm in diameter. Use sizes PG9-PG36 to punch holes up to 47 mm in diameter.

Product Options

Available product options: 12

Part number	Size	Hole diameter, mm	Thread	Pack quantity	Price	Availability

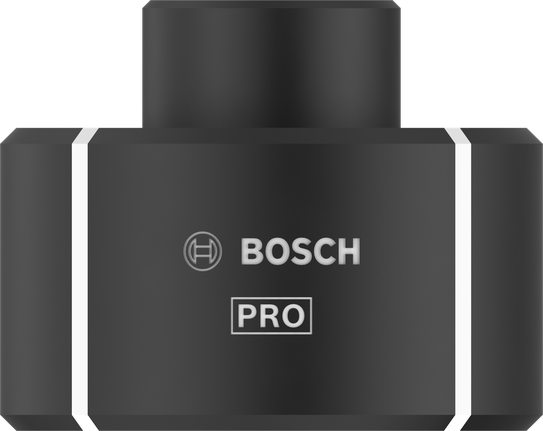

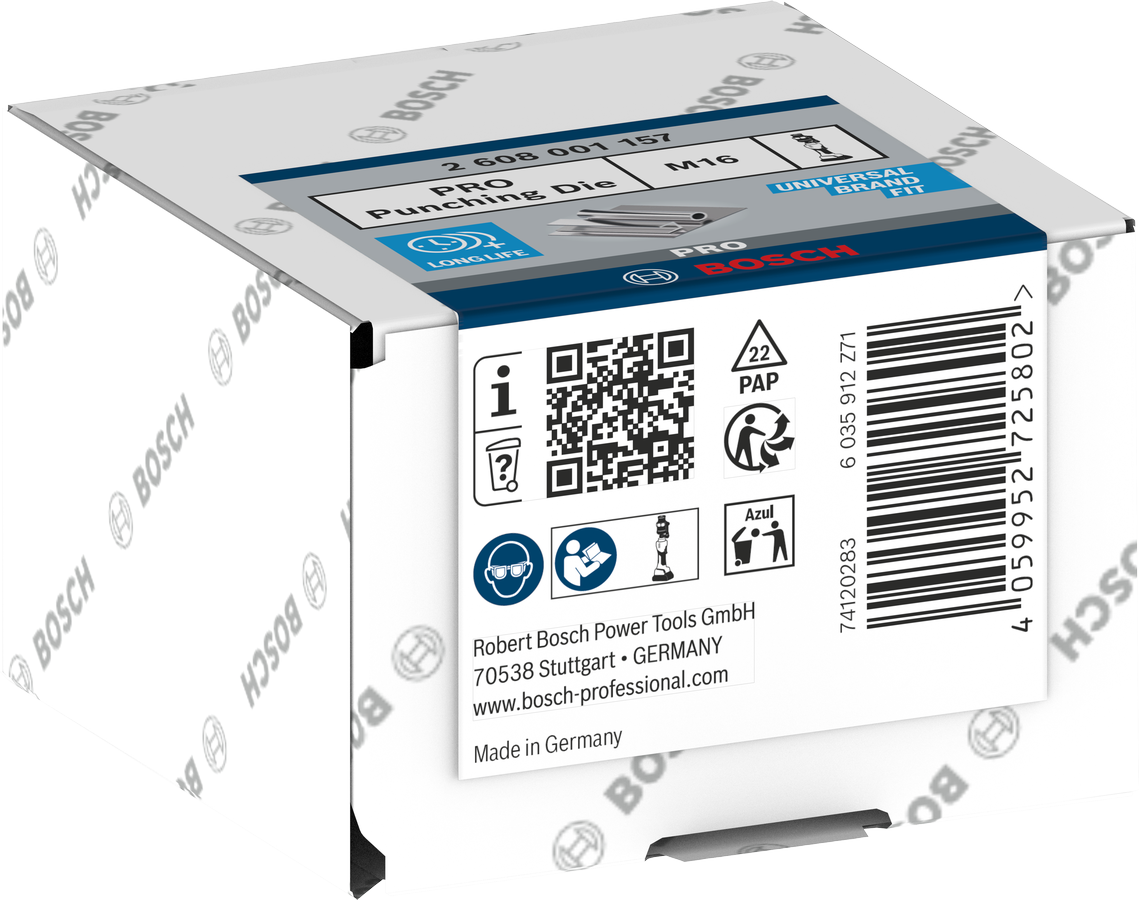

2 608 001 157	M16	16.2	7/16 UNF-2B	1 Pcs	640.00 MYR	Find a local dealer
2 608 001 158	M20	20.4	7/16 UNF-2B	1 Pcs	710.00 MYR	Find a local dealer

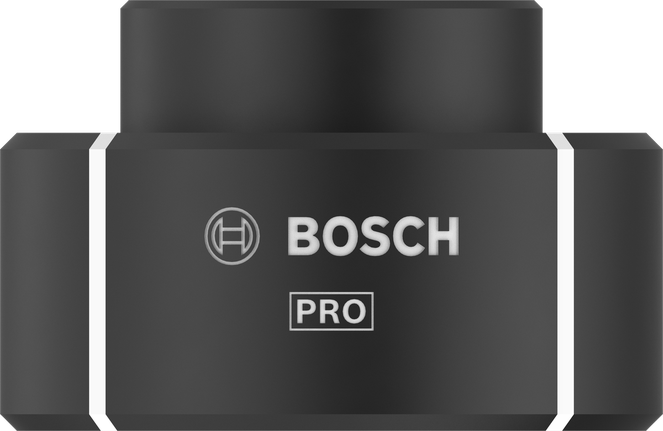

2 608 001 159	M25	25.5	7/16 UNF-2B	1 Pcs	530.00 MYR	Find a local dealer

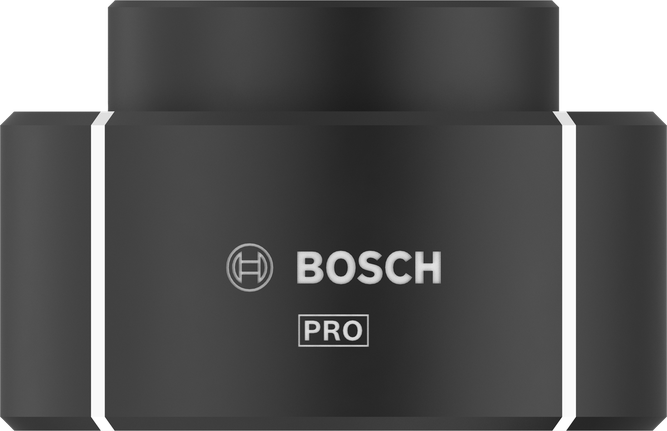

2 608 001 160	M32	32.5	3/4 UNF-2B	1 Pcs	910.00 MYR	Find a local dealer

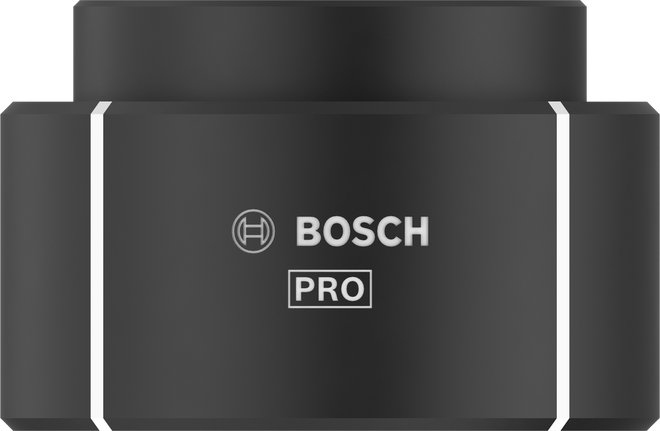

2 608 001 161	M40	40.5	3/4 UNF-2B	1 Pcs	1,184.00 MYR	Find a local dealer

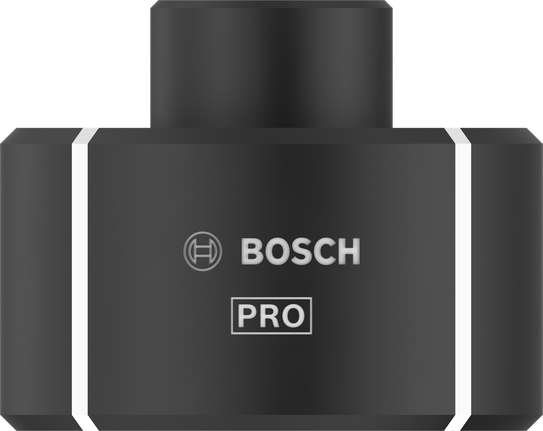

2 608 001 162	PG9	15.2	7/16 UNF-2B	1 Pcs	620.00 MYR	Find a local dealer

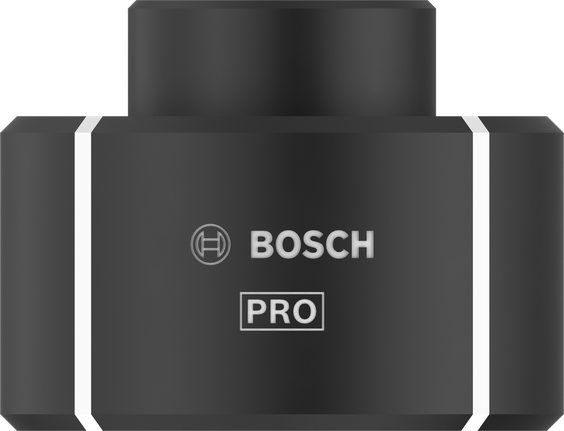

2 608 001 163	PG11	18.6	7/16 UNF-2B	1 Pcs	660.00 MYR	Find a local dealer

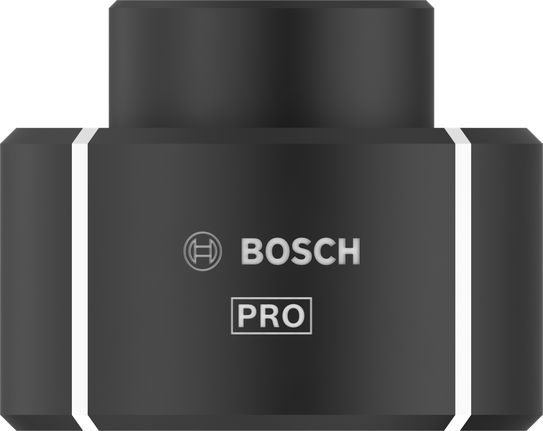

2 608 001 164	PG13	20.4	7/16 UNF-2B	1 Pcs	716.00 MYR	Find a local dealer

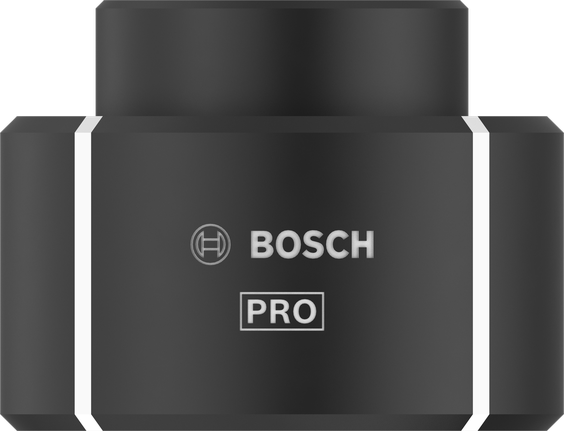

2 608 001 165	PG16	22.5	7/16 UNF-2B	1 Pcs	740.00 MYR	Find a local dealer

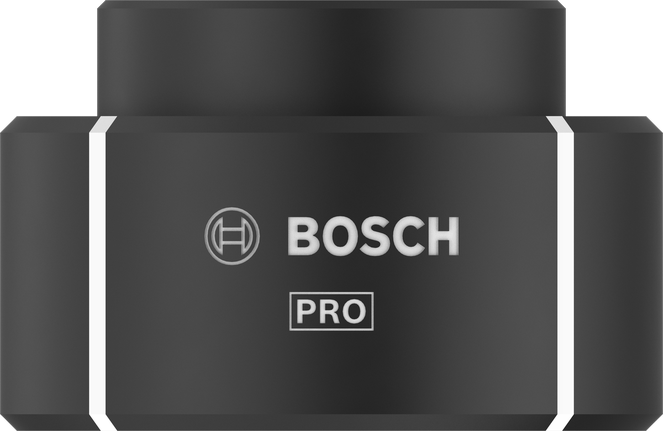

2 608 001 166	PG21	28.3	3/4 UNF-2B	1 Pcs	840.00 MYR	Find a local dealer

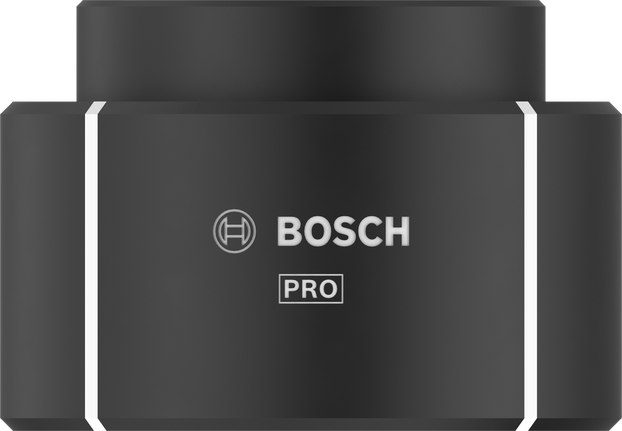

2 608 001 167	PG29	37.0	3/4 UNF-2B	1 Pcs	1,054.00 MYR	Find a local dealer

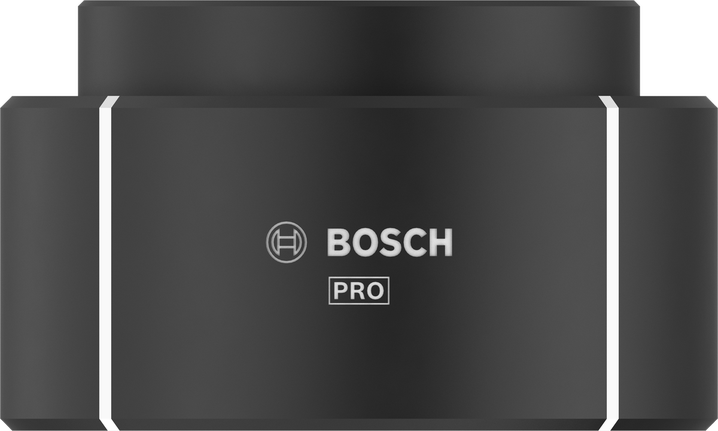

2 608 001 168	PG36	47.0	3/4 UNF-2B	1 Pcs	1,394.00 MYR	Find a local dealer
